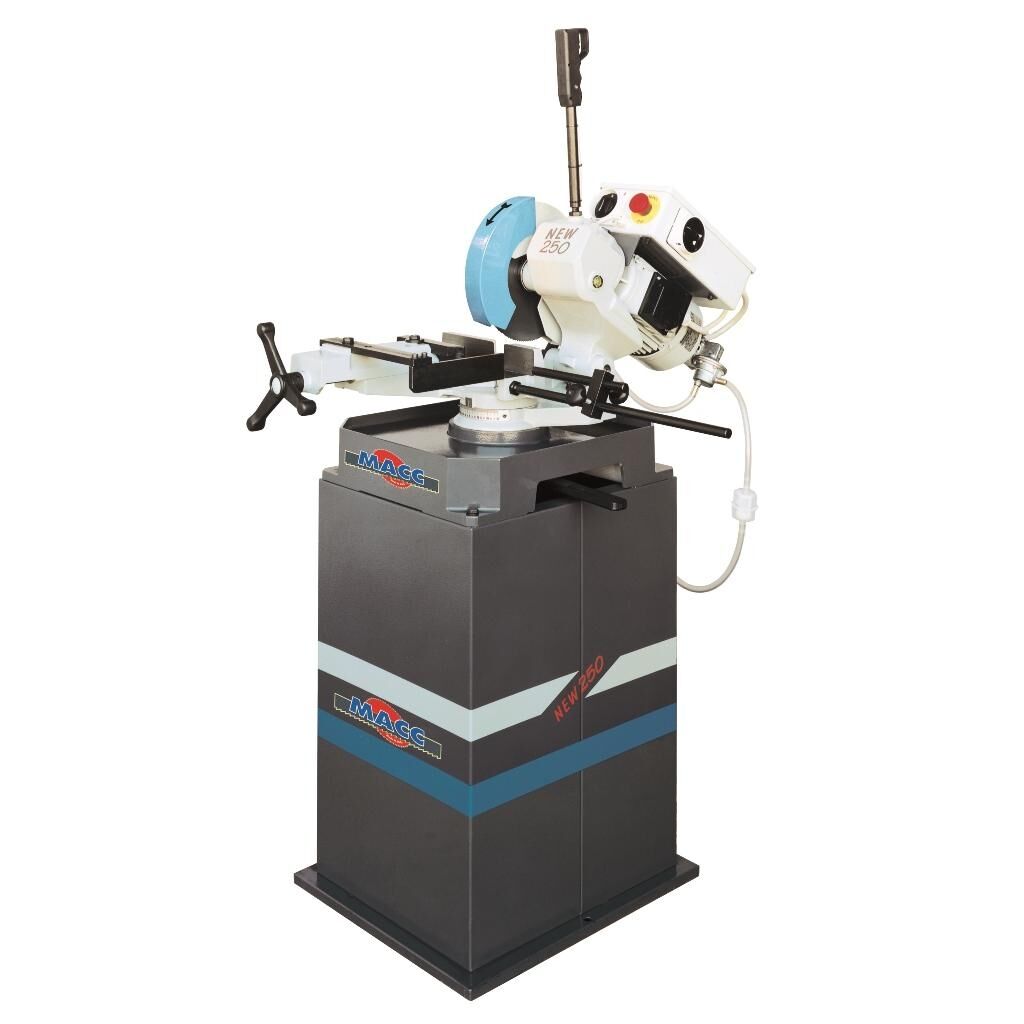

Cutting-off machine for metal profiles and solid bars (round, square and rectangular), with capacity of vertical (0º) as well as angle (from -45º up to +45º) cutting
NEW 250
TECHNICAL SPECIFICATIONS
CUTTING CAPACITIES
0º -45º +45º
ROUND profile 70 65 65 (mm)
ROUND SOLID/BAR 40 35 35 (mm)
SQUARE profile 70 60 60 (mm)
RECTANGULAR profile 55×95 55×65 55×65 (mm)
TECHNICAL FEATURES
– Motor power 400V / 50Hz / 1,32 KW
– Cutting-off Disc diameter (mm) 250
– Two (2) different Disc speeds (rpm) 40 / 80
– Vice opening (mm) 100
– Machine dimensions (mm) 800 x 830 x 755
– Machine weight (Kg) 91
STANDARD MACHINE FEATURES
– Movable cutting head with the capacity of rotation from -45º up to +45º
– Coolant membrane pump and coolant filter
– Reduction unit oil bath
– Vice complete with anti-burr device
– Material / Bar stopper
– Service tools, instruction manual and spare parts list
ADVANTAGES
The model NEW 250, is a cutting-off machine which combines the high quality standards in construction with the reliability and high cutting performances
Single-phase motor or in alternative Three-phase motor
It can be combined with entrance roller conveyor and exit roller conveyor with measurement device and as a result the production time / production cost is reduced with a significant increased speed and productivity
OPTIONAL EQUIPMENT
Single-phase motor 230V / 50Hz / 0,95 KW / blade speed 40 rpm
Steel pedestal
ROLLERWAY TYPE RD
– Adjustable height loading/unloading roller conveyor for band-saws
– Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
– Each roller conveyor is made up of a surface composed of rollers and a support leg
EXIT ROLLERWAY TYPE RDO
– Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)
– Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
– Each roller conveyor is made up of a surface composed of rollers and a support leg
