VGX 21

Code: MIR02
Brand: MIRA MINELLI

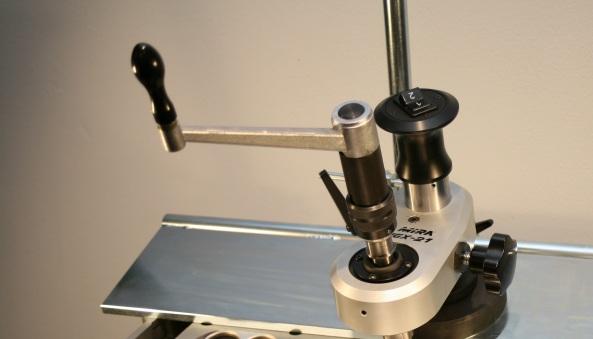

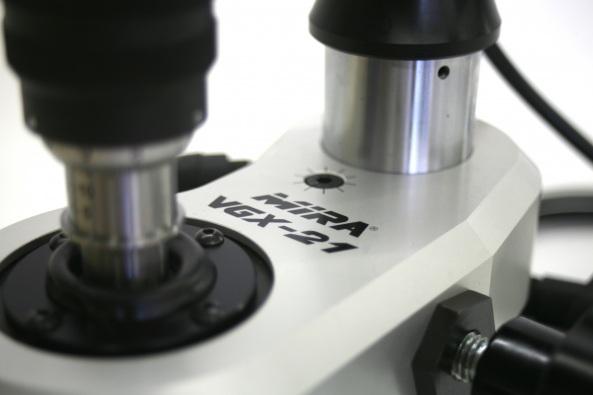

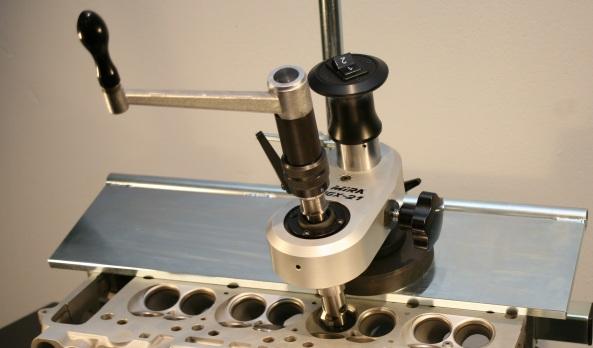

VGX-21 - With Fast Changeable Toolhead System

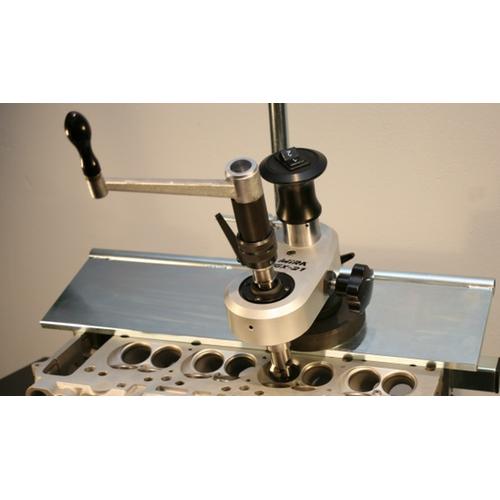

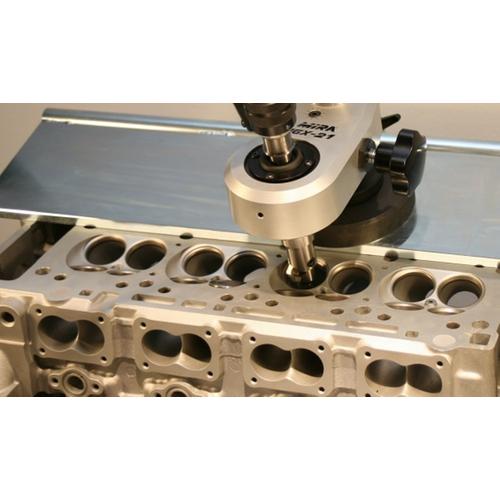

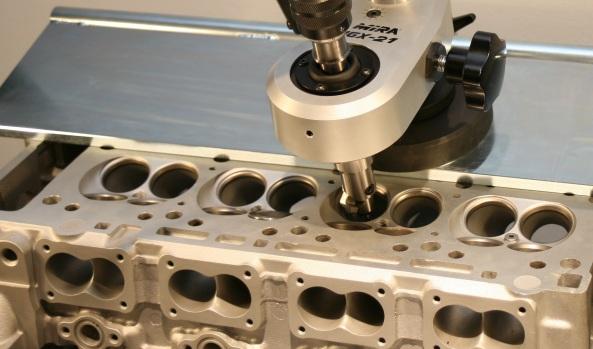

The VGX-21 valve seat refacing unit has been developed for the specialised petrol and diesel cylinderhead workshop. The highly accurate valve seat processing is achieved by a new spherical spindle guide bearing as well as a unique hydraulic ball clamping system. A almost pressure free centering and braceless fixing of the MIRA rotary head is made possible in order to achieve precise and concentric valve seats.

Brochure

  • Valve stem diameter 4 - 16mm
  • Valve seat diameter 16 - 75mm
  • Seat ring couterbores 21 - 75 mm

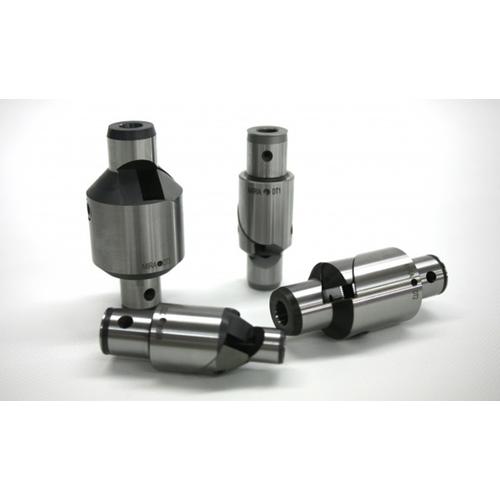

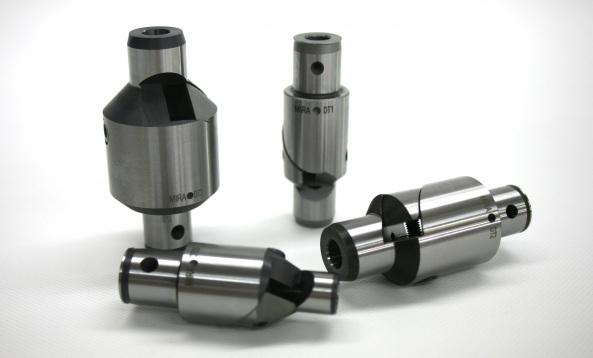

  • DT05 toolhead for 16 - 25 mm seat diameters
  • DT2 toolhead for 37 - 55mm seat diameters
  • DT3 toolhead for 35 - 75mm seat diameters
  • DSD double edged toolhead for 26 - 36mm
  • DSD double edged toolhead for 35 - 45mm
  • DSD double edged toolhead for 45 - 55mm
  • DSD double edged toolhead for 55 - 75mm
  • Adjusting Micrometer EM25 - 75

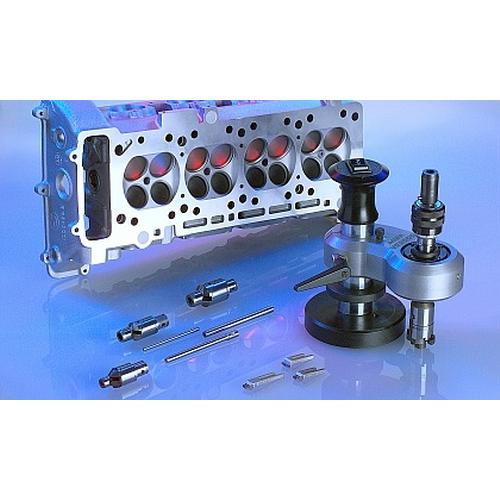

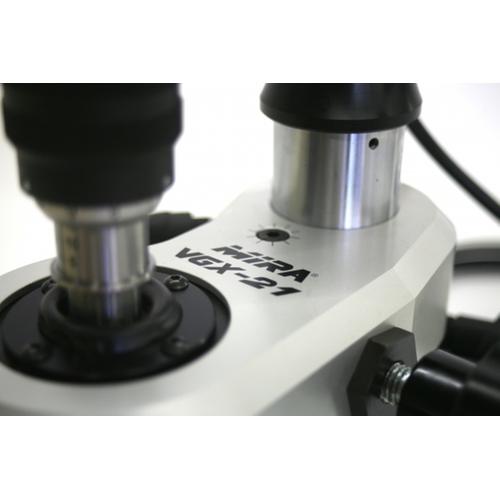

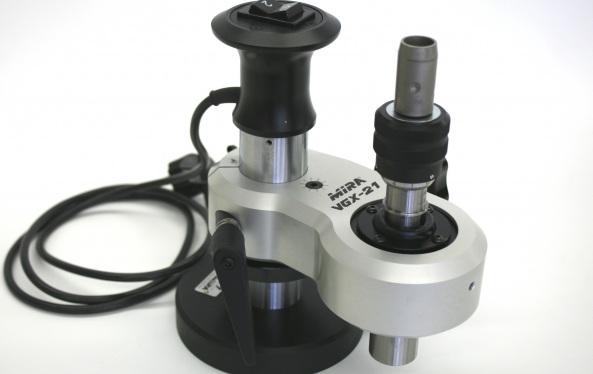

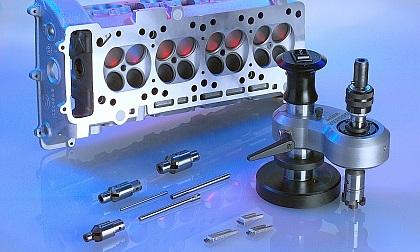

  • VGX-21 Valve Seat Refacing Unit
  • DT1 Toolhead for 21-45mm Diameters
  • FD Type Pilots (Standard selection)
  • SK Type Formtools (Standard selection)
  • AV Basic Cylinderhead Support for Wall mounting
  • Service Tooling and Equipment

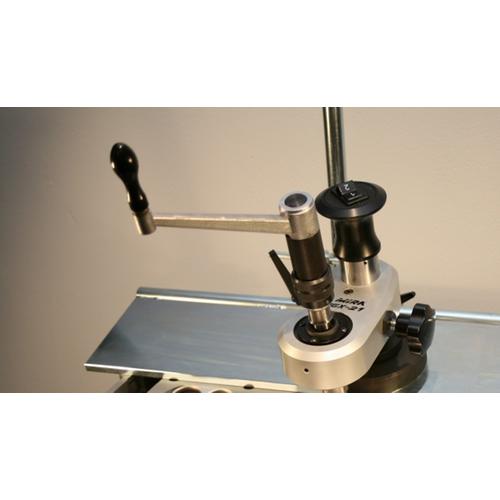

  • Manual Crank-Handle
  • Instruction Manual and Formtool Catalog
  • Storage Box (Wood)
