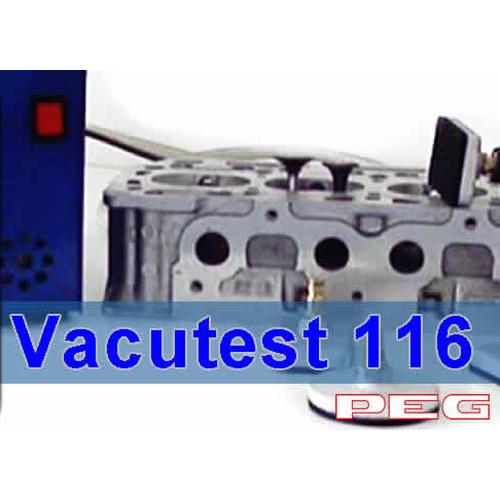

VACUTEST 116

Code: PEG13
Brand: PEG - ROSSI & KRAMER

AN INSTRUMENT FOR TESTING SEALING CONDITIONS BETWEEN VALVES AND VALVA SEATS IN CYLINDER HEADS OF COMBUSTION ENGINES

VACUTEST 116 makes it possible to carry out reliable, exact, time-saving sealing tests :

  • On complete disassembled cylinder heads
  • After re-conditioning valve seats, before re-assembling the cylinder head
  • For testing sealing in combustion chambers
Intake volume 11.6 l/min
Maximum vacuum -800 mbar
Elettric power 220 V - 50 Hz
Dimensions 330x160x200 mm
Weight 10 Kg
  • Diaphragm vacuum pump with overload protection
  • Manometer
  • Filter
  • Suction hose with rapid coupling
  • Suction adapters 50x80 mm and Ø 45 mm
  • Suction adapters of different dimensions (on request)
  • A specially designed VACUTEST instrument is available for heavy engine cylinder heads (specify on ordering).

VACUTEST 116 does not require special maintenance.However, after a long period of use, the suction filter should be examined and cleaned (A dirty filter will cause the gauge to register a vacuum even when it is on but not m operation).

Remove the back cover of the housing and the filter glass, unscrew the filter and clean it.

When suction capacity diminishes, check the diaphragm pump by sealing it directly (vacuum -800 mbar).

Also inspect the suction hose and rapid coupling, as well as the packing motenal of the adapter.
