TIPO B

Code: FIC13
Brand: FICEP

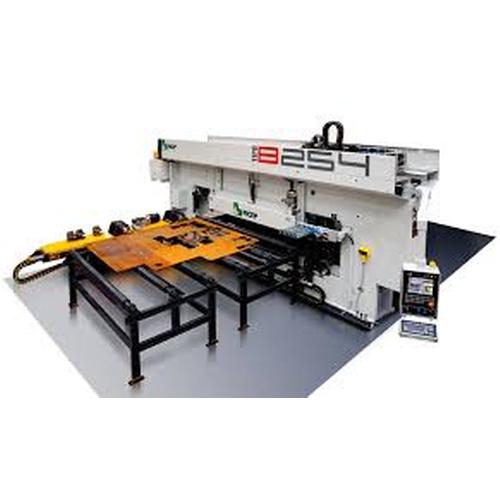

TIPO B System is the most innovative solution for the fabrication of plates :  a CNC punching, drilling and thermal cutting line which integrates all the typical functions normally required in plates fabrication.

The ability to start with row material and end with the finished part including such operations as drilling, milling, punching, marking, scribing and cutting the part to the desired size and shape is what makes the TIPO B truly unique.

TECHNICAL MACHINE FEATURES


Infeed and Outfeed rollerways, that can be extended in order to fit the required plate length and are pre-arranged to receive Cross Transfer Tables (Loading / Unloading)

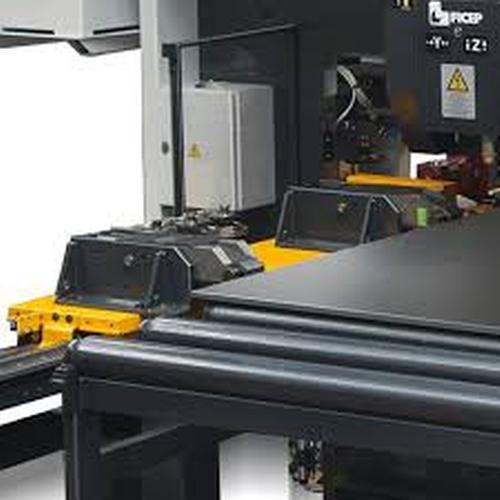

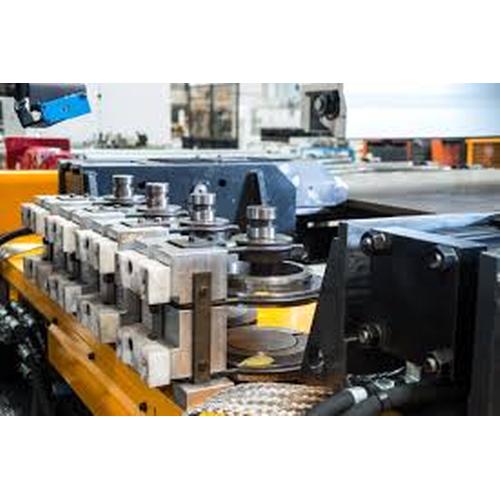

The plate is positioned by lateral powered grippers having a very precise linear rack and pinion device, that positions the plate to precise tolerance and measures its actual location

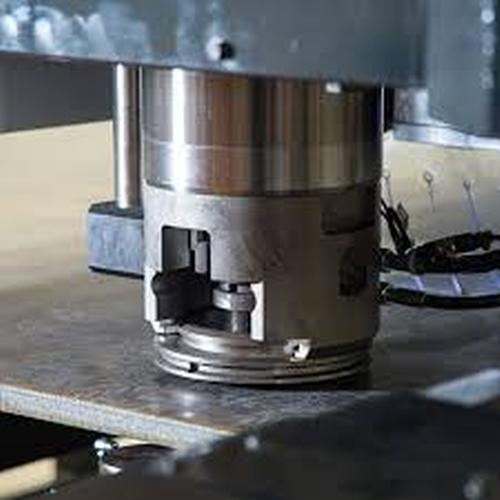

The punching unit, complete with four (4) positions Automatic Tool Changer, consists of an hydraulic cylinder designed to integrate the hydraulic clamping of punch and co-axial stripper

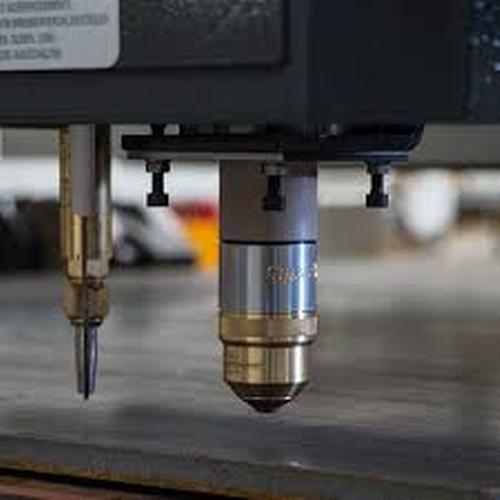

The machine is equipped with one OXY cutting torch with possibility to have a second torch to cover all manufacturing needs

One or two High-Definition plasma torches, HYPERTHERM XPR 300 or  HPR 400 XD, to satisfy all cutting requirements in accuracy, quality and speed

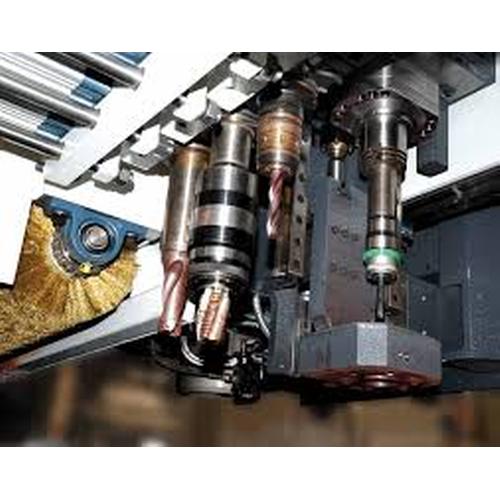

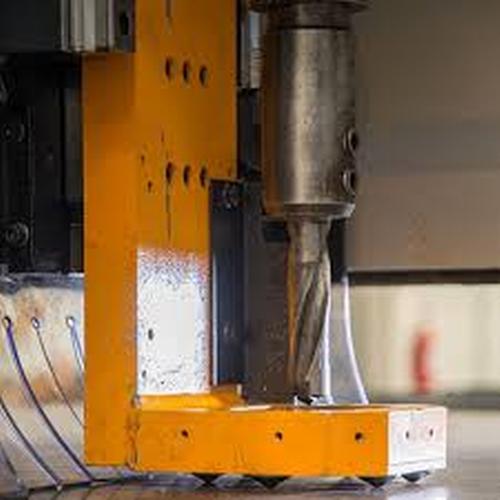

TIPO B series are equipped with a high speed drilling spindle allowing extremely productive drilling of holes. The Drilling Unit  can be supplied with Automatic Tool Change System having  4  positions for tools and managed by the CNC, performing drilling, tapping, milling and scribing operations

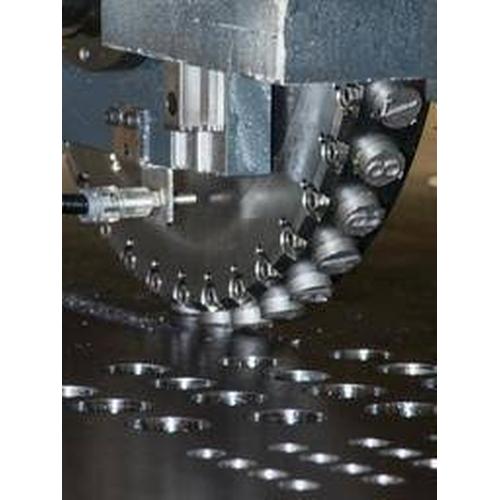

Marking unit, with rotating disc of marking characters

SCRIBING operations are available for identification marks or part numbers, fabrication and bending lines, center location for positioning and welding, deeper marking viewable after painting / galvanizing

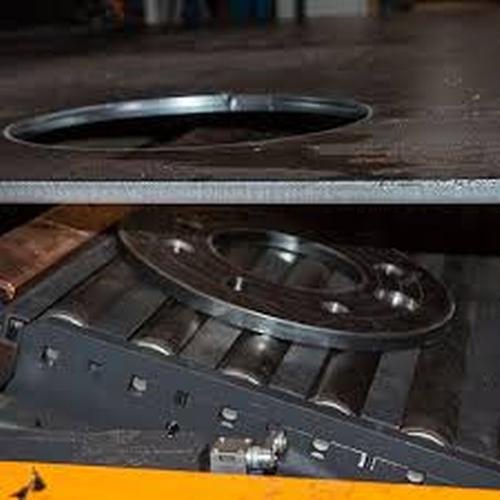

A special tilting device (trap door) can be supplied to unload finished parts with maximum size 500x500 mm

The Exhaust System filters the fume generated by thermal cutting operations. The air is cleaned according to the latest Health and Safety requirements.


AUTOMATIC CNC PUNCHING AND THERMAL CUTTING SYSTEM FOR PLATES – TIPO BTIPO B164TIPO B254

Plate size [max mm]

 1600x3000 2540x6000

Punching force [kN]

 1000 1000

Punching tools [no]

 4 4

Punching diameter [max mm]

 32 32

Punching thickness [max mm]

 25 25

Drilling heads [max no.]

 1 1

Drilling tools per head [max no.]

 4 4

Drilling diameter [max mm]

 40 40

Drilling thickness [max mm]

 100 100

Spindle power [kW]

 20,1 20,1

Max. spindle RPM

 4000 4000

Plasma torches [max no.]

 2 2

Oxy-fuel torches [max no.]

 2 2

Machine weight [kg]

 8000 24000

PUNCHING

DRILLING

THERMAL CUTTING WITH OXYGEN

THERMAL CUTTING WITH PLASMA

TAPPING

COUNTERSINKING

MARKING

SCRIBING

Integration of multiple operations within one CNC work cell

Extremely High Drilling performances in accuracy (due to the ball screw spindle feed) as well as in speed (due to the ability to utilize Carbide Tools

One rack and pinion measuring system for all processings guarantees accuracy between operations

Powerful and Advanced Nesting Software for material and processing optimization

Reduced overall dimensions and easy material handling

Unloading the finished parts while the system is processing

Remote diagnosis is possible through a network connection that allows FICEP service team to perform checks and resolve possible problems that can appear

BROCHURE
