CUTTING CAPACITIES
0º -45º -60º +45º +60º
ROUND profile 460 450 240 450 300 (mm)
SOLID ROUND profile 200 200 200 200 200 (mm)
SQUARE profile 450 430 300 410 300 (mm)
RECTANGULAR profile 450x620 400x450 220x320 340x450 270x420 (mm)
-
TECHNICAL DATA
- Continuous speed regulation (m/1') 23 / 95
- Vice opening (mm) 620
- Machine dimensions (mm) 3050 x 1890 x 2500
- Machine weight (Kg) 1250
STANDARD MACHINE FEATURES
- High-capacity band control by motor with inverter and special reducer with bronze gear tempered and ground worm screw
- Appropriately dimensioned flywheels
- Bandsaw Blade dimensions (mm) 5270 x 34 x 1,1
- Strong blade guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation

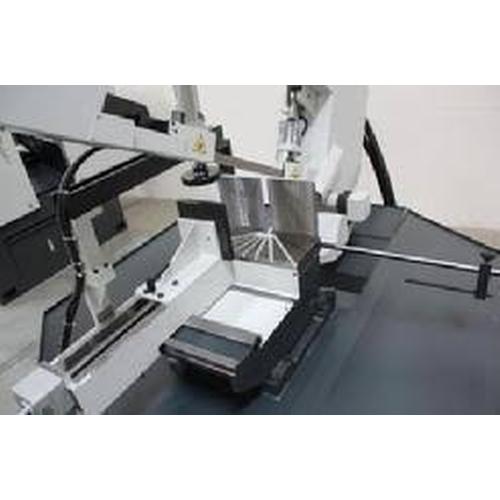

- Blade cleaning device with brush

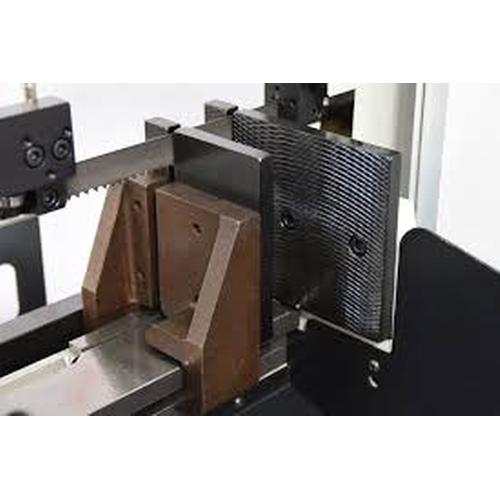

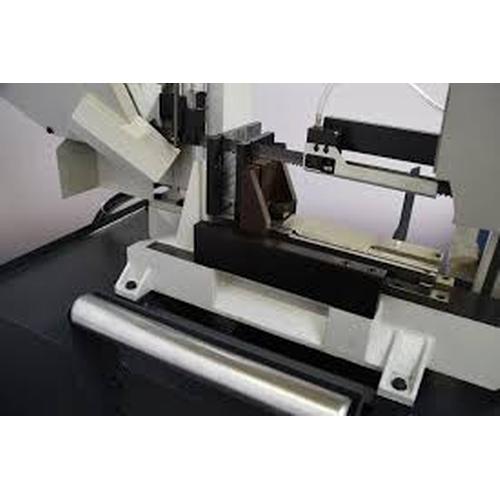

- Clamping Vice with jaws height 250 mm and length 200 mm
- Accident-preventing devices on the flywheels casing and on the blade

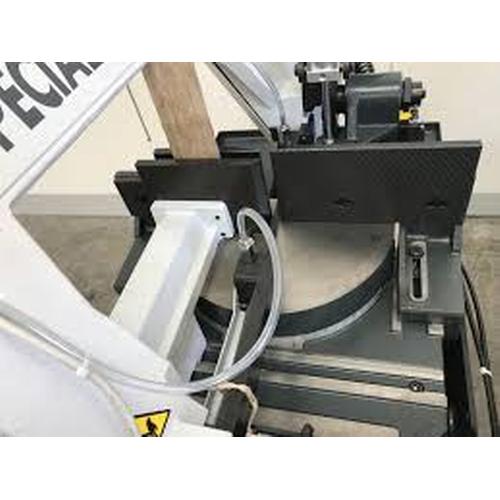

- Capability of Mitre cutting up to -60º (left side) and up to +60º (right side)
- Adjustable stop for cuts of the same size
- 24V low tension plant
- Band Cooling System, with 0,09 kW power-driven pump

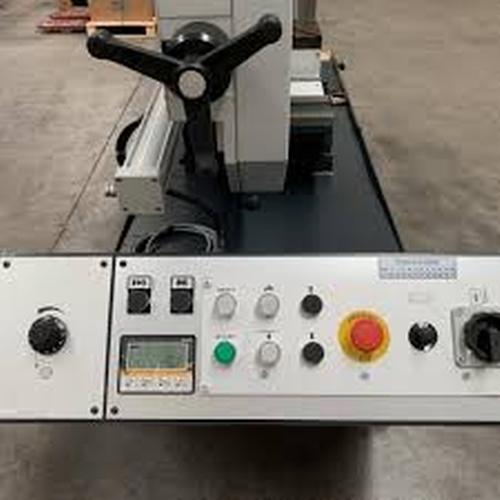

MACHINE OPERATION / CUTTING CYCLE
Cycle start is obtained by pressing the relevant start button. The machine performs the following operations during the cutting cycle:
1. vice closing and activation of band motor
2. cutting bow downstroke
3.return of bow to initial position
4.band motor stop
5. vice opening
The machine provides the possibility of manual cut

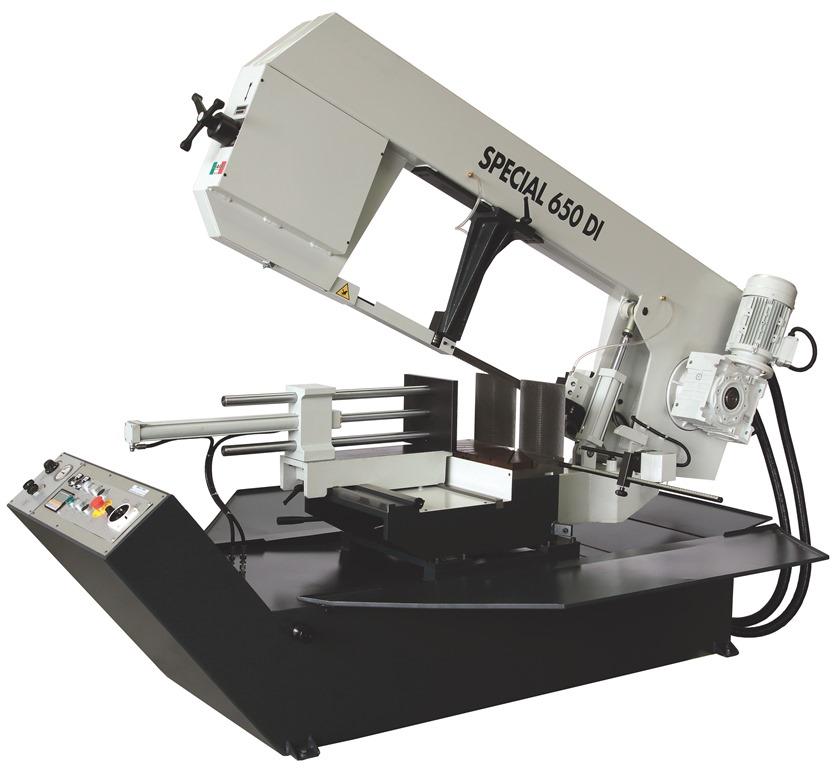

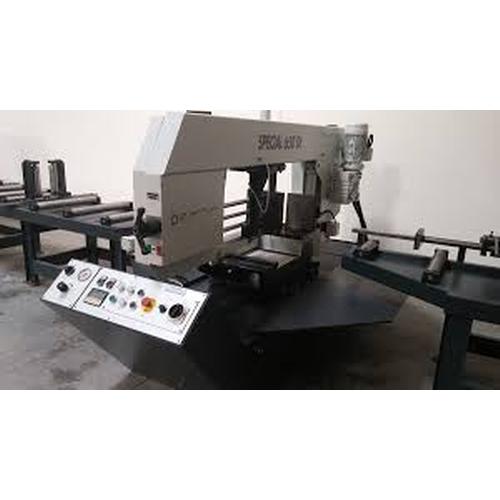

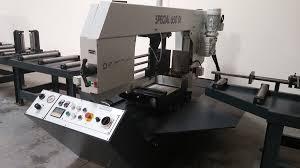

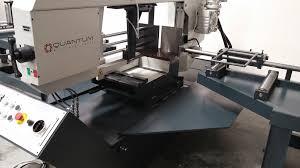

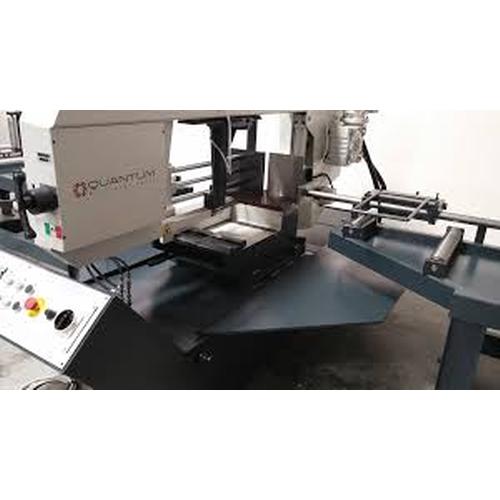

The model SPECIAL 650 DI, is a semi-automatic machine and it is an economic and reliable solution for the cutting of metal profiles
Capability of straight cut (0º) as well as mitre cutting up to -60º (left side) and up to +60º (Right side)
Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching
High level accuracy in cutting
Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade
Easy to use : Practical, simple and ergonomic operations
Fast cutting operations
- Hydraulic vertical pressing device for pack/bandle cutting
- Microlubrication System
- Additional clamping vice

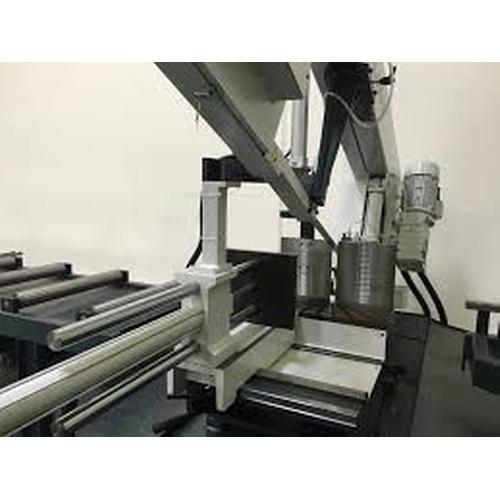

- Vertical vice
- Laser for the saw cut
- Couple of vertical clamping rollers (RVF fixed roller + RVM movable roller) in entrance side

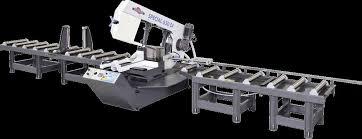

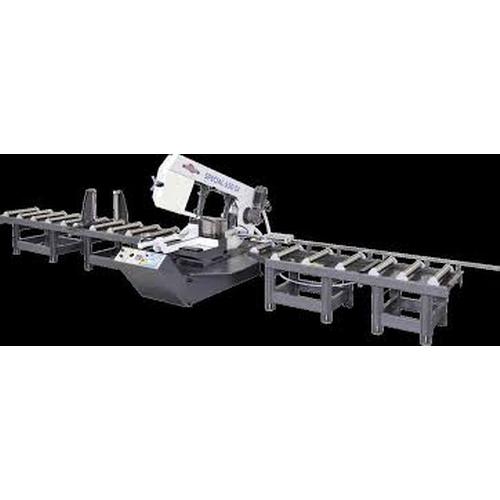

ENTRANCE ROLLERWAY
- RPF Roller conveyor 2000 x 600 mm
- RPI Roller conveyor 2000 x 600 mm, with lifting rollers
EXIT ROLLERWAY
- RPASM Angular Roller conveyor 2000 x 600 mm, with measurement device
- RPFSM Roller conveyor 2000 x 600 mm, with measurement device
