CUTTING CAPACITIES

                                                               0º                -45º           -60º           +45º            +60º

ROUND profile                                   400                400            260            400             280       (mm)

SOLID ROUND profile                       150                150            150            150             150       (mm)

SQUARE profile                                 400                380            260            380             280       (mm)

RECTANGULAR profile                400x550        300x410    400x230     300x420    400x280    (mm)

• TECHNICAL DATA

  - Continuous speed regulation     (m/1')              22 / 73

  - Vice opening     (mm)                560

  - Machine dimensions     (mm)              2830 x 1725 x 2275

  - Machine weight      (Kg)             820

STANDARD MACHINE FEATURES

- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw

- Appropriately dimensioned flywheels

- Bandsaw Blade dimensions  (mm)         4610 x 34 x 1,1

- Strong blade guides with tight stress-raiser bearings and adjustable widia tips

- Band stretching is obtained by electro-mechanical blade tensioner with microswitch for blade rotation

- Blade cleaning device with brush

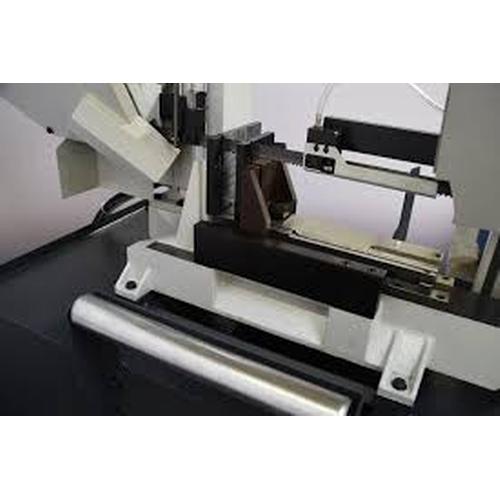

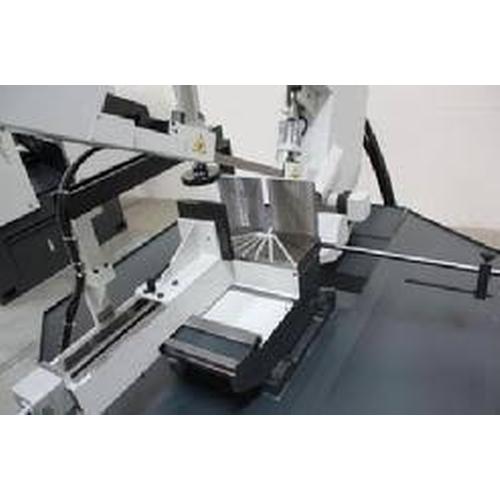

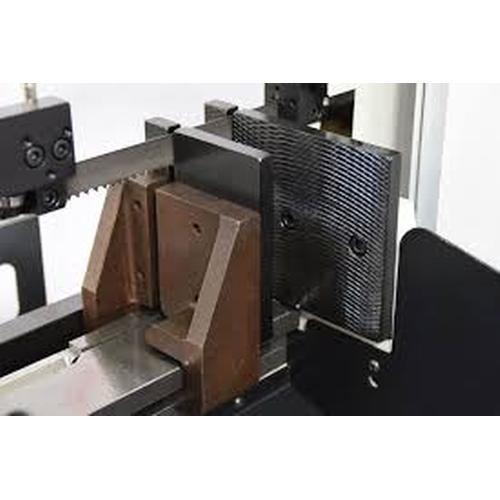

- Clamping Vice with jaws height 200 mm and length 185 mm

- Accident-preventing devices on the flywheels casing and on the blade

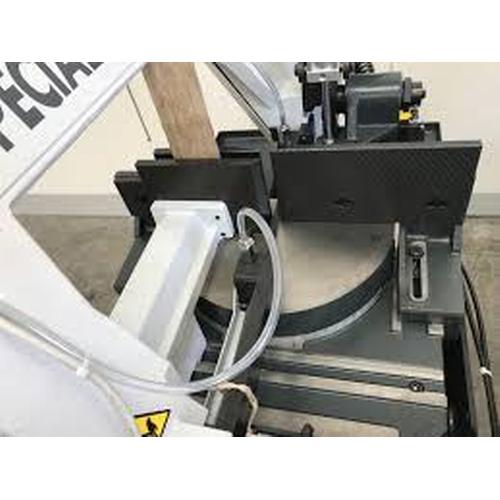

- Capability of Mitre cutting up to  -60º (left side) and up to  +60º (right side)

- Adjustable stop for cuts of the same size

- 24V low tension plant

- Band Cooling System, with 0,09 kW power-driven pump

MACHINE OPERATION / CUTTING CYCLE

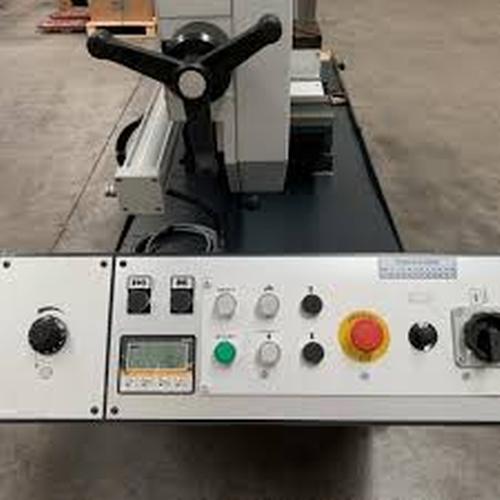

Cycle start is obtained by pressing the relevant start button. The machine performs the following operations during the cutting cycle:

1. vice closing and activation of band motor

2. cutting bow downstroke

3.return of bow to initial position

4.band motor stop

5. vice opening

The machine provides the possibility of manual cut

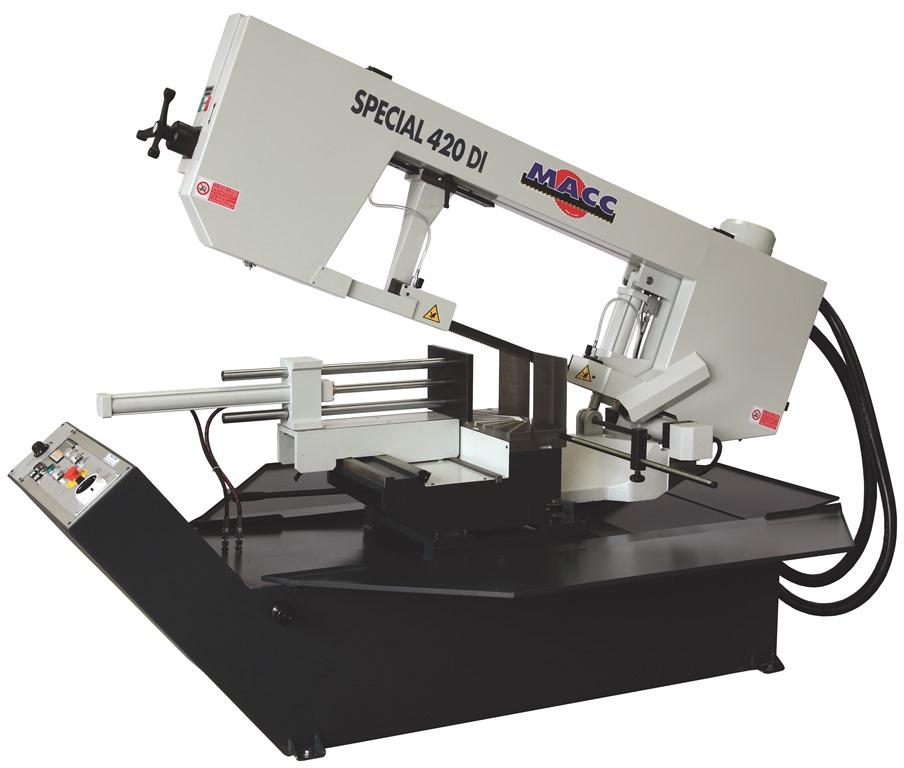

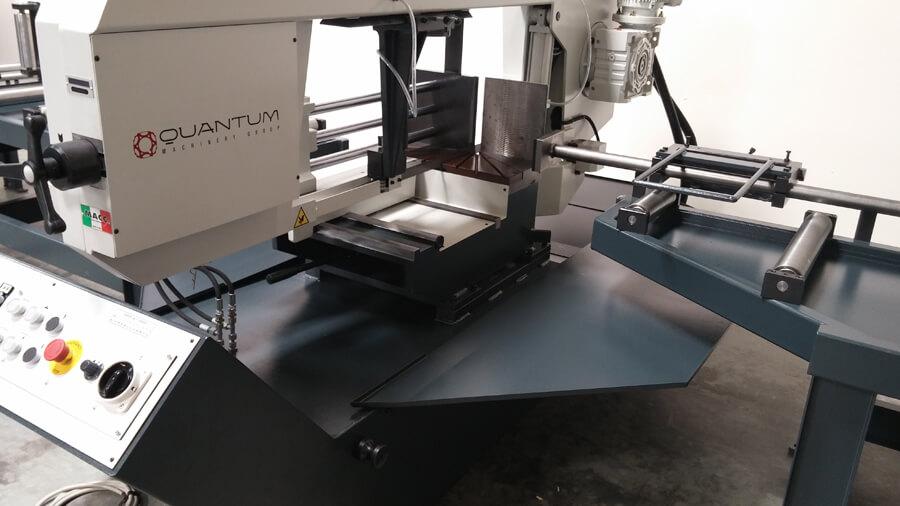

The model SPECIAL 420 DI, is a semi-automatic machine and it is an economic and reliable solution for the cutting of metal profiles

Capability of straight cut (0º) as well as mitre cutting up to  -60º (left side) and up to  +60º (Right side)

Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching

Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations

- Microlubrication System

- Additional clamping vice

- Vertical vice

- Laser for the saw cut

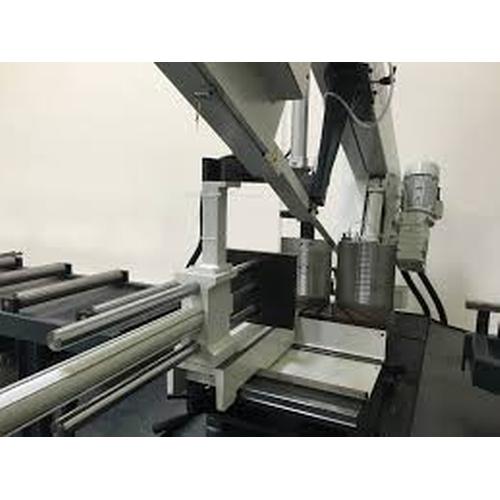

- Couple of vertical clamping rollers (RVF fixed roller + RVM movable roller) in entrance side

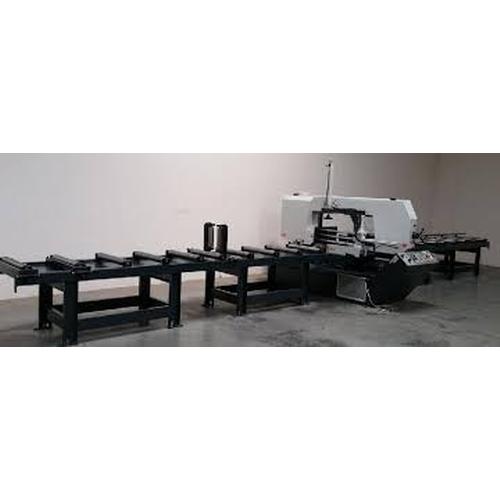

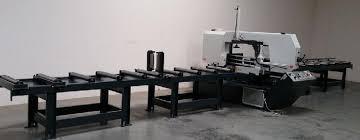

ENTRANCE ROLLERWAY

- RPF Roller conveyor 2000 x 600 mm

- RPI  Roller conveyor 2000 x 600 mm, with lifting rollers

EXIT ROLLERWAY

- RPASM Angular Roller conveyor 2000 x 600 mm, with measurement device

- RPFSM  Roller conveyor 2000 x 600 mm, with measurement device
