CUTTING CAPACITIES

                                                               0º                    -45º                    +45º                    +60º

ROUND profile                                   300                    180                      240                     140       (mm)

SQUARE profile                                 280                    160                      220                     140       (mm)

RECTANGULAR profile                200x400            110x180              130x240             140x140    (mm)

• TECHNICAL DATA

  - Blade rotation speed     (m/1')              38 / 77

  - Vice opening     (mm)                400

  - Machine dimensions     (mm)              1975 x 1320 x 2005

  - Machine weight      (Kg)             575

STANDARD MACHINE FEATURES

- Vertical rotation on bolt with adjustable tapered bearings without backlash

- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw

- Appropriately dimensioned flywheels

- Bandsaw Blade dimensions  (mm)         3200 x 27 x 0,9

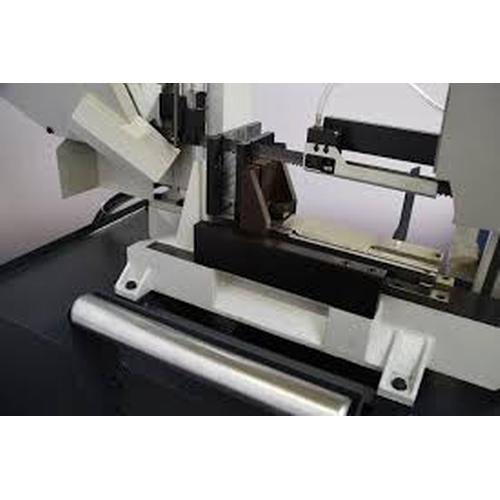

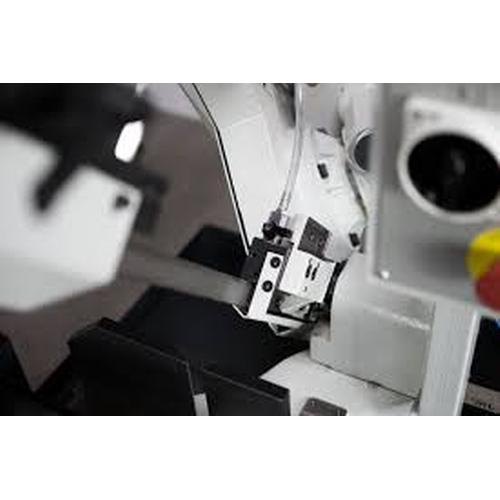

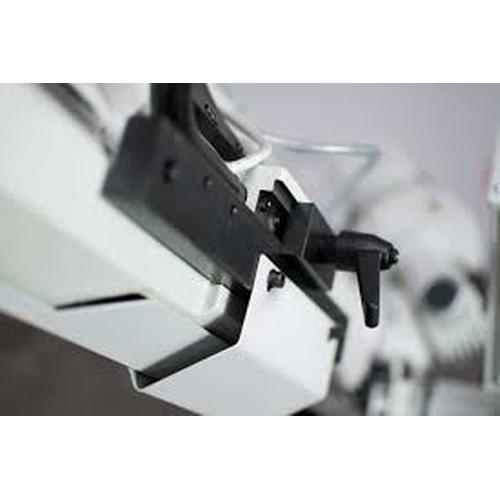

- Strong band guides with tight stress-raiser bearings and adjustable widia tips

- Band stretching is obtained by electro-mechanical blade tensioner with microswitch

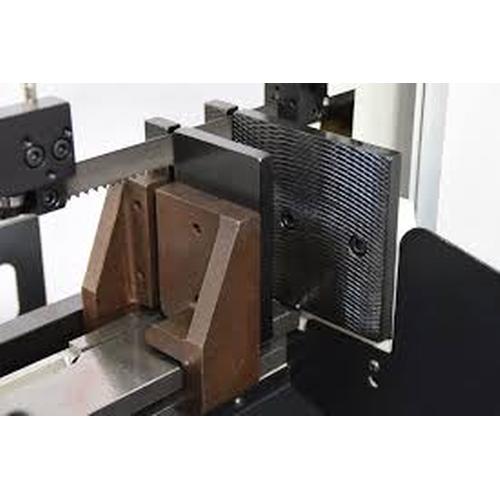

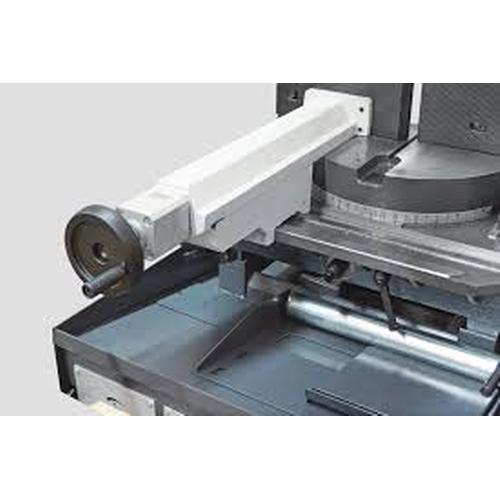

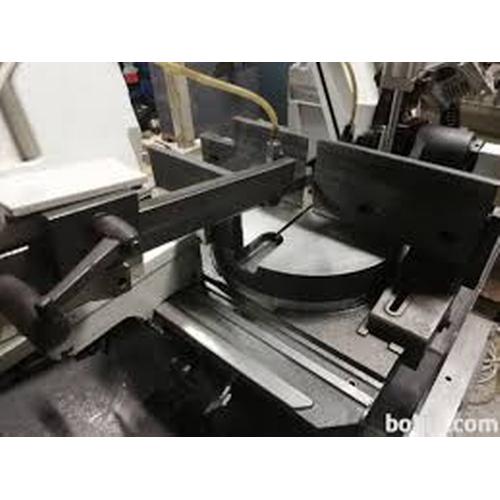

- Vice with a device for quick approach

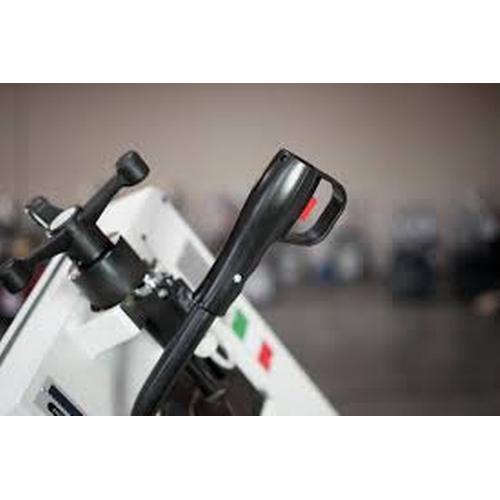

- Accident-preventing devices on the flywheels casing, on the control handle and on the blade

- Removable chip collection tray

- Capability of Mitre cutting up to  -45º (left side) and up to  +60º (right side)

- Adjustable stop for cuts of the same size

- 24V low tension plant

- Band Cooling System, with 0,06 kW power-driven pump

MACHINE OPERATION / CUTTING CYCLE

Cycle start is obtained by pressing the relevant start button. The machine performs the following operations during the cutting cycle:

1. vice closing and activation of band motor

2. cutting bow downstroke

3.return of bow to initial position

4.band motor stop

5. vice opening

The machine provides the possibility of manual cut

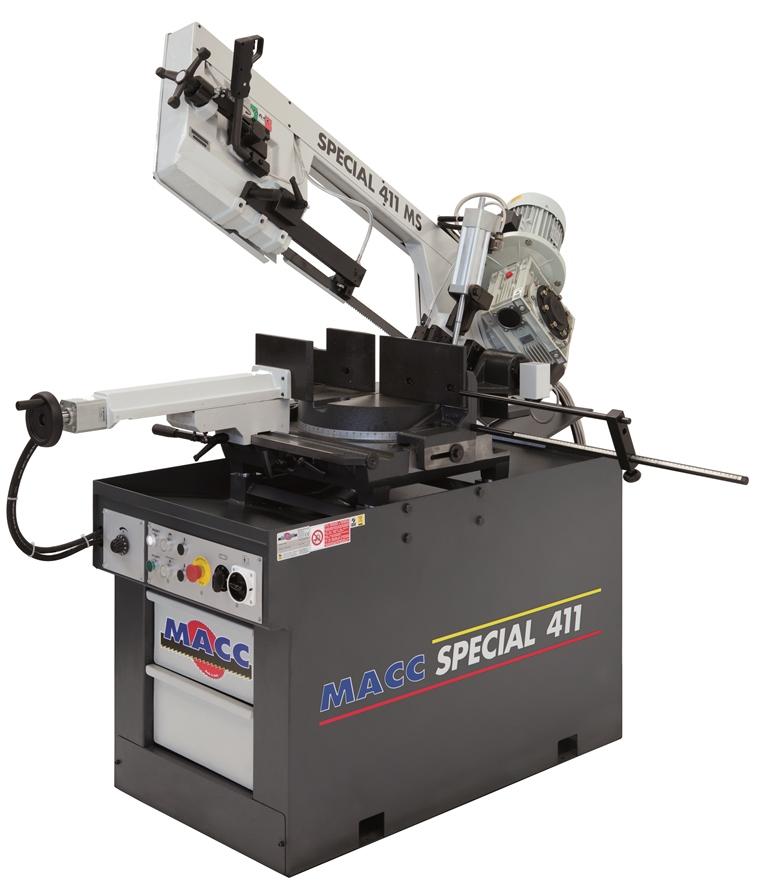

The model SPECIAL 411 Μ/S, is a semi-automatic machine and it is an economic and reliable solution for the cutting of metal profiles

Capability of straight cut (0º) as well as mitre cutting up to  -45º (left side) and up to  +60º (Right side)

Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching

Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations

- Speed variator from 20 to 90 m/1’

- Microlubrication System

- Pedal Start with E-stop

- Additional Vice

- Digital Angle / Mitre reader

- Laser for the saw cut

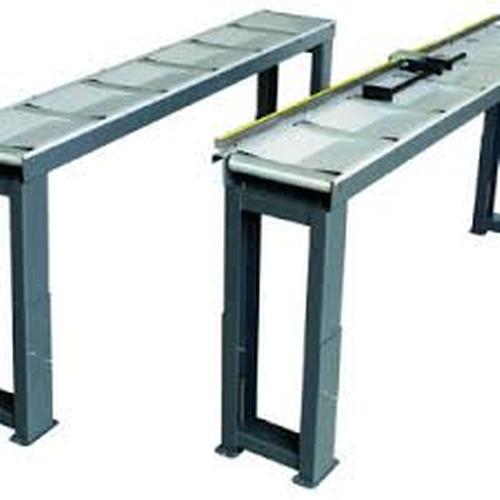

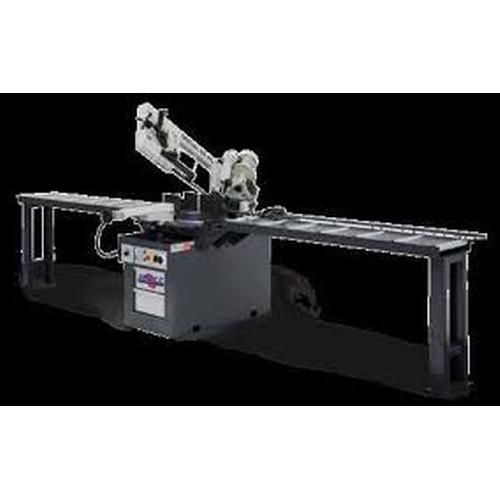

ROLLERWAY TYPE RD

- Adjustable height loading/unloading roller conveyor for band-saws

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

EXIT ROLLERWAY TYPE RDO

- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg
