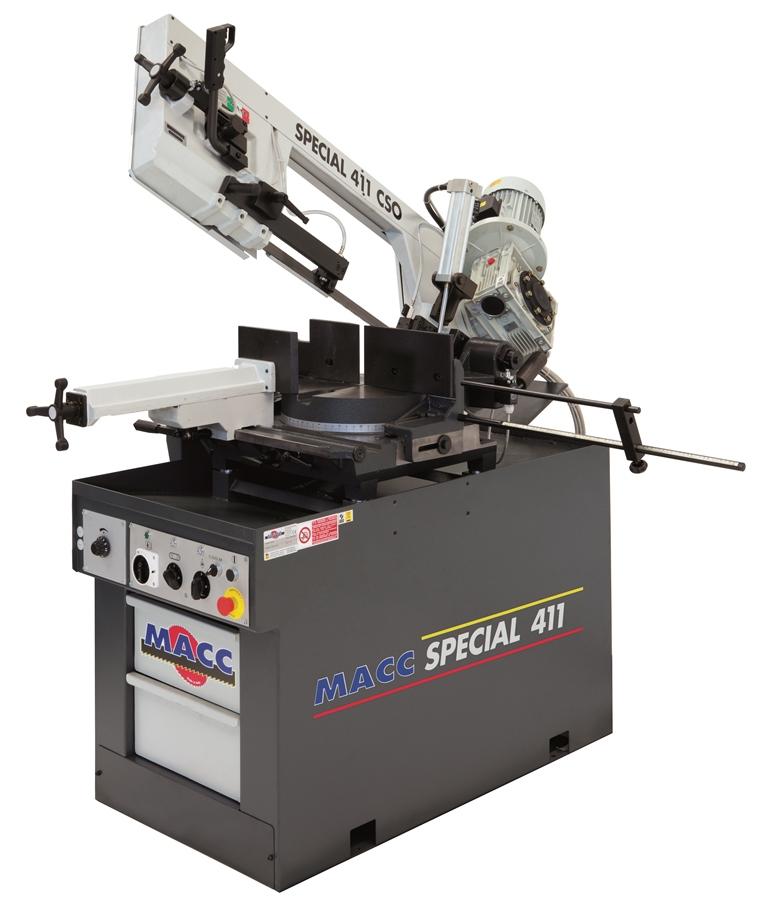

SPECIAL 411 CSO

Code: MACC08
Brand: MACC

Sawing machine, manual, industrial and robust structure, with capability of vertical cutting (0º) as well as angle cutting (-45º  /  +60º) process.

The model SPECIAL 411 CSO is the most compact saw on the market. Designed with high strength. It is a MACC development to provide the highest accuracy standards and to minimize cutting times and adjustments.

Through a complete optionals catalogue, all demands for a fast, productive and easy to use cutting process are covered in the best way.

CUTTING CAPACITIES

                                                 0º              -45º              +45º             +60º

Round profile                        260             225               215              130            (mm)

Square profile                       250             210               200              130            (mm)

Rectangular profile         220x330      160x225       160x210      130x140         (mm)

  • TECHNICAL DATA

    - Blade rotation speed  (m/1')              38 / 78

    - Vice opening  (mm)                330

    - Machine dimensions  (mm)              1960 x 1506 x 1962

    - Machine weight    (Kg)             365

STANDARD MACHINE FEATURES

- Sawing machine with bow falling controlled by a hydraulic circuit upon cutting

- Bar feeding, vice closure and head return manually operated

- Vertical rotation on bolt with adjustable tapered bearings without backlash

- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw

- Appropriately dimensioned flywheels

- Bandsaw Blade dimensions  (mm)         3200 x 27 x 0,9

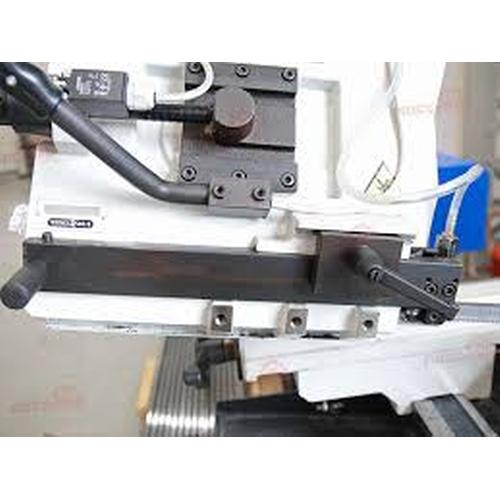

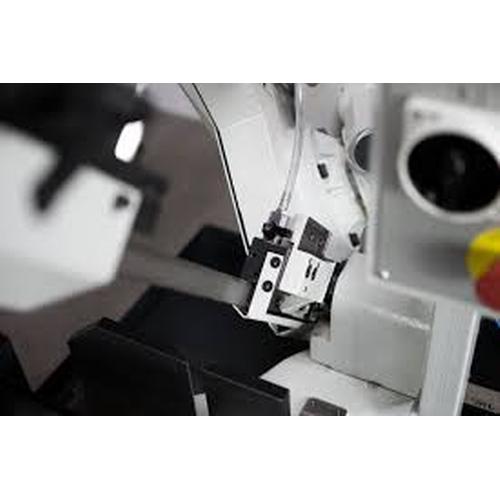

- Strong band guides with tight stress-raiser bearings and adjustable widia tips

- Band stretching is obtained by electro-mechanical blade tensioner with microswitch

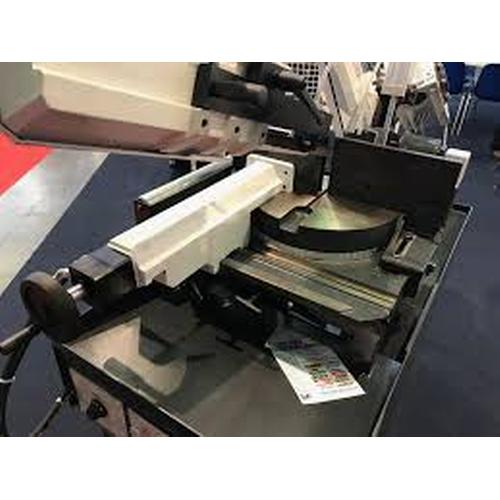

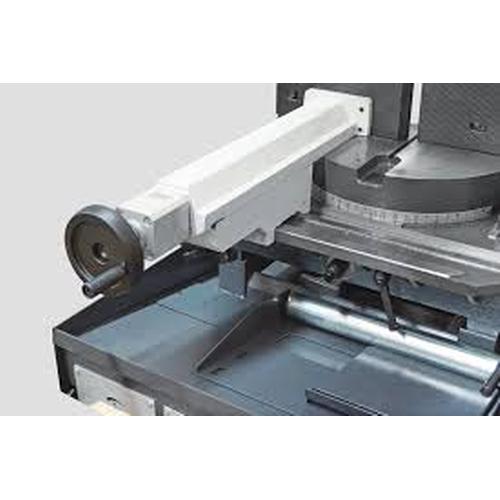

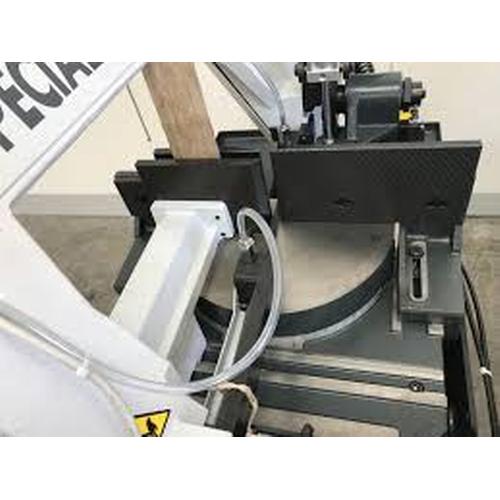

- Vice with a device for quick approach

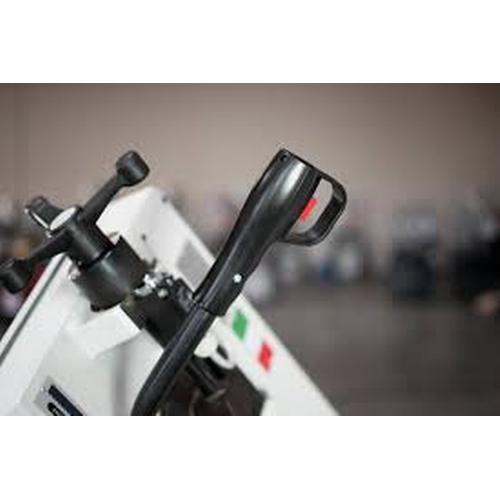

- Accident-preventing devices on the flywheels casing, on the control handle and on the blade

- Hydraulic cylinder for controlled descent

- Removable chip collection tray

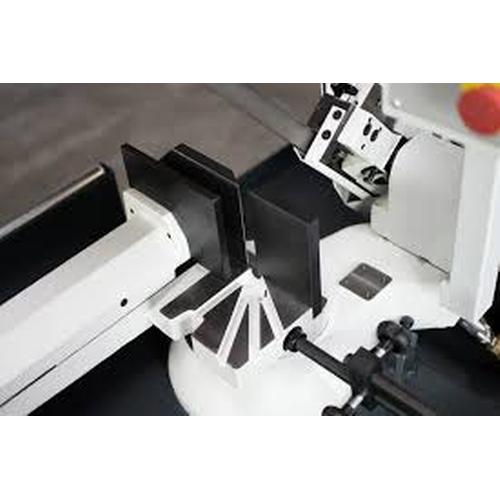

- Capability of Mitre cutting up to -45º (left side) and +60º (right side)

- Adjustable stop for cuts of the same size

- 24V low tension plant

- Band Cooling System, with 0,06 kW power-driven pump

The model SPECIAL 411 CSO is an economic and reliable solution for cutting metal profiles

Hydraulic System to control bow feeding

Speed Variator for 20-90 m/1' bow speed

Capability of straight cut (0º) as well as mitre cutting up to  -45º (Left side) and up to  +60º (Right side)

Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching

Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations

- Speed Variator for  20-90 m/1'

- Microlubrication System

- Pedal controlled pneumatic vice

- Additional Vice

- Digital angle / Mitre reader

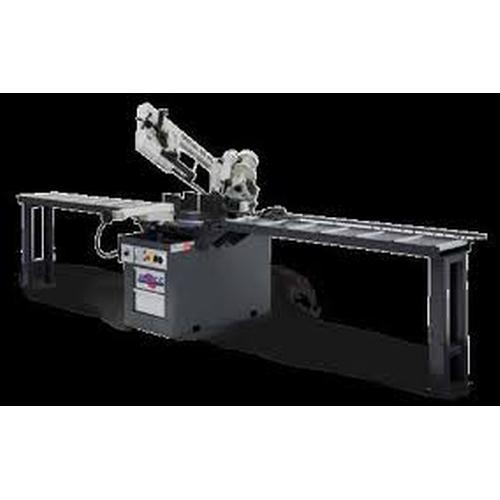

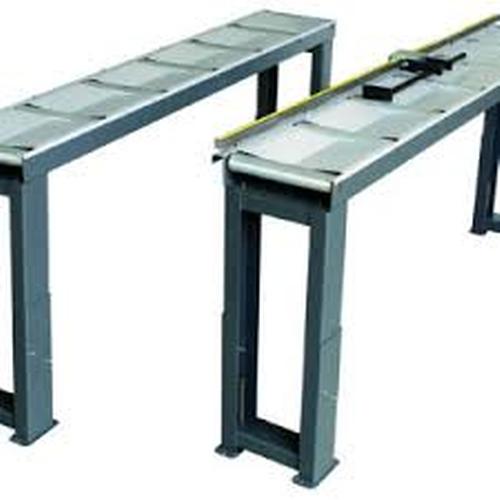

ROLLERWAY TYPE RD

- Adjustable height loading/unloading roller conveyor for band-saws

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

EXIT ROLLERWAY TYPE RDO

- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

BROCHURE
