CUTTING CAPACITIES
0º +45º +60º
ROUND profile 300 220 130 (mm)
SOLID ROUND profile (bar) 230 200 130 (mm)
SQUARE profile 280 210 130 (mm)
RECTANGULAR profile 230x340 210x210 160x130 (mm)
-
TECHNICAL DATA
- Blade rotation speed (m/1') 38 / 77

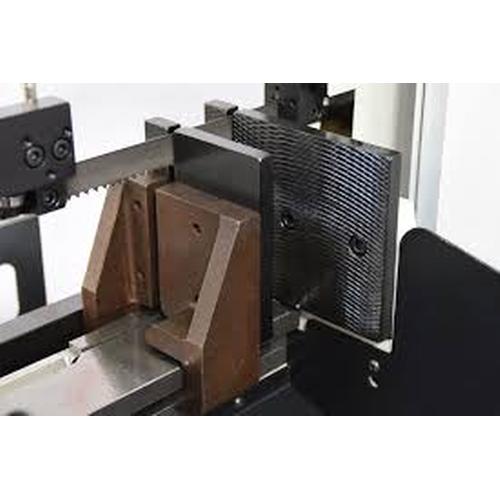

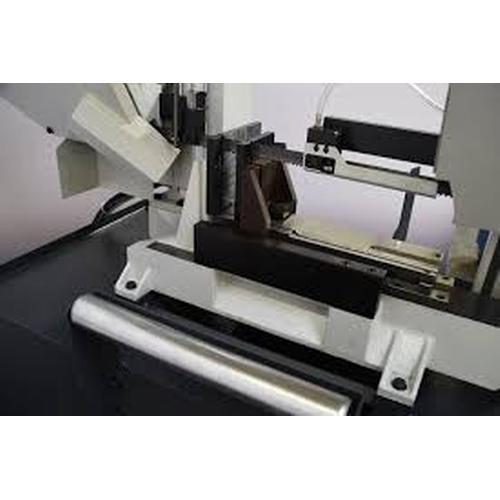

- Vice opening (mm) 380
- Machine dimensions (mm) 1625 x 1113 x 1943
- Machine weight (Kg) 520
STANDARD MACHINE FEATURES
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- High-capacity band control by two-speed motor and reducer with gears in oil bath
- Appropriately dimensioned flywheels
- Bandsaw Blade dimensions (mm) 3200 x 27 x 0,9
- Speed Variator for 20-90 m/1' with 2,2 KW motor one speed

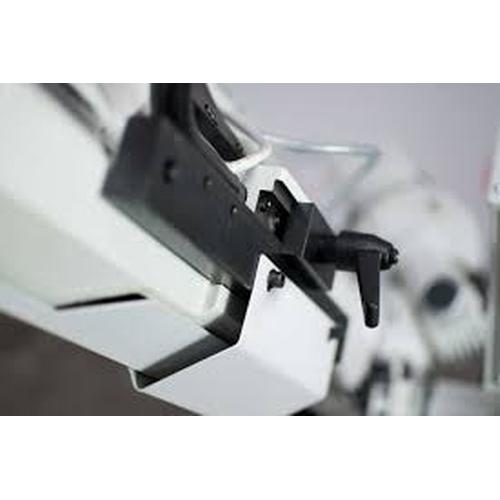

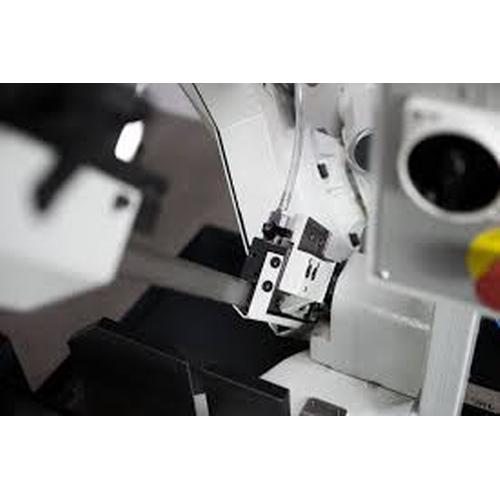

- Strong band guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch

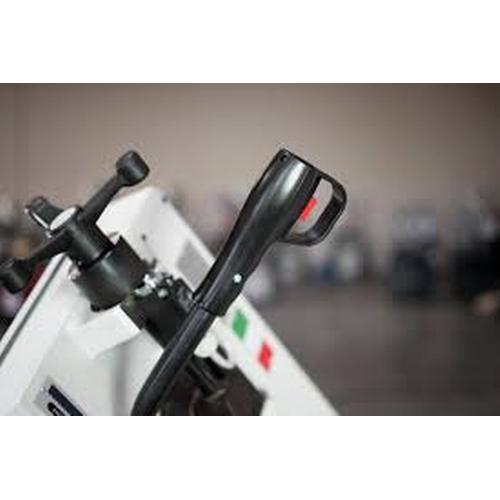

- Accident-preventing devices on the flywheels casing, on the control handle and on the blade
- Removable chip collection tray
- Capability of mitre cutting up to +60º (right side)
- Blade cleaning device with brush

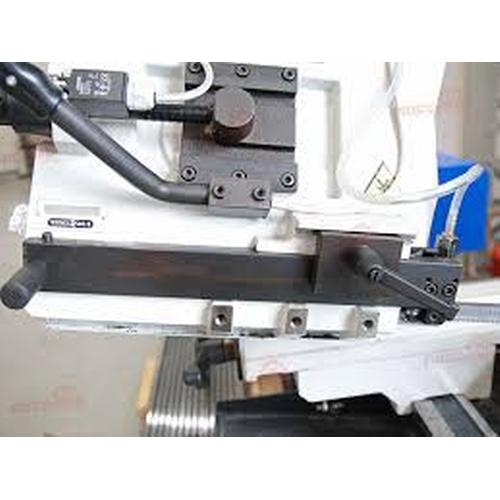

- Adjustable stop for cuts of the same size
- 24V low tension plant
- Band Cooling System, with 0,06 kW power-driven pump
MACHINE OPERATION / CUTTING CYCLE
Cycle start is obtained by pressing the relevant start button. The machine performs the following operations during the cutting cycle:
1. vice closing and activation of band motor
2. cutting bow downstroke
3.return of bow to initial position
4.band motor stop
5. vice opening
The machine provides the possibility of manual cut

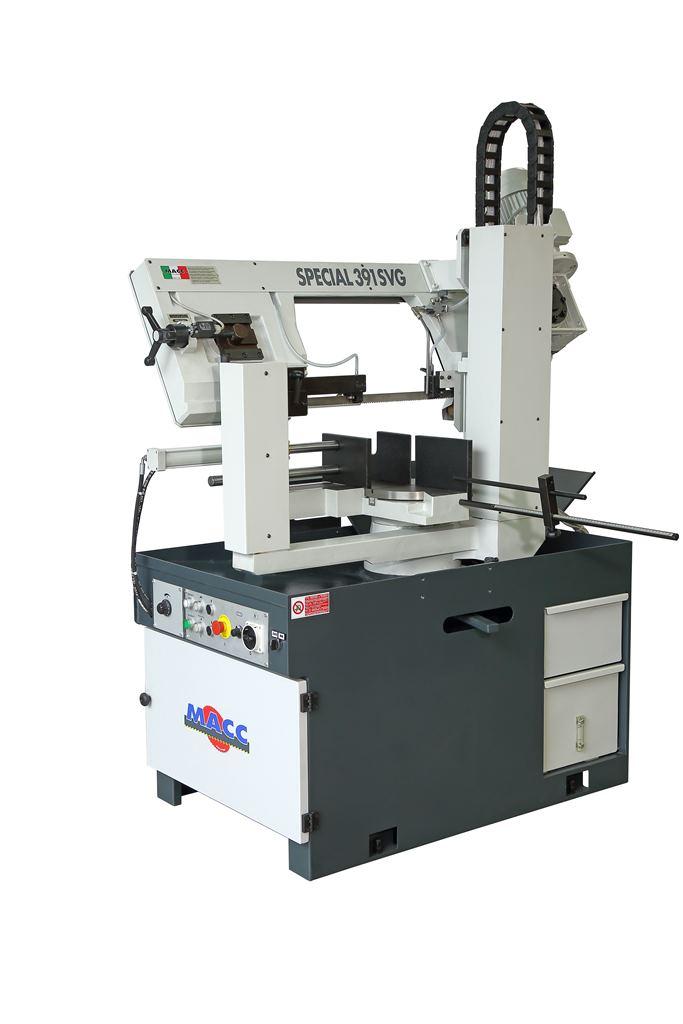

The model SPECIAL 391 SVG, is a semi-automatic machine and it is an economic and reliable solution for the cutting of metal profiles
Capability of straight cut (0º) as well as mitre cutting up to +60º (right side)
Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching
Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade
Easy to use : Practical, simple and ergonomic operations
Fast cutting operations
- Microlubrication System

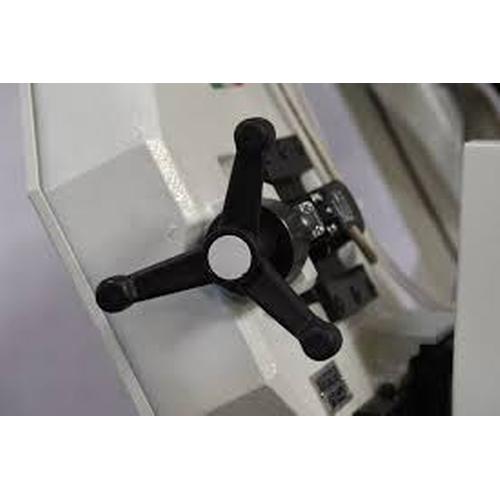

- Vice Pressure Regulation

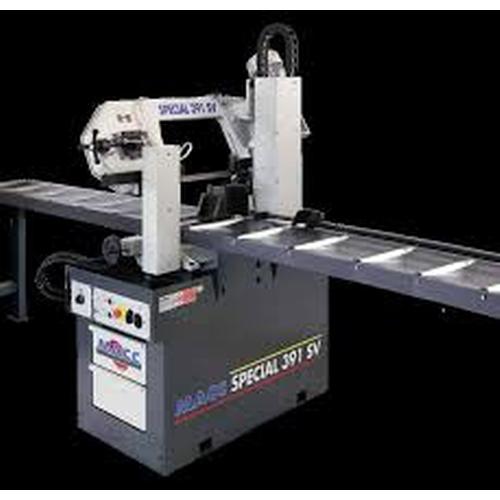

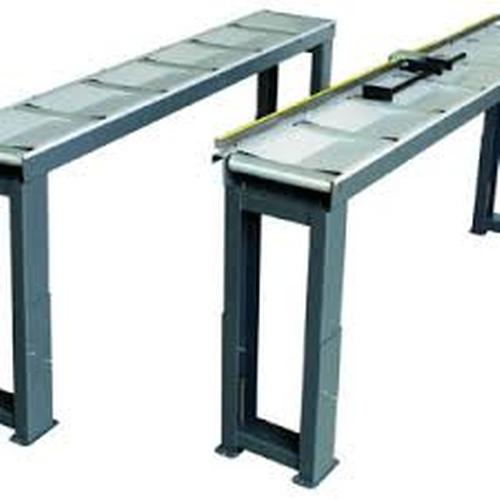

ROLLERWAY TYPE RD
- Adjustable height loading/unloading roller conveyor for band-saws
- Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
- Each roller conveyor is made up of a surface composed of rollers and a support leg
EXIT ROLLERWAY TYPE RDO
- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)
- Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
- Each roller conveyor is made up of a surface composed of rollers and a support leg
