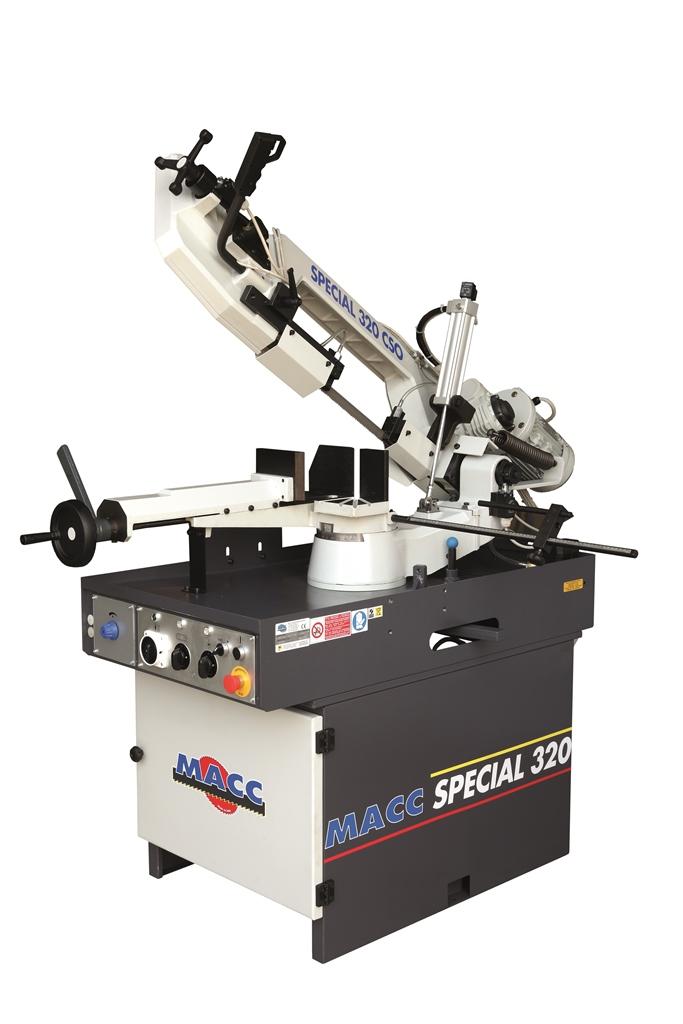

SPECIAL 320 CSO

Code: MACC04
Brand: MACC

Sawing machine, manual, industrial and robust structure, with capability of vertical cutting (0º) as well as angle cutting (+60º) process.

The model SPECIAL 320 CSO is the most compact saw on the market. Designed with high strength. It is a MACC development to provide the highest accuracy standards and to minimize cutting times and adjustments.

Through a complete optionals catalogue, all demands for a fast, productive and easy to use cutting process are covered in the best way.

CUTTING CAPACITIES

                                                 0º              +45º             +60º

Round profile                        230              200              130          (mm)

Square profile                       220              180              120           (mm)

Rectangular profile         170x300       180x230       110x130       (mm)

  • TECHNICAL DATA

    - Blade rotation speed  (m/1')              35 / 71

    - Vice opening  (mm)                315

    - Machine dimensions  (mm)              1870 x 1130 x 1900

    - Machine weight    (Kg)             340

STANDARD MACHINE FEATURES

- Sawing machine with bow falling controlled by a hydraulic circuit upon cutting

- Bar feeding, vice closure and head return manually operated

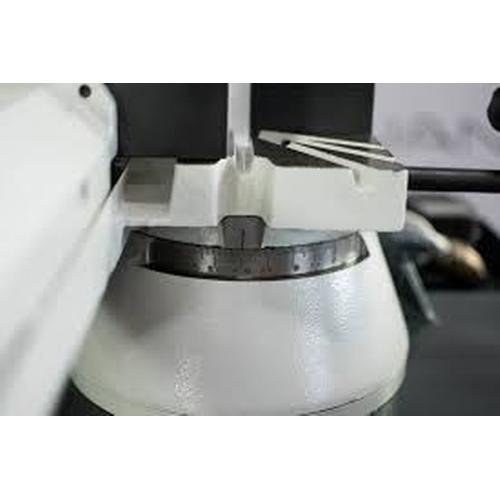

- Vertical rotation on bolt with adjustable tapered bearings without backlash

- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw

- Appropriately dimensioned flywheels

- Bandsaw Blade dimensions  (mm)         2825 x 27 x 0,9

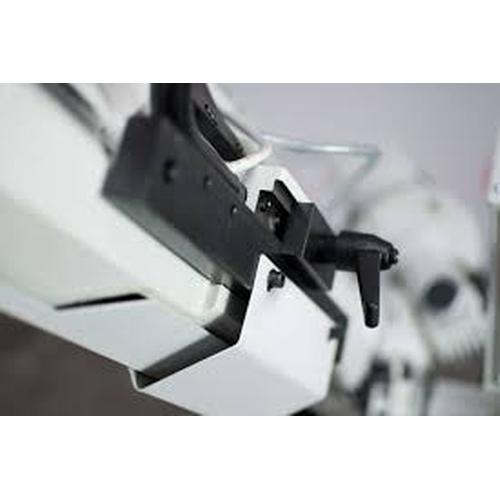

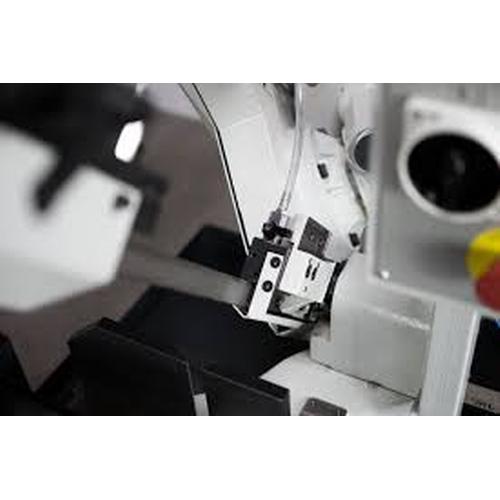

- Strong band guides with tight stress-raiser bearings and adjustable widia tips

- Band stretching is obtained by electro-mechanical blade tensioner with microswitch

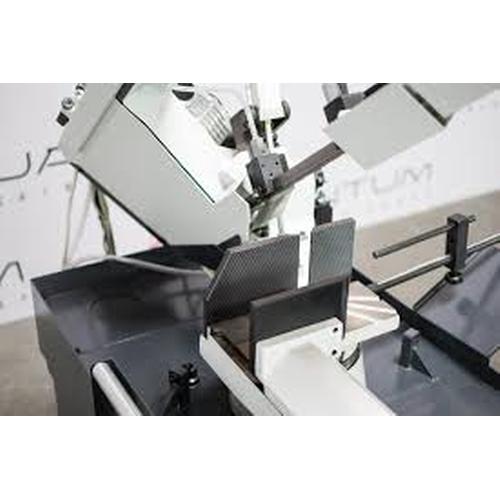

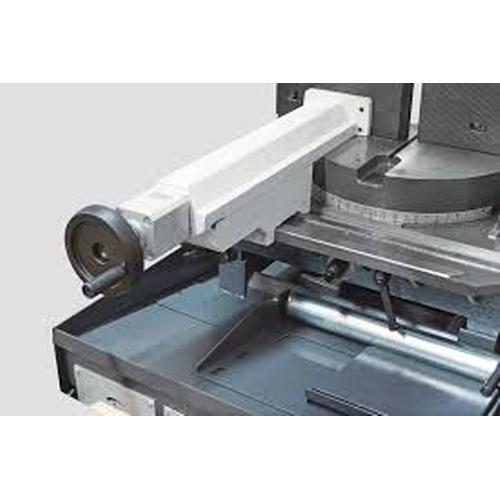

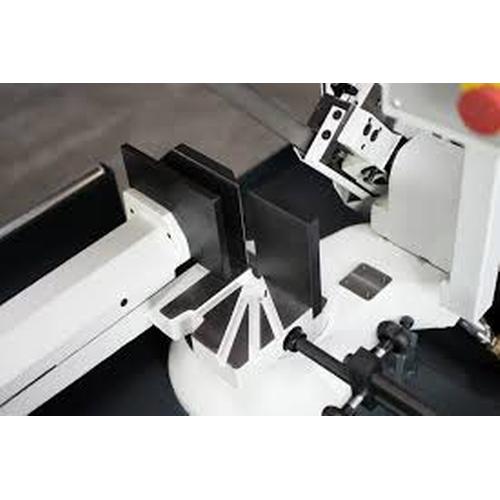

- Vice with a device for swift locking by excentric means

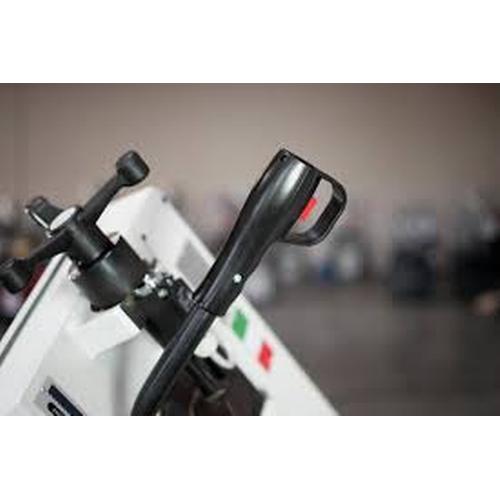

- Accident-preventing devices on the flywheels casing, on the control handle and on the blade

- Capability of Mitre cutting up to 60º (right side)

- Adjustable stop for cuts of the same size

- 24V low tension plant

- Band Cooling System, with 0,06 kW power-driven pump

The model SPECIAL 320 CSO is an economic and reliable solution for cutting metal profiles

Hydraulic System to control bow feeding

Speed Variator for 20-90 m/1' bow speed

Capability of straight cut (0º) as well as mitre cutting (up to 60º Right side)

Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching

Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations

- SINGLE-PHASE motor / Band rotation speed  69 m/1'

- Microlubrication System

- Pedal controoled pneumatic vice

- Speed Variator for  20-90 m/1'

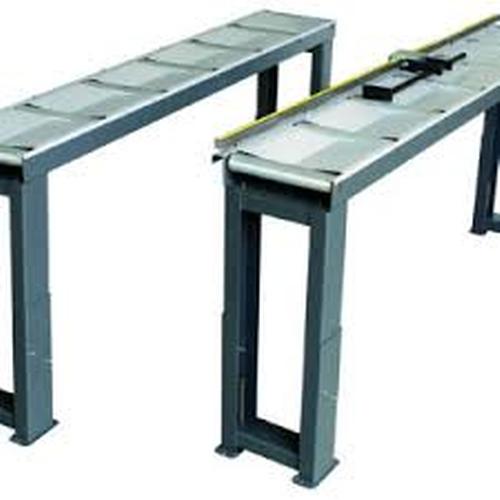

ROLLERWAY TYPE RD

- Adjustable height loading/unloading roller conveyor for band-saws

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

EXIT ROLLERWAY TYPE RDO

- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

BROCHURE
