CUTTING CAPACITIES
0º +45º +60º
Round profile 220 160 100 (mm)
Square profile 220 160 100 (mm)
Rectangular profile 155x250 110x160 80x95 (mm)
-
TECHNICAL DATA
- Blade rotation speed (m/1') 32 / 66
- Vice opening (mm) 250
- Machine dimensions (mm) 1570 x 875 x 1745
- Machine weight (Kg) 250
STANDARD MACHINE FEATURES
- Bar feeding, vice closure and head return manually operated
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw
- Appropriately dimensioned flywheels
- Bandsaw Blade dimensions (mm) 2450 x 27 x 0,9

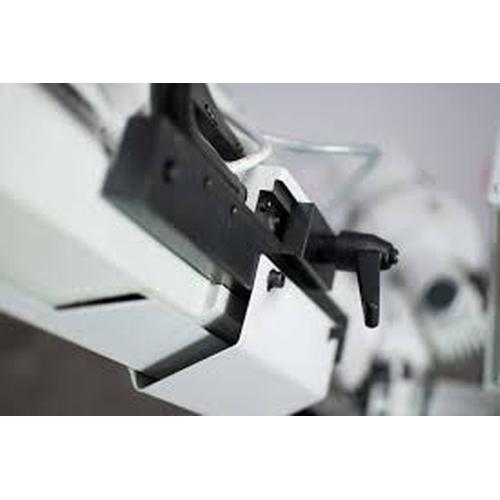

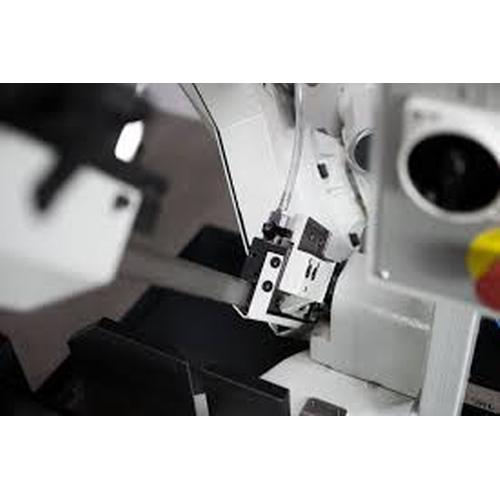

- Strong band guides with tight stress-raiser bearings and adjustable widia tips
- Band stretching is obtained by electro-mechanical blade tensioner with microswitch

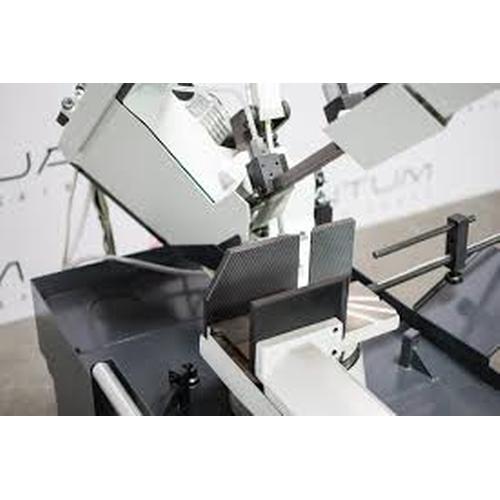

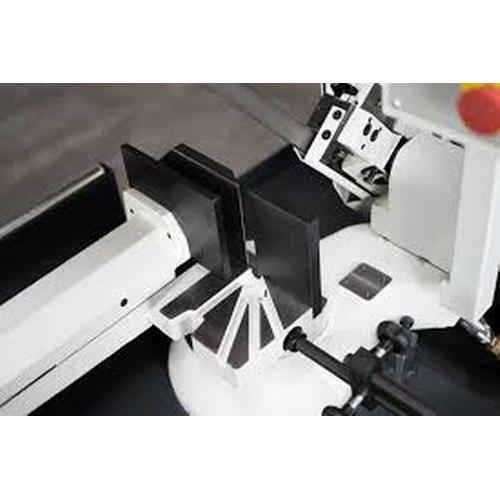

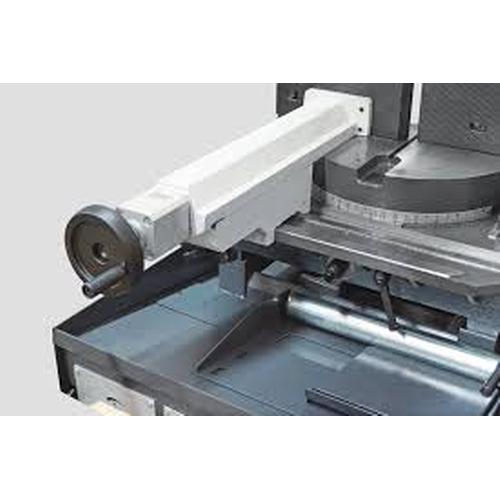

- Vice with a device for swift locking by excentric means

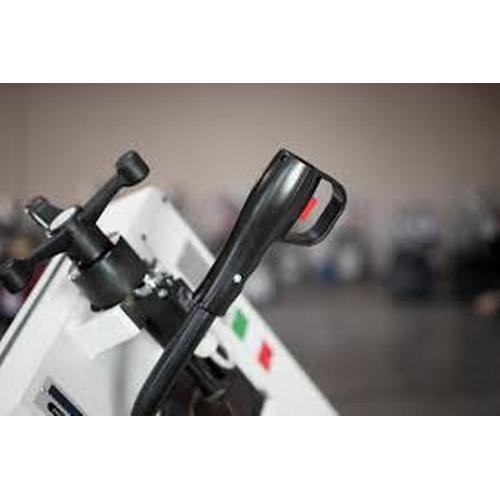

- Accident-preventing devices on the flywheels casing, on the control handle and on the blade

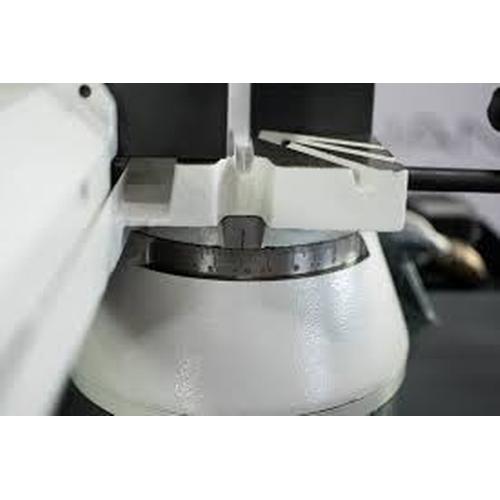

- Capability of Mitre cutting up to 60º (right side)
- Adjustable stop for cuts of the same size
- 24V low tension plant
- Band Cooling System, with 0,06 kW power-driven pump

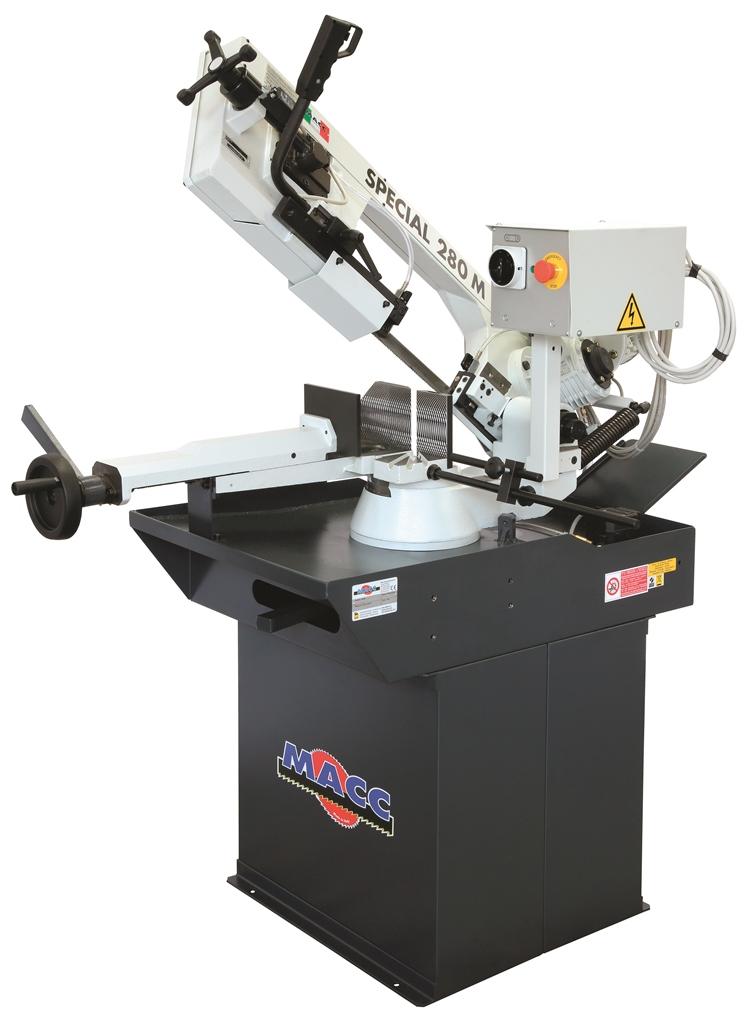

The model SPECIAL 280 Μ is an economic and reliable solution for cutting metal profiles
Capability of straight cut (0º) as well as mitre cutting (up to 60º Right side)
Always straight cut through the basic characteristics of the machine such as rigidity of blade support, flywheel dimensioning, band guides and band stretching
Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade
Easy to use : Practical, simple and ergonomic operations
Fast cutting operations
- SINGLE-PHASE motor / Band rotation speed 64 m/1'
- Hydraulic brake damper

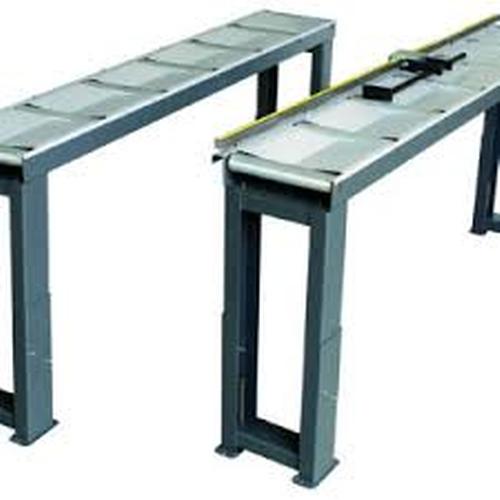

ROLLERWAY TYPE RD
- Adjustable height loading/unloading roller conveyor for band-saws
- Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
- Each roller conveyor is made up of a surface composed of rollers and a support leg
EXIT ROLLERWAY TYPE RDO
- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)
- Composed of 2 meters length modular elements, each with seven (7) pcs 290mm or 390mm wide galvanised steel rollers
- Each roller conveyor is made up of a surface composed of rollers and a support leg
