SPECIAL 215

Code: MACC01
Brand: MACC

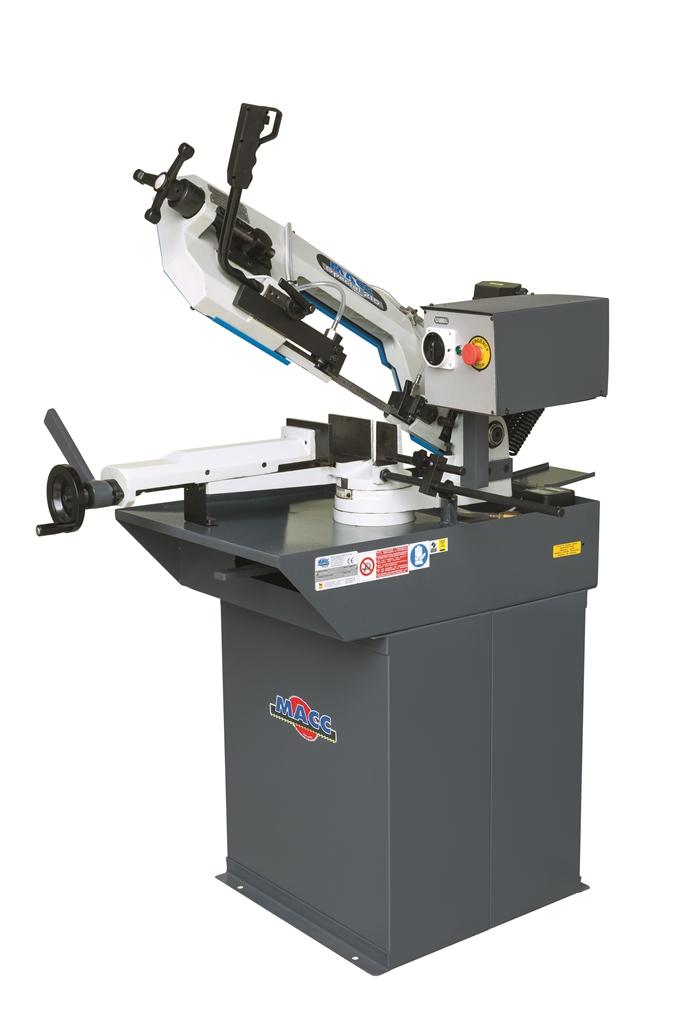

Sawing machine, manual, industrial and robust structure, with capability of vertical cutting (0º) as well as angle cutting (+45º) process.

The model SPECIAL 215 is the most compact saw on the market. Designed with high strength. It is a MACC development to provide the highest accuracy standards and to minimize cutting times and adjustments.

Through a complete optionals catalogue, all demands for a fast, productive and easy to use cutting process are covered in the best way.

  • CUTTING CAPACITIES

  •                                                  0º              +45º

    Round profile                       150              120             (mm)

    Square profile                      150              110             (mm)

    Rectangular profile          120x200      90x130          (mm)

    TECHNICAL DATA

    - Blade rotation speed  (m/1')              39 / 77

    - Vice opening  (mm)                215

    - Machine dimensions  (mm)              1000 x 1155 x 1600

    - Machine weight    (Kg)             160

STANDARD MACHINE FEATURES

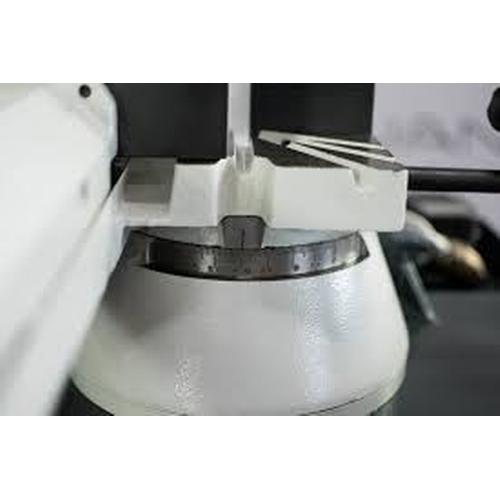

- Vertical rotation on bolt with adjustable tapered bearings without backlash

- High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw

- Appropriately dimensioned flywheels

- Bandsaw Blade dimensions  (mm)       2060 x 20 x 0,9

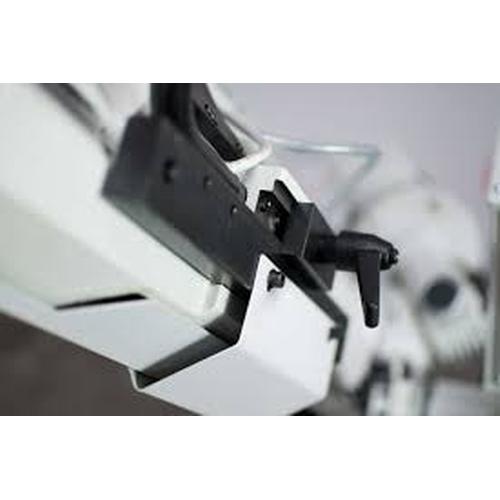

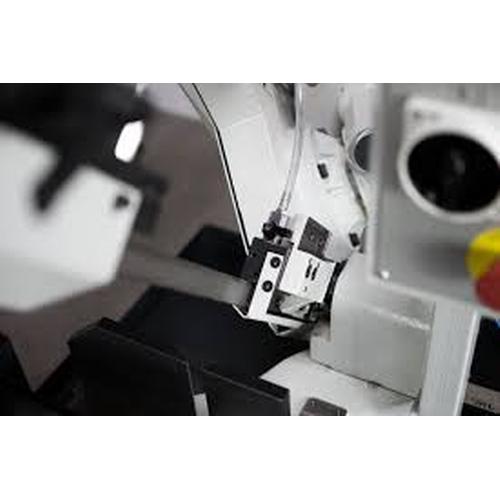

- Strong band guides with tight stress-raiser bearings

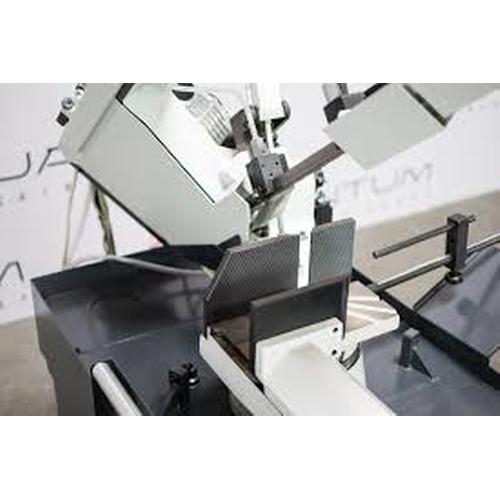

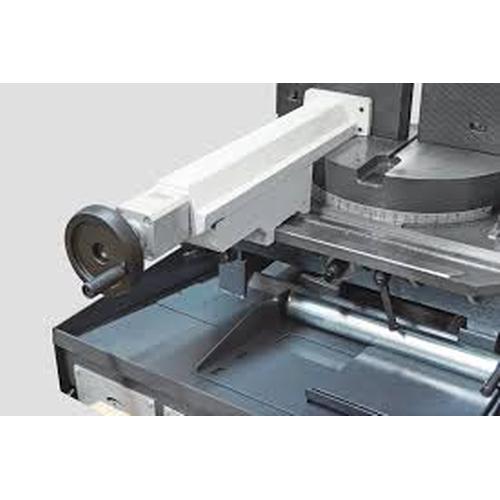

- Vice with a device for quick lock

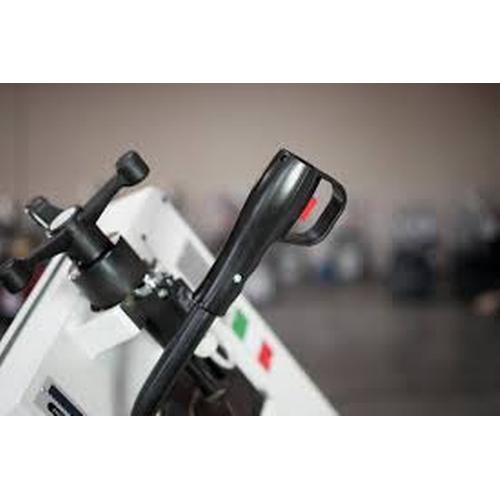

- Accident-preventing devices on the flywheels casing, on the control handle

- Capability of Mitre cutting up to 45º (right side)

- Adjustable stop for cuts of the same size

- 24V low tension plant

- Band Cooling System, with 0,06 kW power-driven pump



The model SPECIAL 215 is an economic and reliable solution for cutting metal profiles

Always straight cut

Longer blade life : High reliability Band rotation control provides security in Band rotation, keeps it under low tension and as a result gives a longer life to the blade

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations

- SINGLE-PHASE motor / Band rotation speed  77 m/1'

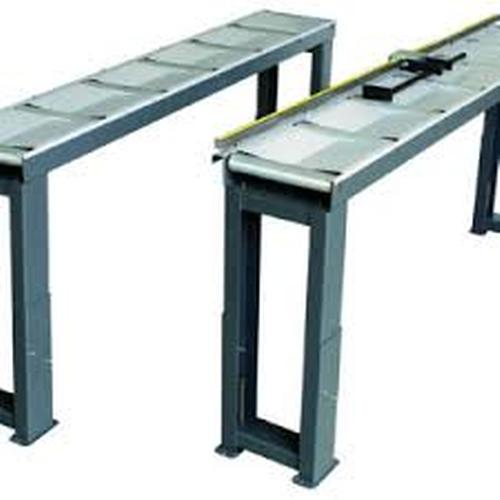

ROLLERWAY TYPE RD

- Adjustable height loading/unloading roller conveyor for band-saws

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

EXIT ROLLERWAY TYPE RDO

- Unloading roller conveyor for band-saws, with measuring rod divided into millimeters for checking measurements which is moved manually and adjustable in height (applied to the right-hand side of the machine)

- Composed of 2 meters length modular elements, each with seven (7) pcs  290mm or 390mm wide galvanised steel rollers

- Each roller conveyor is made up of a surface composed of rollers and a support leg

BROCHURE
