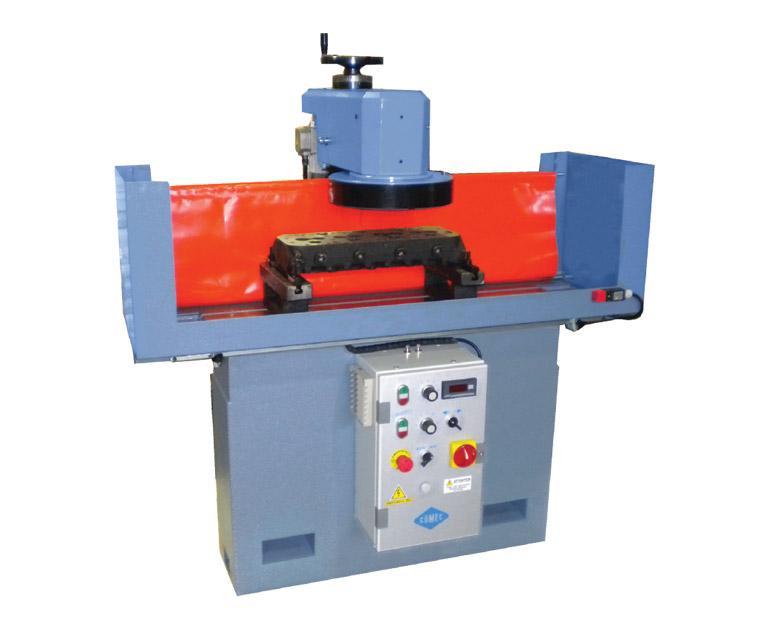

RP850

Κωδ.: COM17
Κατασκευαστής: COMEC

Brochure

  • Variable spindle speed complete with digital read-out
  • Adjustable table feed
  • Manual/continuous working cycle programmes
  • CBN/PCD milling plate dia. 330mm (13”)
  • Toolhoder UT1350 and CBN insert UT1355
  • Base-integrated control panel
  • Safety guard with policarbonate shield
  • PV0006 Pair of parallel supports
  • PV0021 Large clamps
  • PV0022 Small clamps
  • Lubricant for slides
  • Wrench set
  • Instruction manual

Table travel
1015 mm
Max workpiece length
850 mm
Max workpiece width
330 mm
Max workpiece height
360 mm
Min workpiece height
160 mm
Milling wheel diameter
330 mm (13”)
Variable head speed rotation
300 ÷ 1200 rpm
Variable table travel speed
0 ÷ 600 mm/min
Head motor
1,5 Kw
Table motor
0,75 Kw
Dimensions (LxWxH)
1550x870x1720 mm
Weight
591 Kg
