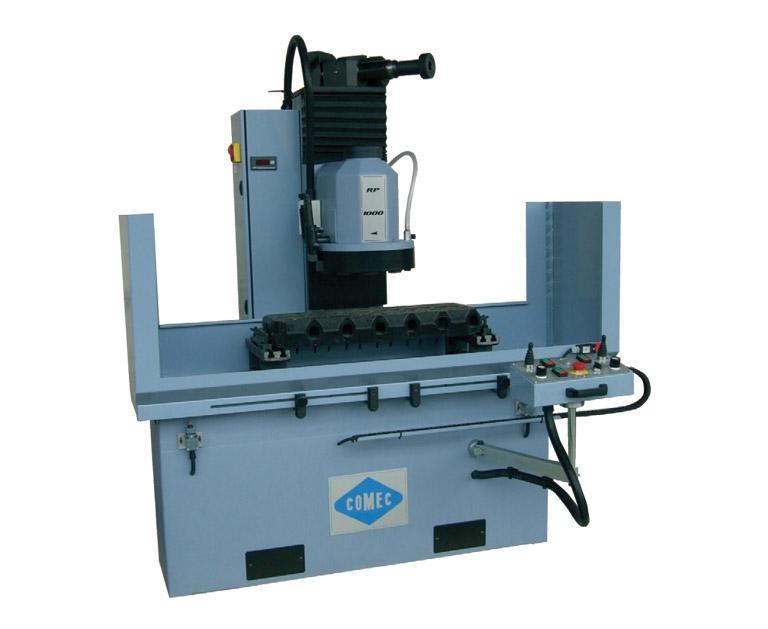

RP1000

Κωδ.: COM18
Κατασκευαστής: COMEC

Brochure

  • Adjustable spindle speed complete with digital read-out
  • Adjustable table feed
  • Table with recirculating-ball screw
  • Fast motorized head feed
  • Manual/Continuous/Automatic working modes
  • Turning control panel
  • Splash and safety guard with policarbonate shield
  • Pair of parallel supports with clamps
  • Lubricant for slides
  • Wrench set
  • Instruction manual


ONLY GRINDING VERSION:

  • Ø 355mm Grinding wheel complete of segments for cast iron (10 pcs.) and cutting tool
  • Cooling plant complete with pump and settling tank
  • Grinding wheel dresser
  • Emulsifiable liquid


ONLY M VERSION:

  • RP1361 CBN/PCD/ALP Milling plate
  • UT1330 1/2”CBN/PCD insert tool holder
  • UT1355 1/2” CBN Insert for cast iron
Table travel
1070 mm
Max workpiece length
895 mm
Max workpiece width
355 mm
Min - Max workpiece height
125÷545 mm
Useful table surface
920x210 mm
Segmented grinding wheel diameter
355 mm (14”)
Variable head speed rotation
300÷1500 rpm
Variable table travel speed
0÷1500 mm/min
Head motor
4.0 kW (M 2.2 kW)
Table motor
0.75 kW
Fast head feed motor
0.18 kW
Coolant pump motor
0.10 kW
Dimensions (LxWxH)
1680x1140x1850 mm
Weight
1015 kg
