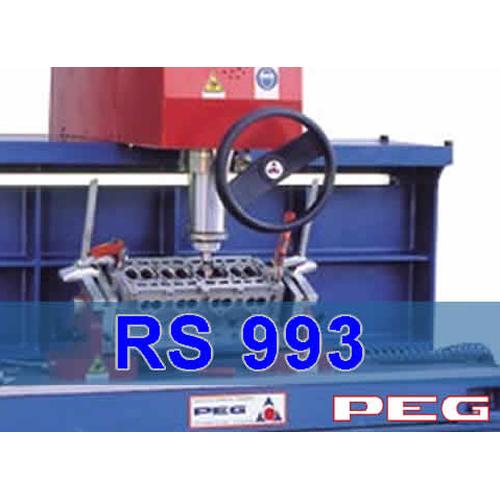

PEG RS993

Code: PEG11
Brand: PEG - ROSSI & KRAMER

 SYSTEM FOR INSERTING AND GRINDING VALVE SEATS AND GUIDES

System for inserting and grinding valve seats and guides

Thirty years' experience in the world of engines plus a production of over 40.000 portable grinders are behind our new model RS 993: a stationary system for inserting and grinding valve seats and guides which combines the consolidated experience of PEG with the latest technological innovation.

The result is an extremely reliable machine whose design has benefitted from ideas developed to salve the problems met by mechanics in keeping abreast with the dynamics of new types of engines. The electronic reduced to the minimum, without superfluous sophistications and the simplicity of the operative systems conceptions, make the RS 993 particularly reliable and movable in any workshop. The machine is a modern instrument capable of handling present and future needs in restoring with maximum precision the original efficiency of cylinder heads for any type of engine - turbo, induction, petrol or diesel.

  • Machine complete with working head and cylinder head stand
  • n°2 stands for cylinder head
  • n°1 tool holder head
  • n°3 tools bit head, adjustabel for Ø18-35/30-42/42-60 mm
  • n°1 flat tool bit
  • n°2 shaped tool bit 30º and 45º
  • n°6 hardened steel fixed pilots
  • n°7 hardened steel self-centering pilots complete with expander cone
  • n°1 tool setting device
  • n°1 service handtools
  • Pilots in all sizes and diameters, in both millimeters and inches
  • Fixed pilots in tungsten cardibe
  • Hard metal tool bits
  • Tool-holders for Ø>60mm
  • Tip holder for Ø>60mm
  • Toolssharpener with diamond tapping wheel
  • Micrometer
  • Precision chuck with adjustable cone
  • Vacuum tester
  • Reamers (ant Ø on request)
  • Pilot rack
working field 1100 x 100 mm
Rake ±7°
Quill stroke 200 mm
Min.fresabile diameter for valve seat 18 mm
Max.fresabile diameter for valve seat 90 mm
Min.per incameratura diameter valve seat rings 24 mm
Max.per incameratura diameter valve seat rings 60 mm
Chuck rotation speed (RPM) 0-1000
Voltage 220 V
Power 380 W
Air pressure 116 psi
Peso Approssimativo 1500 Kg
Dimensions WxDxH 1500 x 1200 x 2200 mm
