ORIENT PRO

Code: FIC02
Brand: FICEP

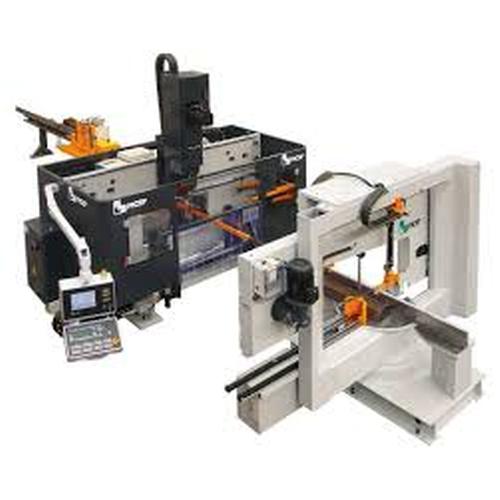

CNC Drilling for construction profiles and beams. It can be combined with a Band Sawing Unit or a Thermal Coping Robot.


BASIC FEATURES

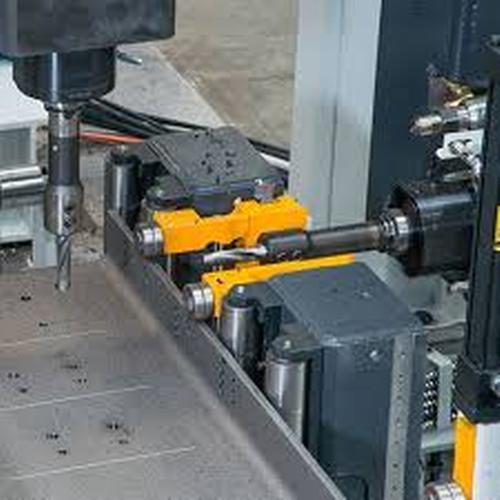

A robust pincher is used to clamp the material and to push it forward for processing.

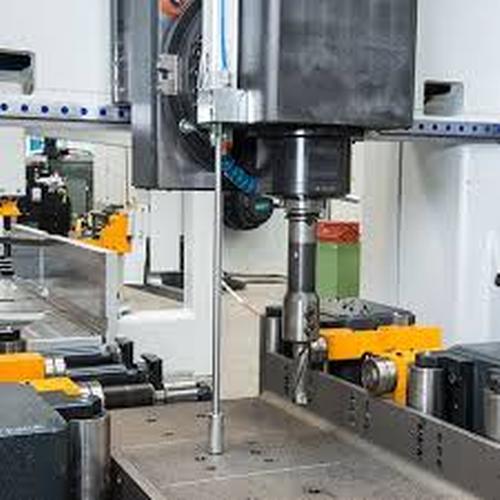

Sophisticated combination of probing clamping and laser devices allows precise measuring of beam length and width, as well as flanges and web height.

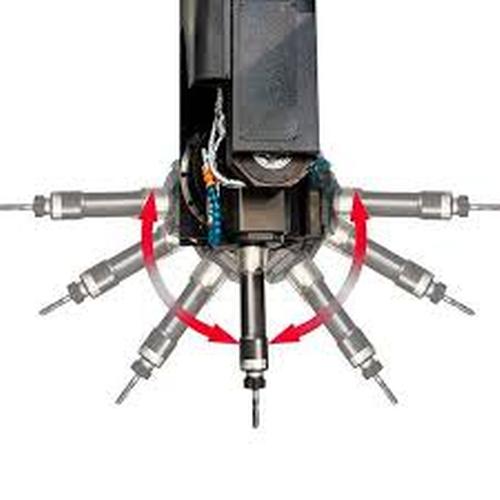

The rotating spindle can process both flanges and web with extremely reliable performances.

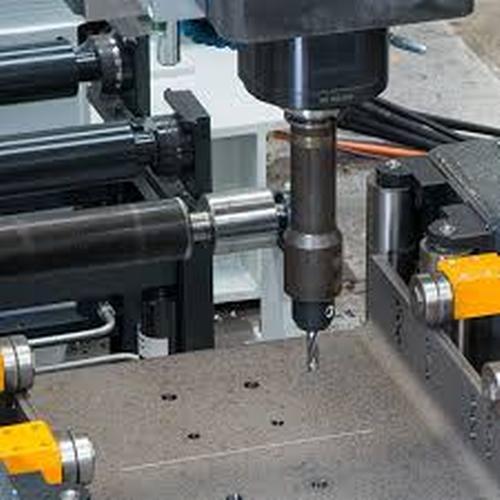

The powerful Direct Drive spindle ensures high drilling performances. This heavy duty, yet simple design makes this spindle the most efficient and advanced on the market today.

Additional spindle to boost the machine's performance even more.

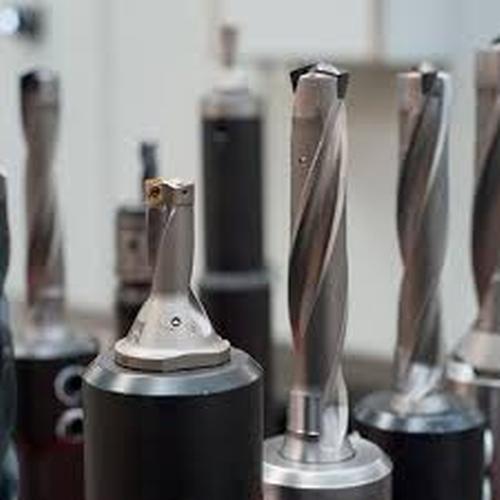

Thanks to the high RPM spindle, Carbide tools can be utilized to their maximum efficiency.

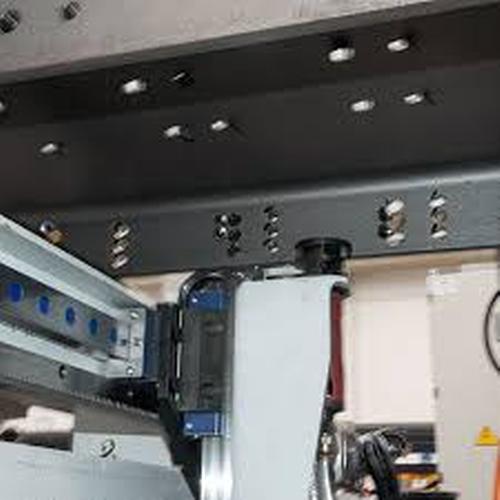

Besides the top Scribing, carried out with the relevant tool, Underside Scribing operations can be performed with a special device.

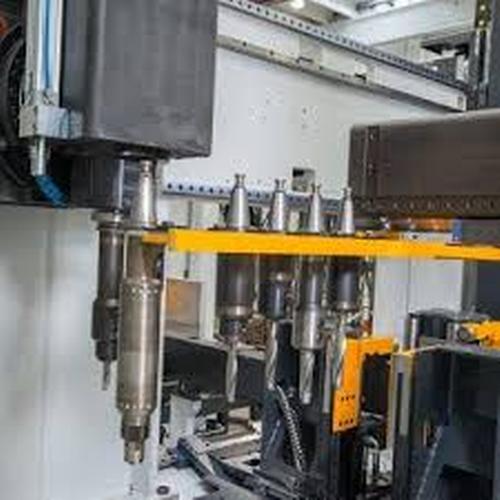

Automatic Tool change syste, managed by the CNC and equipped with 6 positions.

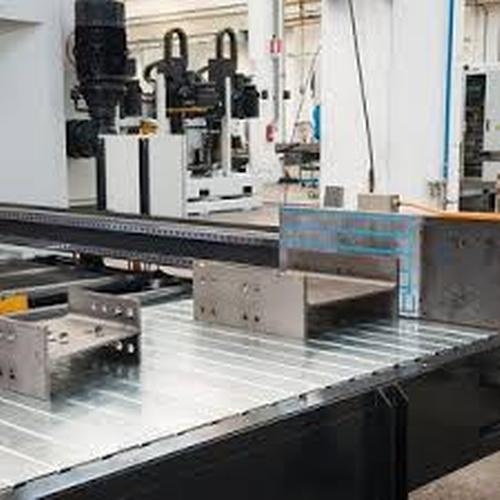

When combined with Band-saw, a special device with magnet allows to unload short pieces towards outfeed rollerway onto the unloading table for short pieces.

When combined with Band-saw or with Thermal Coping Robot, there is no need to add a further CNC unit as the entire system is controlled by a single CNC.

The machine is supplied in accordance with the highest safety standards and regulations.

BROSCHURE

AUTOMATIC CNC MONOSPINDLE DRLLING LINE – ORIENT PRO451 OR601 OR1001 OR1101 OR1201 OR

Profile size [min mm]

 80x10 80x10 80x10 80x10 80x10

Profile size [max mm]

 450x450 610x450 1015x450 1115x500 1220x610

Drilling heads [no.]

 1 (2) 1 (2) 1 (2) 1 (2) 1 (2)

Drilling tools per head [no.]

 6 (12) 6 (12) 6 (12) 6 (12) 6 (12)

Drilling diameter [max mm]

 40 40 40 40 40

Spindle power [kW]

 31 31 31 31 31

Max. spindle RPM

 5000 5000 5000 5000 5000

Machine weight [kg]

 8500 9500 9500 10000 10000

DRILLING

TAPPING

MILLING

COUNTERSINKING

SCRIBING

MARKING

BAND SAWING (IN COMBINATION WITH BAND SAW)

THERMAL COPING (IN COMBINATION WITH THERMAL COPING ROBOT)

Affordable solution without compromising on reliability of this beam line.

The robust rotating spindle assures the highest level of confidence and peace of mind even after many years of intense work.

The performance of the direct drive spindle makes sure the highest standards of performance and quality achieved.

Remote Diagnosis is possible through a network connection that allows FICEP service team to perform routine checks.
