KRONOS

Code: FIC10
Brand: FICEP

The KRONOS series Lines are Heavy Duty Gantry style Thermal Cutting Systems engineered for steel fabricators who manufacture connection plates, gussets, stiffeners etc from stock material.

This Line integrates all the cutting, drilling and marking/scribing processes into one single operation to reduce material handling cost and total production time while at the same time productivity and final products competitiveness are increased.

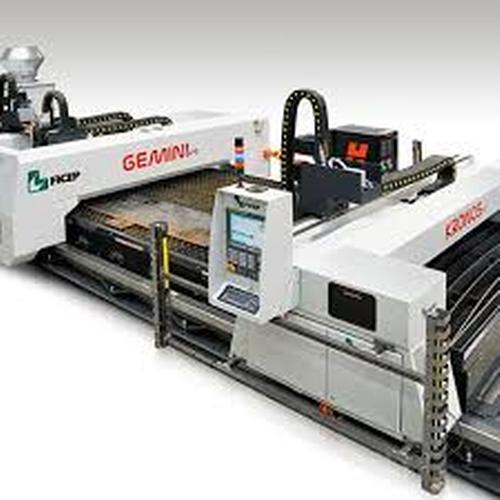

KRONOS can be combined with another KRONOS or with the GEMINI machine in a row. As a result, a Multi-Tasking Center for Cutting-Drilling-Marking is created, with two (2) bridges/gantry type carrying all processing heads, moving on common rails system and having a unique common cutting table with very big length (tandem system)



BASIC MACHINE FEATURES

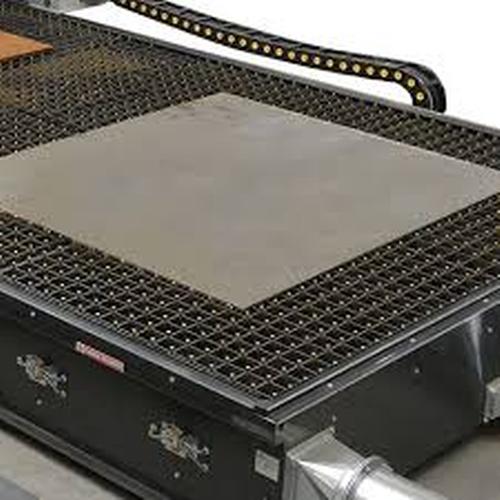

Cutting Bench made of a sturdy grid suitable to guarantee the stable positioning of the plate during processing. The bench is pre-arranged to receive the Fume Exhaust and Filtering System.

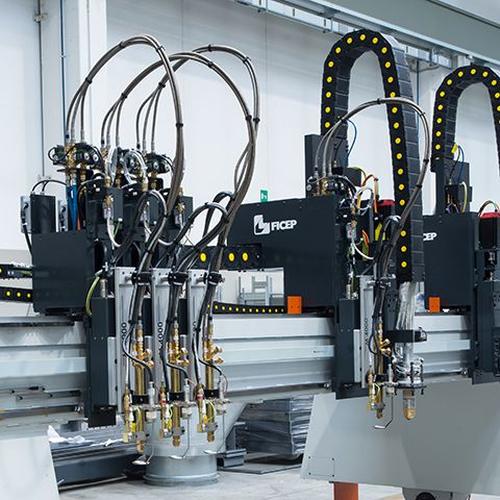

KRONOS series can be equipped with up to four (4) OXY cutting torches to cover all manufacturing needs

One or two High-Definition plasma torches for straight or bevel cut, from HYPERTHERM  HPR 130 XD  to the brand new  XPR 300. HYPERTHERM True Hole Technology is available on this model and as a result the machine  can really satisfy all cutting requirements.

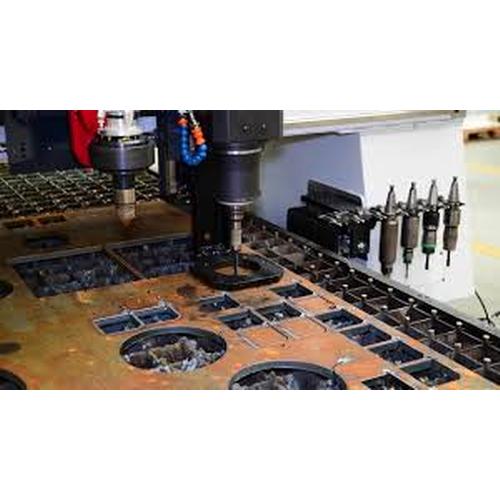

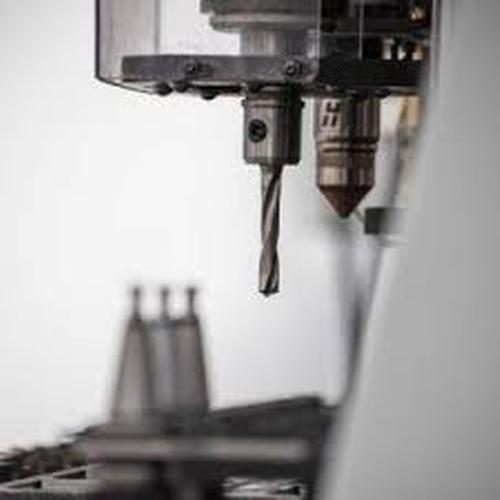

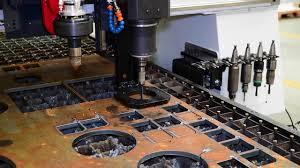

KRONOS series have the possibility to be equipped with a drilling unit with 4 positions Tool Change to allow pre-hole operations.

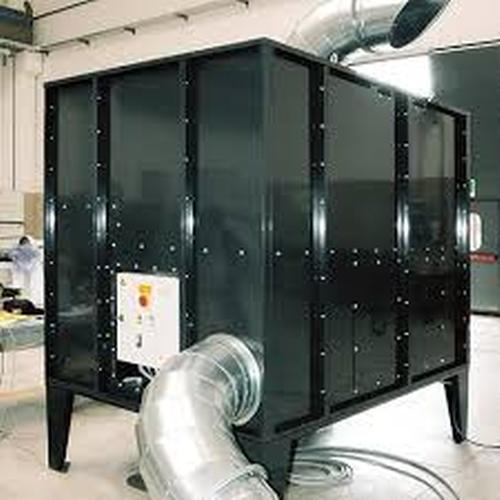

The Exhaust System filters the fume generated by thermal cutting operations. The air is cleaned according to the latest Health and Safety requirements.



AUTOMATIC GANTRY CNC THERMAL CUTTING SYSTEM FOR PLATES – KRONOSKR25SPKR32SPKR36SPKR25HPKR32HP

Plate size [max mm]

 2540x6000 3100x6000 3600x6000 2540x6000 3100x6000

Plate thickness with plasma [max mm]

 80 80 80 80 80

Plasma straight torches [max no.]

 1 1 1 2 2

Plasma bevel torches [max no.]

 1 1 1 2 2

Plate thickness with oxy [max mm]

 150 150 150 150 150

Oxy-fuel torches [max no.]

 4 4 4 4 4

Drilling heads [max no.]

 1 1 1 1 1

Drilling tools per head [max no.]

 4 4 4 4 4

Drilling diameter [max mm]

 16/24 16/24 16/24 16/24 16/24

Spindle power [kW]

 5,5 5,5 5,5 5,5 5,5

Machine weight [kg]

 2500 2800 3000 2500 2800



AUTOMATIC GANTRY CNC THERMAL CUTTING SYSTEM FOR PLATES – KRONOSKR36HPKR153PCKR204PCKR206PCKR208PC

Plate size [max mm]

 3600x6000 1500x3000 2000x4000 2000x6000 2000x8000

Plate thickness with plasma [max mm]

 80 65 65 65 65

Plasma straight torches [max no.]

 2 1 1 1 1

Plasma bevel torches [max no.]

 2 - - - -

Plate thickness with oxy [max mm]

 150 - - - -

Oxy-fuel torches [max no.]

 4 - - - -

Drilling heads [max no.]

 1 - - - -

Drilling tools per head [max no.]

 4 - - - -

Drilling diameter [max mm]

 16/24 - - - -

Spindle power [kW]

 5,5 - - - -

Machine weight [kg]

 3000 4000 5000 7500 10000

OXY CUTTING

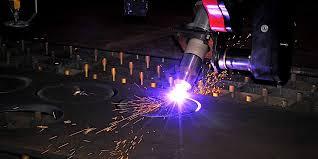

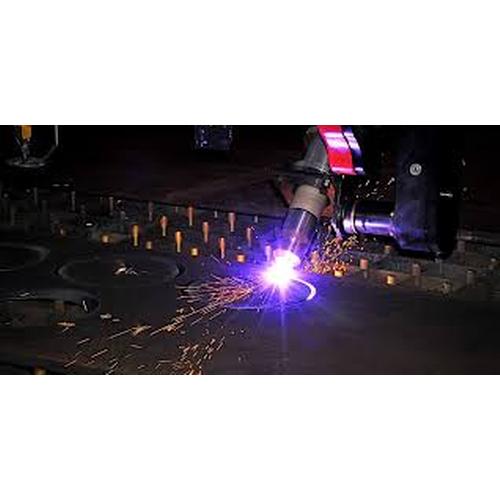

PLASMA CUTTING

BEVELING PROCESS / WELDING PREPARATIONS OF PIECES

DRILLING

MARKING

SCRIBING

TAPPING

Long term accuracy and high reliability

Multi-Tasking Lines capable to carry out common as well as special operations required in the steel construction industry

Installation of the overall system in one step with possibility to add a second system (another KRONOS machine or GEMINI machine) at later stage (tandem system)

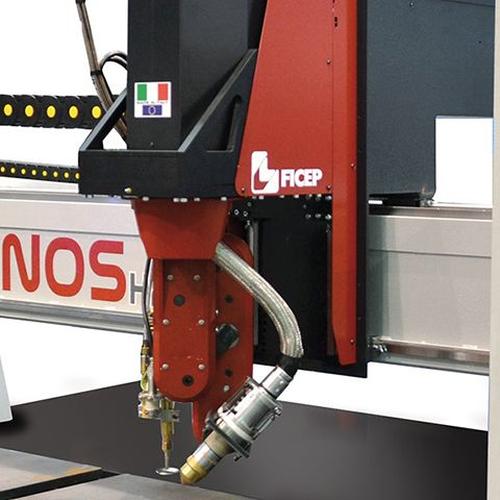

Patented plasma Bevel Head, which can perform beveling process and welding preparations of pieces

Remote diagnosis is possible through a network connection that allows FICEP service team to perform checks and resolve possible problems that can appear

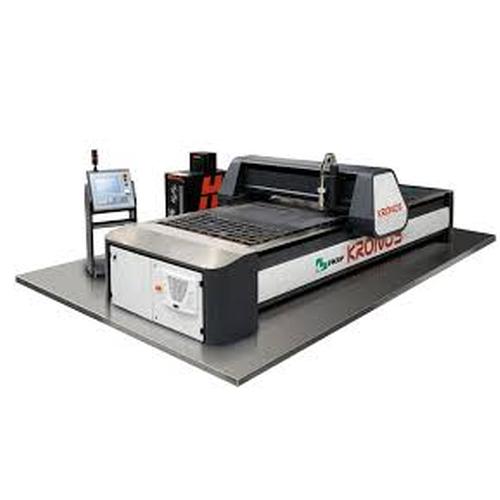

KRONOS machine is available also in version PC only for plasma cutting process, with integrated table and electric cabinet and as a result it is an economic solution providing also space saving and reduced installation time.
