HM2000 Headmaster

Code: MIR01
Brand: MIRA MINELLI

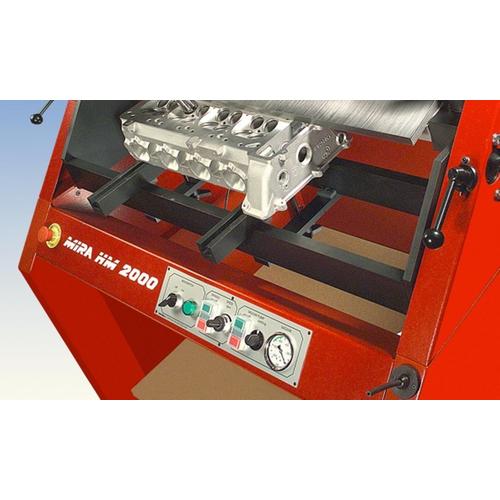

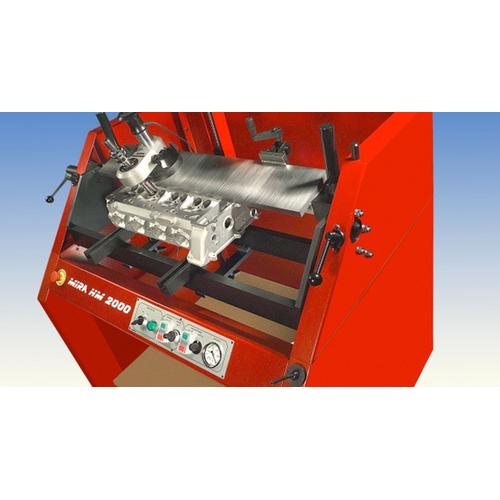

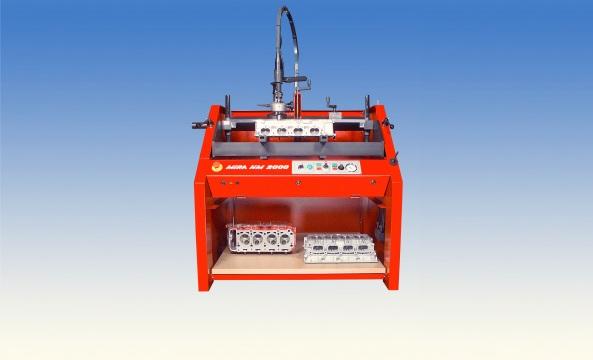

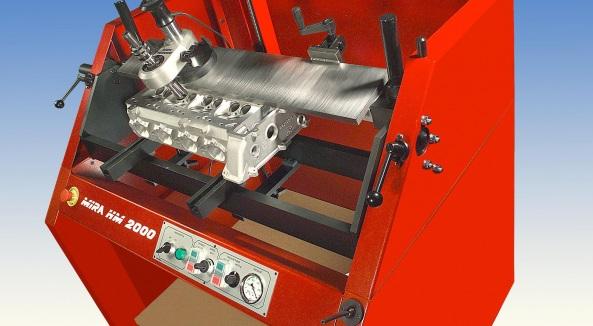

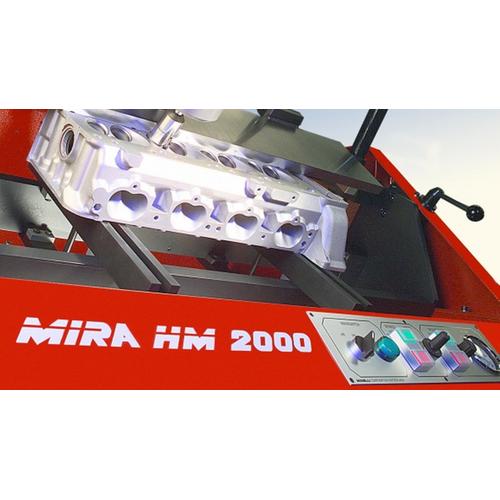

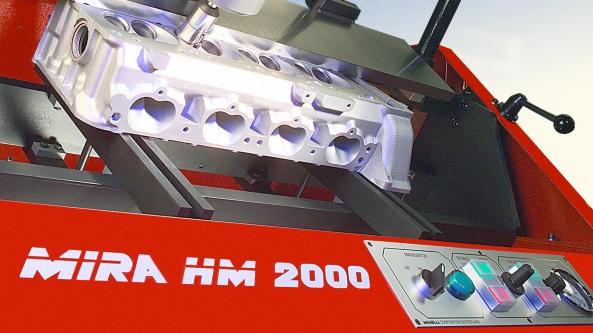

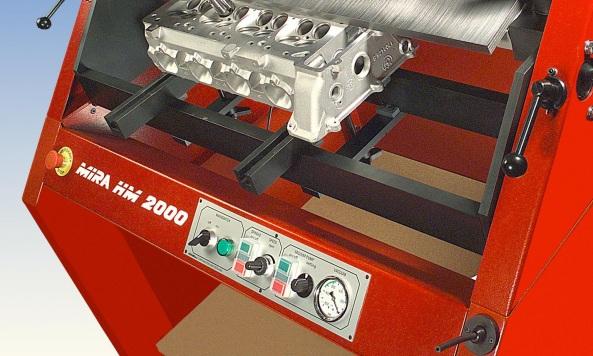

HM-2000-HD Headmaster- The Universal Cylinderhead Center

The HM-2000-HD is a versatile complete and sturdy working center which satisfies highest requirements. Almost any kind of cylinderheads can be quickly fixed into place by means of a universal quick-locking fixture.

Complete HM-2000-HD "Headmaster" Center inclusive the innovative AV96 rotating cylinderhead locking fixture, special toolholder, integrated MIRA Vario-Drive electronic variable speed drive and MIRA Multivac vacuum test unit. The Headmaster can be equipped with all current MIRA Valve Seat Refacing Systems.

  • 800mm/300° rotating heavy duty cylinder head support
  • Integrated MIRA Vario-Drive electronic variable speed drive
  • MIRA Multivac vacuum test unit
  • HDT-20 steel table
  • Storage table
  • Colour: RAL Red
Max. Cylinderhead lenght 800 mm
Rotation head support 300°
Vario - Drive Spindle Speed 0 - 270 1/min
System Voltage 110/230 Volt   50/60 Hz
Flore space requirements 145 x 115 x 140 cm
Machine weight 440 kg gross  /  335 kg net
  • Toolhead DT05 16-25mm
  • Toolhead DT2 37-55mm
  • Toolhead DT3 35-75mm
  • DSD double edged toolhead 26-36mm 0 or 5°
  • DSD double edged toolhead 35-45mm 0 or 5°
  • DSD double edged toolhead 45-55mm 0 or 5°
  • DSD double edged toolhead 55-75mm 0 or 5°
