"SP" SERIES : HYDRAULIC CNC MACHINE FOR ANGLES PUNCHING AND SHEARING

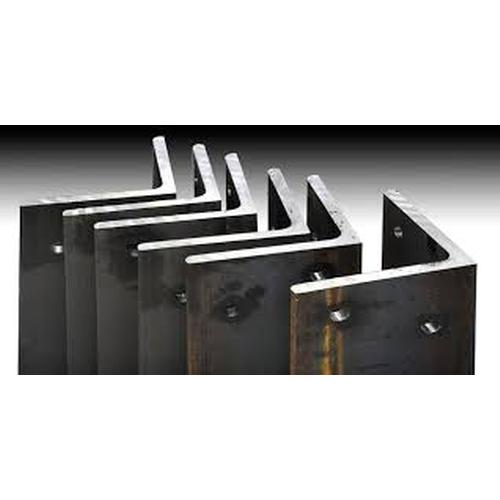

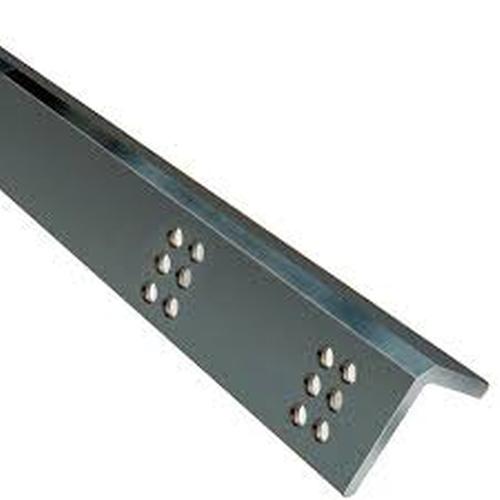

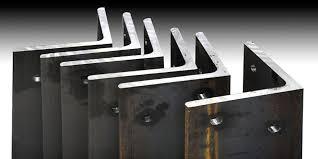

FICEP "SP" series lines are exceptional CNC Punching and Shearing work cells where an angle enters as a stock length and exits as a completed part, after a combination of programmed processes such as punching, marking and shearing.

These modular lines can have different configurations, both in terms of size and capacity and provide flexibility and simple use.

The "SP" series machines are designed and manufactured to address the various fabrication needs in one single pass.

TECHNICAL FEATURES

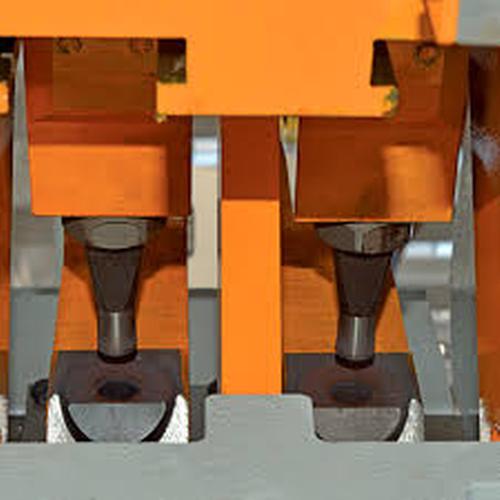

PUNCHING UNITS : The angle lines of "SP" series are equipped with one (1), two (2) or three (3) punching units per flange. Each one is fitted with easy removable punch-holders for quick punch and die change

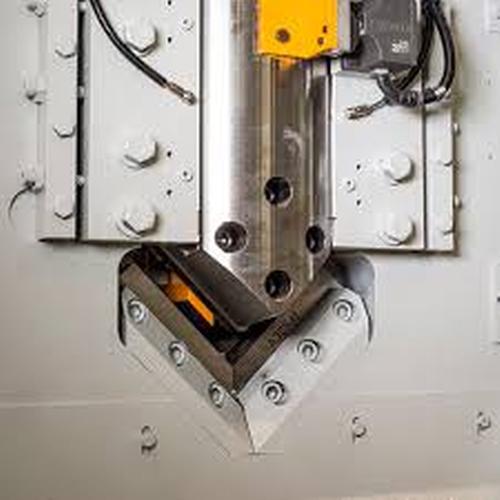

SHEARING UNIT : Single cut shear with special hold-down systems for utmost shearing precision. All shearing blades are manufactured internally to guarantee best quality and longer tool life

MARKING UNIT : Marking of pieces is possible thanks to a drawer-type marking device

HIGH PERFORMANCE HYDRAULIC POWER PACK : thanks to outstanding improvements to the hydraulic circuits, a considerable reduction in cycle times is obtained with over 20% higher performance

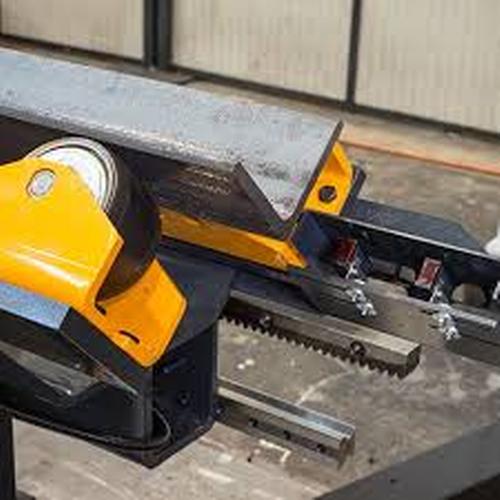

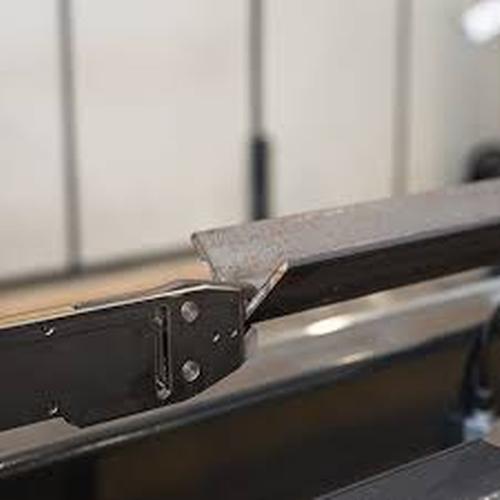

FAST ANGLE FEEDING SYSTEM : high speed carriage with pincher system for fast and accurate angle feeding through the working units

BAR LENGTH DETECTION : thanks to a Laser device positioned on the infeed rollerway it is possible to exactly detect the bar length and position

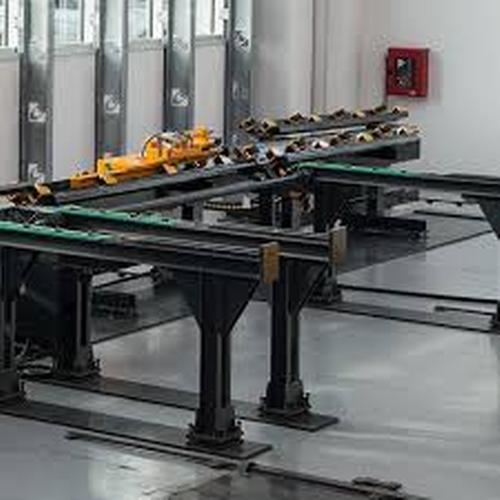

IDDLE ROLLS CONVEYORS : Infeed and Outfeed conveyors fitted with iddle rolls for manual profiles handling

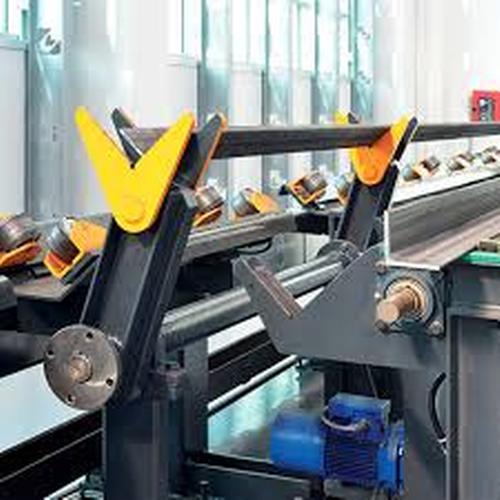

ROTATING LOADING SYSTEM : Special system with V-shaped supports for the automatic loading of the angles onto the infeed iddle rolls conveyor

CROSS TRANSFER SYSTEM : All FICEP lines can be configured with infeed and outfeed cross transfer tables to allow Automatic Loading / Unloading of bars and processed pieces
