"A" SERIES : HYDRAULIC CNC ANGLE PUNCHING AND SHEARING MACHINE

FICEP "A" series lines are CNC Punching and Shearing equipment for the processing of angles studied for small and medium size steel construction companies.

These lines provide flexibility and simple use and are characterized by an innovative infeed roller conveyor system allowing high precision with minimum loss of material.

TECHNICAL FEATURES

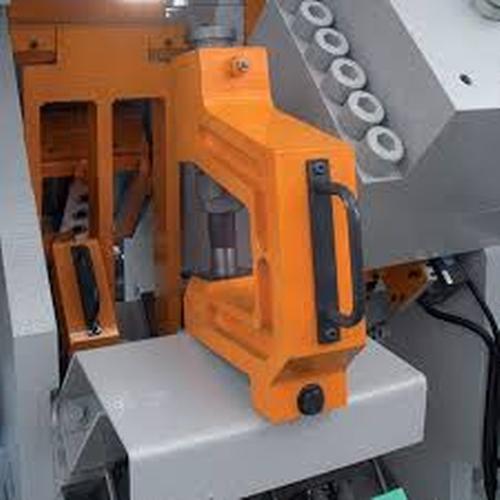

PUNCHING UNITS : The angle lines of "A" series are equipped with one (1), two (2) or three (3) punching units per flange. Each one is fitted with easy removable punch-holders for quick punch and die change

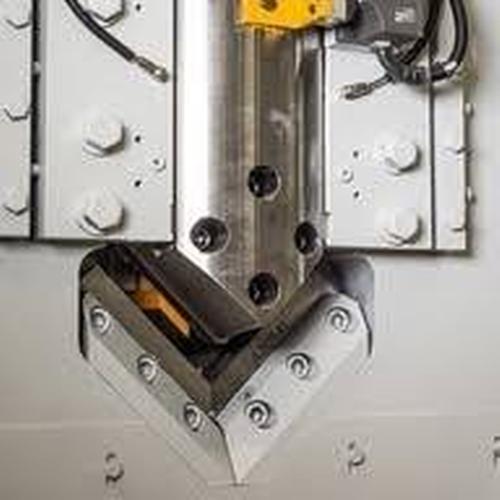

SHEARING UNIT : Single cut or Double cut shears with special hold-down systems for utmost shearing precision. All shearing blades are manufactured internally to guarantee best quality and longer tool life

MARKING UNIT : Marking of pieces is possible thanks to the rotating disc marking unit

FLATS PUNCHING : FICEP "A" lines can be equipped with a flat processing device, complete with relevant hold-down system

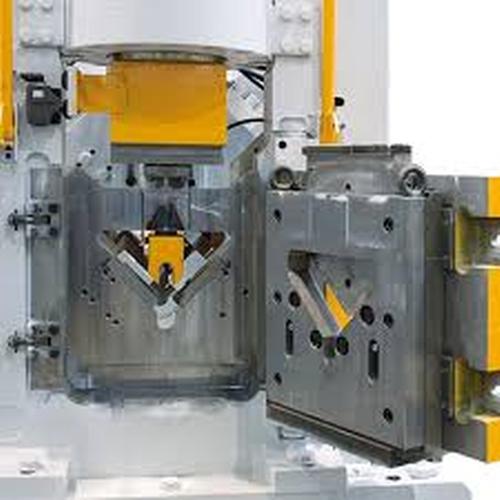

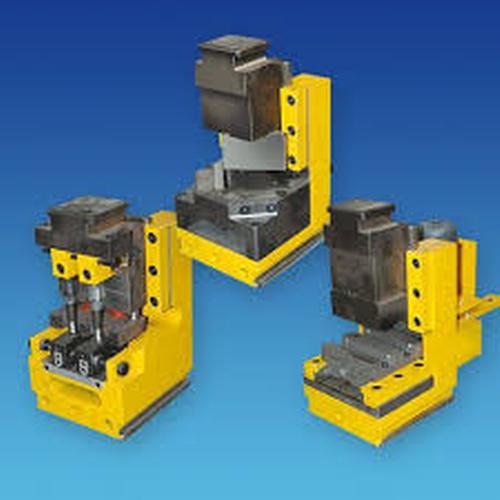

FLATS AND CHANNELS SHEARING : Special shear with quick-change system suitable to receive blades and relevant blade-holders for angles, flats and channels

MULTI-FUNCTIONS UNIT : Special versa press which allows to set up the line with additional marking-tool, double-punching unit and notching unit

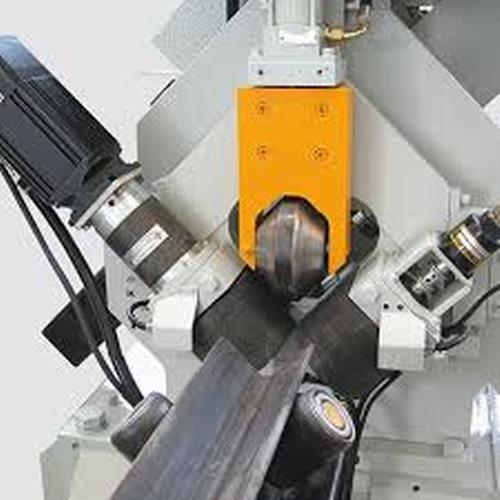

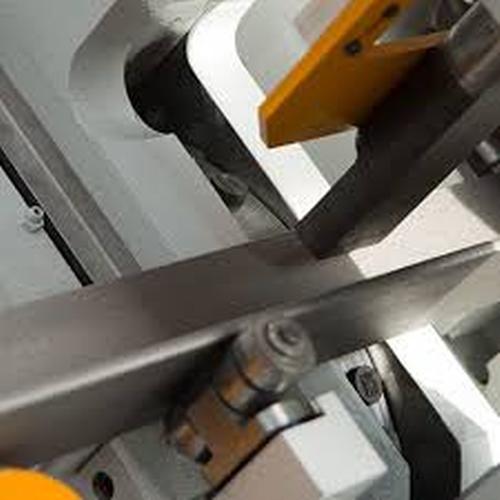

BAR POSITIONING AND MEASURING SYSTEM : This CNC controlled system consists of two rolls to support and transfer the angles and one hold-down to ensure profile positioning

IDDLE ROLLS CONVEYORS : Infeed and Outfeed conveyors fitted with iddle rolls for manual profiles handling

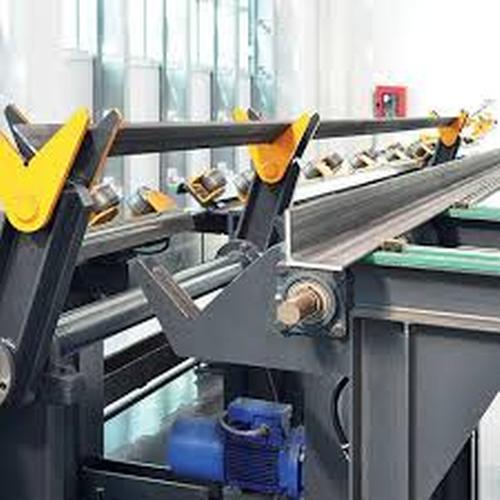

ROTATING LOADING SYSTEM : Special system with V-shaped supports for the automatic loading of the angles onto the infeed iddle rolls conveyor

CROSS TRANSFER SYSTEM : All FICEP lines can be configured with infeed and outfeed cross transfer tables to allow Automatic Loading / Unloading of bars and processed pieces
