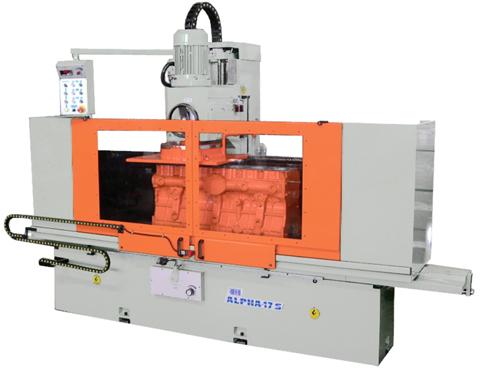

ALPHA 15 - 17

Κωδ.: ROB02

Κατασκευαστής: ROBBI

Max. grinding lenght	mm.	1300	1650
Max. grinding width	mm.	410	410
Max surface milling width	mm.	400	400
Working surface of table	mm.	1300×360	1500×400
Max. long. table table travel	mm.	1500	1850
Automatic table feed per minute	mm.	0÷3000	0÷3000
Distance centre of spindle to column guides	mm.	420	420
Min. height table to grinding wheel	mm.	150	200
Max. height table to grinding wheel	mm.	850	950
Vertical wheel head feed	mm.	700	750
Diameter of segmented grinding wheel	mm.	420	420
Diameter of milling cutter	mm.	320	350
Wheel speed rotation	r.p.m.	180 – 1400	180 – 1400
Main spindle rotation motor 50 Hz:	Cv.	6.5	6.5
Main spindle rotation motor 60 Hz:	Cv.	7.5	7.5
Spindle motor	Cv.	1.3 / 0.8	1.3 / 0.8
Hydraulic pump motor	Cv.	1	1.25
Coolingpump motor	Cv.	0.12	0.12
Dimensions	mm	3200×1350	3600×1350
Workspace required	mm	4700×1350	5500×1350
Dimensions of shipping box	m	2.52×1.58×2.40	3.22×1.58×2.40
Approx. net weight	Kg	2200	2800
Shipping weight approx.	kg	2450	3150
