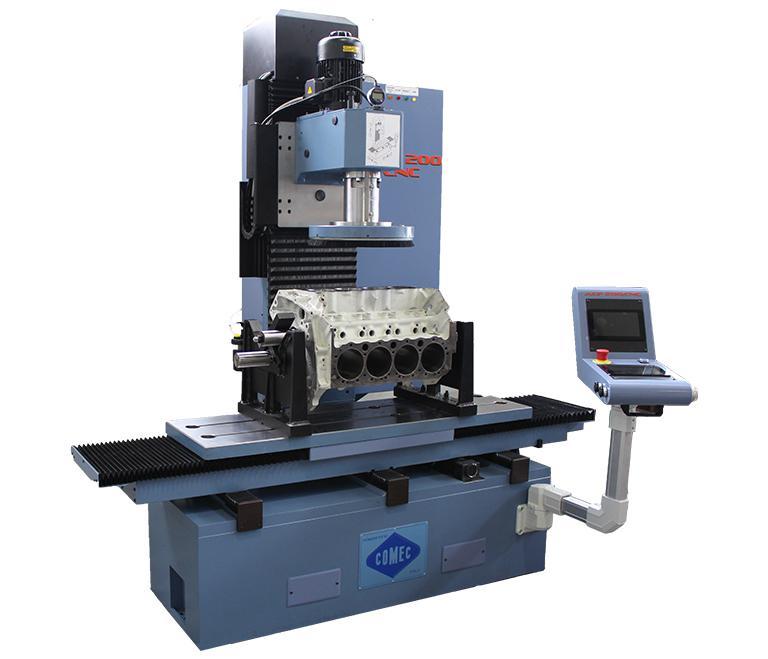

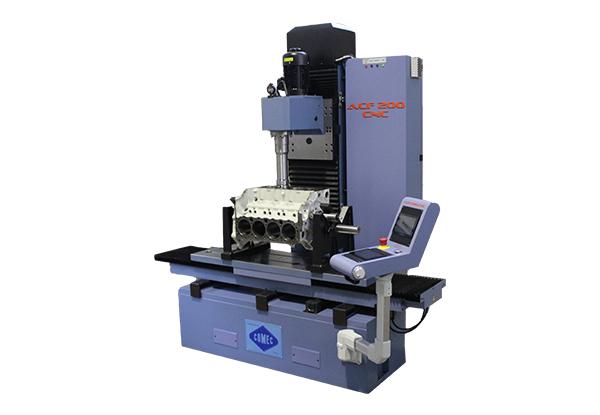

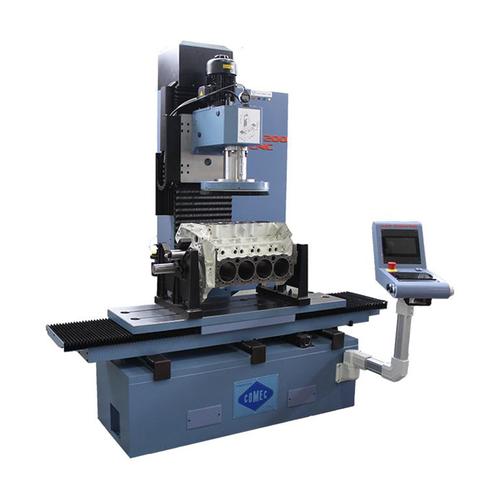

ACF200 - CNC

Κωδ.: COM29
Κατασκευαστής: COMEC

Brochure

  • Computer Numerical Control using LINUX Operating System and ARMv8 CPU Processor
  • Precision Ball screw drives on 3 Axis
  • Movements by linear railways on 3 Axis
  • Brushless motors on 3 axis controlled by CNC
  • Swing arm control panel with double touch screens
  • Electronic Handwheel for manual displacement on 3 Axis (Fast-Medium-Fine speeds)
  • Full automatic and programmable working modes for boring and milling operations
  • WI-FI and LAN connections for support and service
  • PV0160 pair of parallel supports
  • PV0021 large clamps (2 pcs.)
  • PV0022 small clamps (4 pcs.)
  • Wrench set
  • Instruction manual
Boring range
30÷170 mm
Max head vertical travel
700 mm
Min-Max distance from head to table
370÷1020 mm
Distance between spindle C/L and column
290 mm
Table surface
1340x370 mm
Max table longitudinal travel
1200 mm
Max table transverse travel
200 mm
Adjustable spindle rotation speed
75÷850 rpm
Adjustable boring bar feed
0÷3000 mm/min.
Adjustable table feed
0÷3000 mm/min.
Spindle motor power
1.5 kW
Rapid feed motor power
1.27 N/m
Table and travers feed motor power
1.27 N/m
Dimensions (LxWxH)
2045x1245x2175 mm
Weight
1540 Kg
