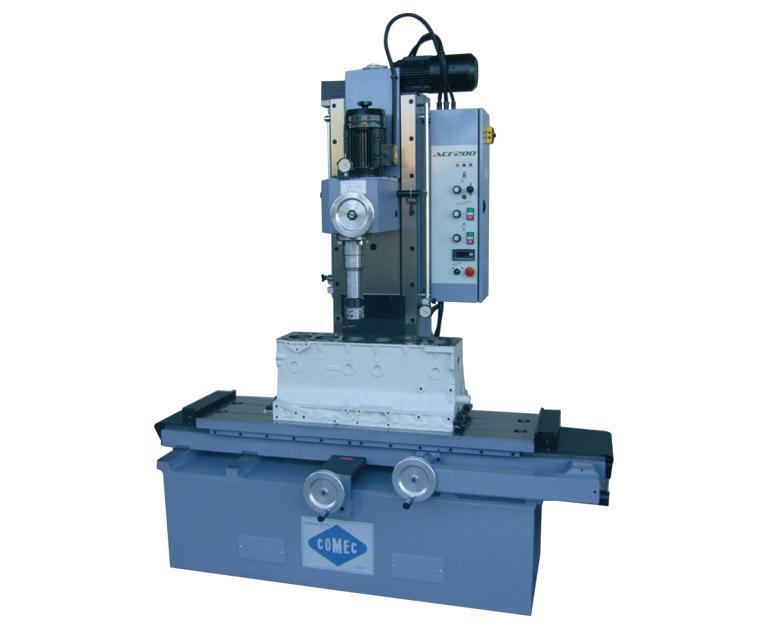

AC200

Κωδ.: COM27
Κατασκευαστής: COMEC

Brochure

  • Adjustable spindle speed with digital indicator
  • Adjustable boring bar feed
  • Adjustable table feed (only model ACF)
  • Tool setting dial indicator with magnetic base
  • Depth of boring device with dial indicator
  • Precision centering device with dial gauge
  • Adjustable control stop
  • PV0160 Pair of parallel supports
  • Wrench set
  • Instruction manual
Boring range
30÷170 mm
Max head vertical travel
670 mm
Min-Max distance from head to table
370÷1020 mm
Distance between spindle C/L and column
290 mm
Table surface
1340x370 mm
Max table longitudinal travel
1200 mm
Max table transverse travel
200 mm
Adjustable spindle rotation speed
75÷850 rpm
Adjustable boring bar feed
0÷175 mm/min.
Adjustable table feed
0÷460 mm/min.
Spindle motor power
1.5 kW
Rapid feed motor power
0.37 kW
Table feed motor power
0.55 kW
Dimensions (LxWxH)
1860x1150x2170 mm
Weight
1380 Kg
