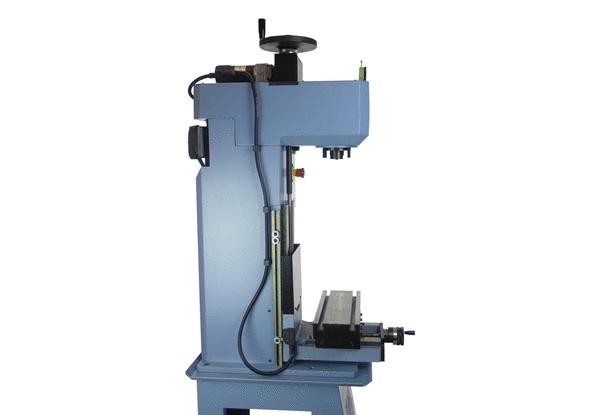

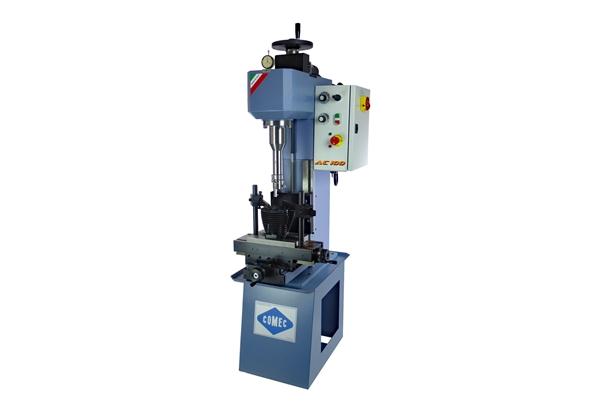

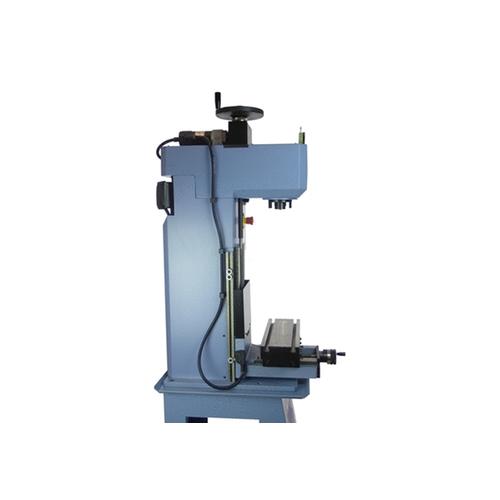

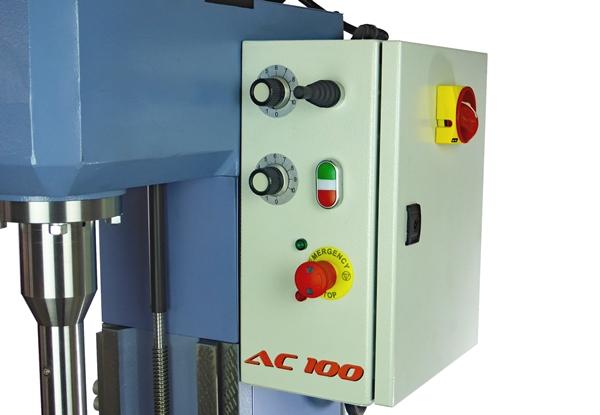

AC100

Κωδ.: COM24
Κατασκευαστής: COMEC

Brochure


  • Adjustable spindle speed
  • Adjustable table feed speed

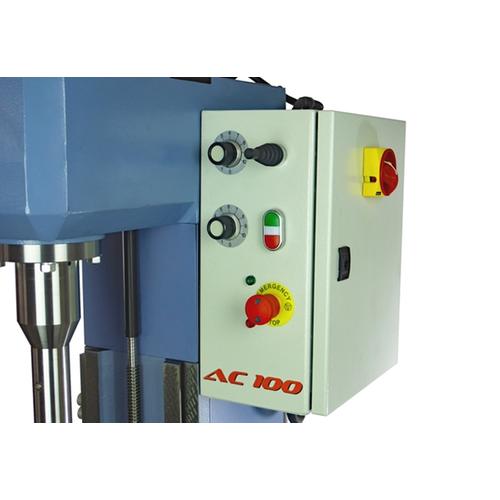

  • Head power button

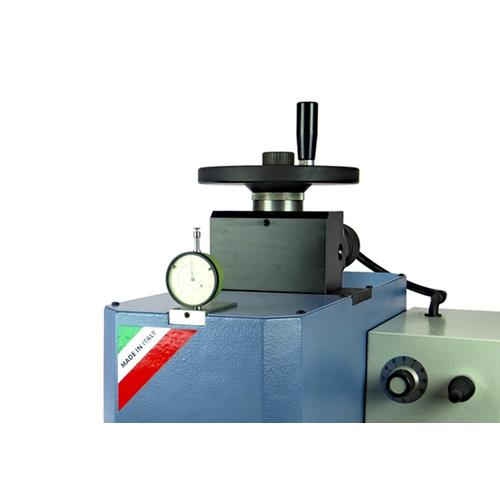

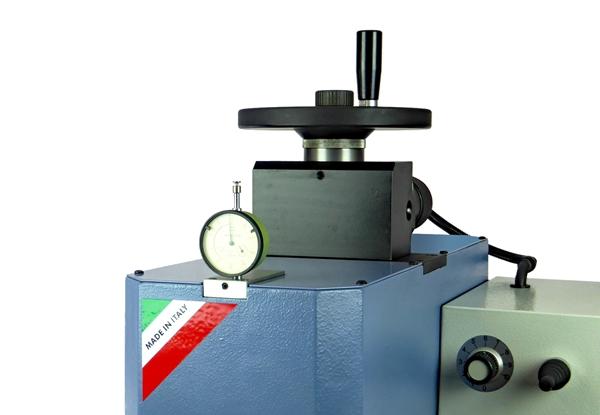

  • Boring depth device with dial indicator

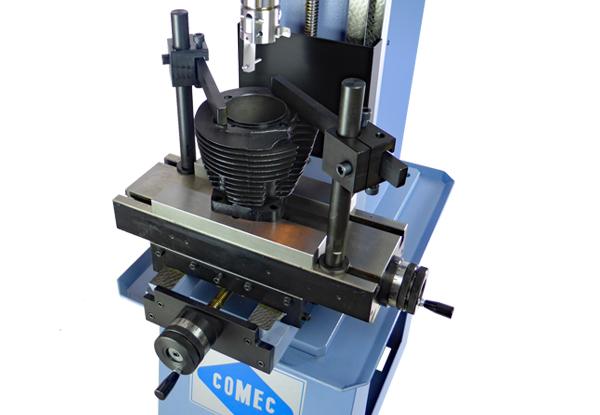

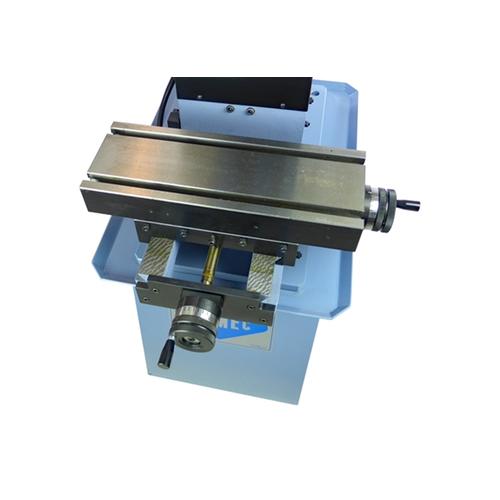

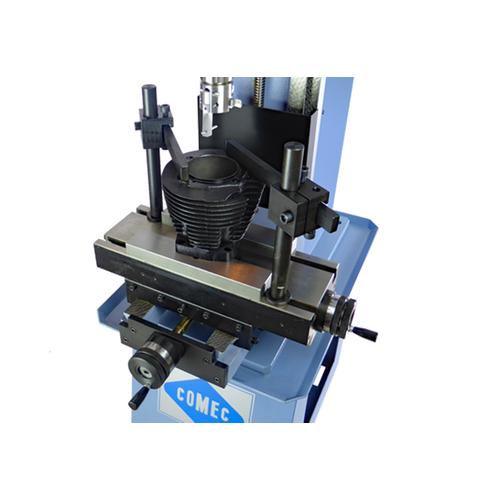

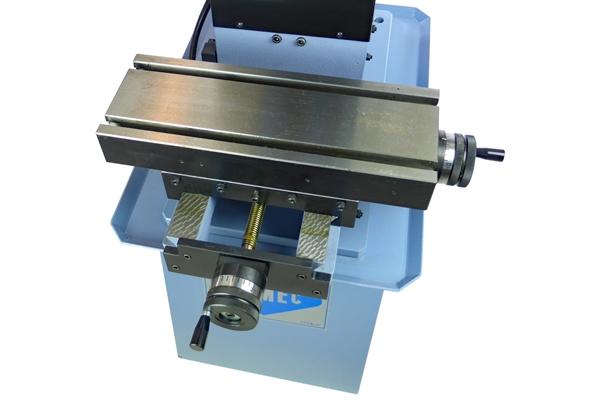

  • Cross table for quick positioning and centering of cylinder
  • Precision centering device with dial gauge
  • Adjustable control stop
  • Wrench set
  • Instruction manual
Boring capacity
30 ÷ 125 mm
Boring speed
100 ÷ 660 RPM
Min-Max distance from head to table
570 mm
Distance from spindle axis to column
140 mm
Table surface
400 x 150 mm
Max longitudinal table travel
195 mm
Max transverse table travel
60 mm
Table feed
1 ÷ 70 mm/min
Spindle motor power
1.5 kW
Dimensions
600x350x1600 mm
Weight
300 kg
