CUTTING CAPACITIES
90º -45º +45º +60º
Round profile 330 260 280 170 (mm)
Square profile 320 220 250 150 (mm)
Rectangular profile 450x240 310x100 270x240 170x125 (mm)
TECHNICAL DATA
- Blade rotation speed (m/1') 32-64
- Vice opening (mm) 450 (optional 500)
- Machine dimensions (Length x Deapth x Height / mm) 1000 x 2000 x 2000
- Machine weight (Kg) 1100
STANDARD FEATURES
- Robust basement structure in steel, powder painted with bright and smooth finishing

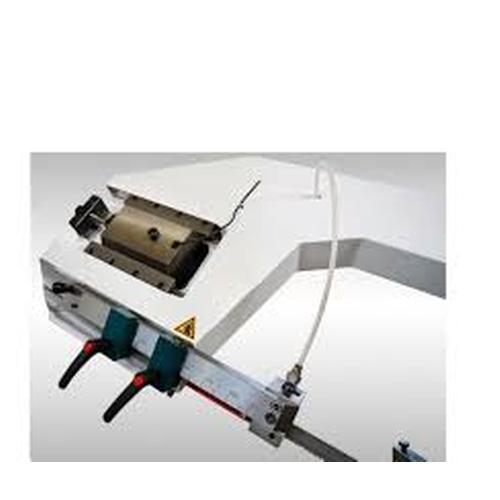

- Robust head structure made in one unique piece of structural steel
- Patented hydraulic device for adjusting the feed and cutting pressure
- Blade Motor 1.4 / 2.4 KW - two speed regulation - 32-64 m/min
- Inclined cuts up to -45 ° / +60 °. Rotation of the arc on tapered roller bearings and independent from the
workpiece support surface

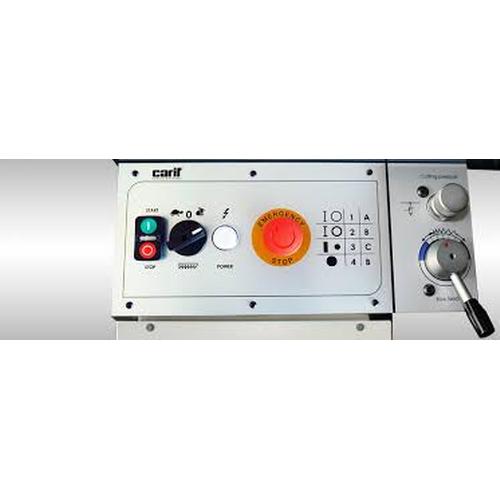

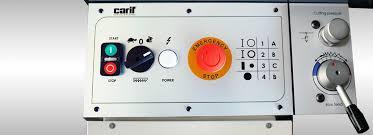

- Front console for setting cutting speed, bow feed and pressure
- Eccentric roller for short piece cutting

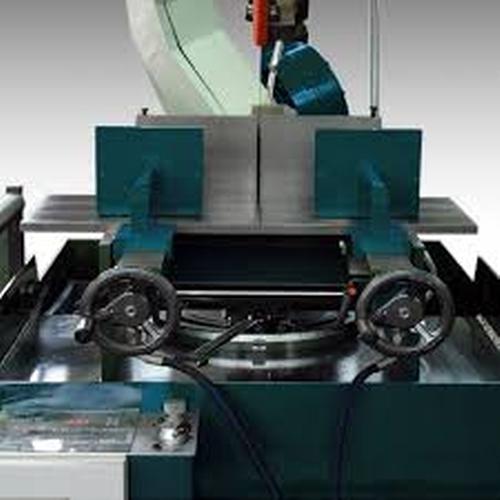

- Wide Plans for piece support for a comfortable and practical cutting area
- Coolant tank inside the base with a capacity of 50 Liters, complete with 3ph electric pump 0,1KW

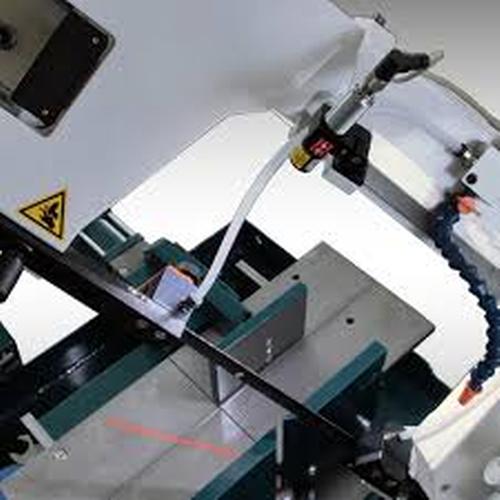

- Sensor for monitoring blade rotation
- Measuring device L=500mm with height adjustment
- Large chip container for easy cleaning
- Bimetal blade M42 mm 3660x34x1.1
- Box + pallet packaging, service keys, instruction manual and spare parts
- 12 months warranty on mechanical spare parts
BROCHURE

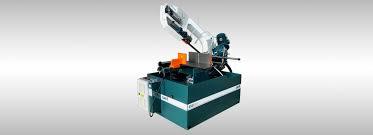

The model CARIF 450 BSA models is completely Hydraulic: closure of the vice, bow feed and pressure. The CARIF hydraulic patented system has been designed with two (2) commands : BOW FEED and CUTTING PRESSURE. Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness
Increased productivity : No operator during cutting cycle / zero stops during cycle
Always straight cut : Auto-regulation of blade-stress based on material hardness and section
Longer blade life : Slows down the bow descent without straining the blade when worn out
Easy to use : Practical, simple and ergonomic operations
Fast cutting operations : Fully hydraulic cycle. More efficiency
- Air/oil lubrication system (two elements), including tank of 3lt capacity
- Digital angle display
- Laser-line for positioning

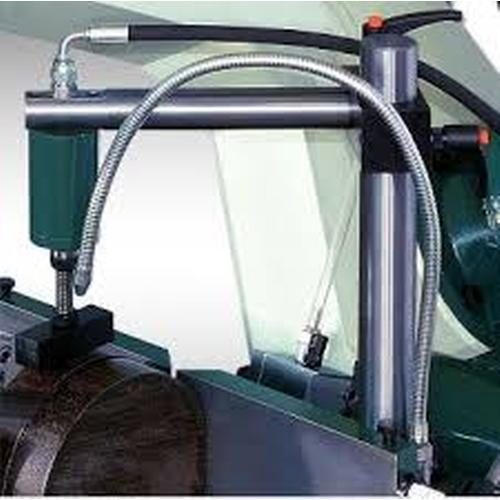

- Hydraulic device for vertical clamping of bars
- Additional Double vice (for specific cutting)
- Flushing hose for cutting chips removal and cleaning
- Working LED light
- Thickness for cutting at 90°

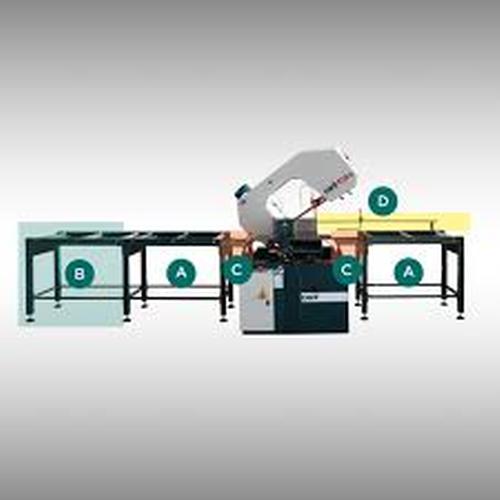

Roller Units W500
- Modular roller-unit type “A” : length 1m – width 500 mm – capacity 3 t/m
- Modular roller-unit type “B” : length 1m – width 500 mm – capacity 3 t/m
- Plan type “C” for connection roller-unit type “A” to the machine :width 500mm
MEASURING DEVICES

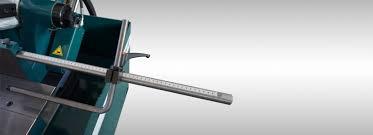

1. MEASURING DEVICE GRADUATED

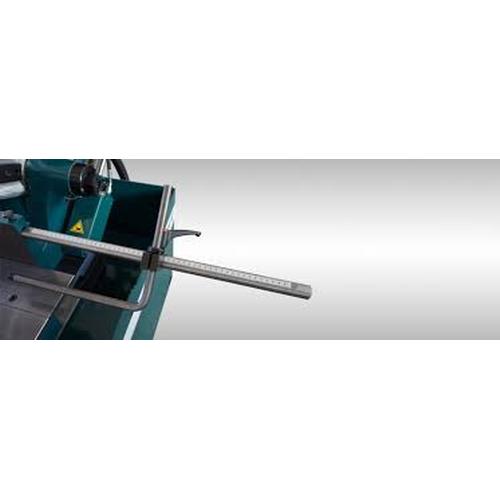

Steel rod with groove for measuring tape. Hard stop equipped with measuring index and height set.
Length: L=1m

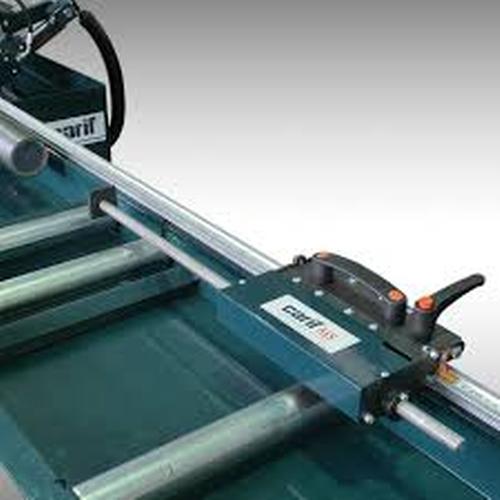

2. MANUAL MEASURING SYSTEM
CARIF MS (Measuring System) is a modern and comfortable device to precisely and quickly adjust the right cutting length. Practical and robust hard stop trolley assembled on n.2 linear carriages auto-lubricated for a smooth sliding on a T guide rail aluminium anodised. Possibility to lift the trolley to free the roller tables from the material. Easy to mount on every type of roller unit.
MS (MEASURING SYSTEM WITH GRADUATED SCALE) Standard Equipment:
• Hard-anodized aluminum rail • Stop carriage with 2 sliding trolleys • Extension to reach the blade point • Packaging with card-board box
Advantages of the system:
• 100% lubricant-free • High dirty resistance • Corrosion resistance • Low noise and vibration • Simple and easy assembling/disassembling • Maintenance free without lubrication
Carif MS length (Excl. Roller units):
• Starting length L=2mt • Over 2mt possibility to extend every mt : Length= 3mt - 4mt - 5mt - 6mt etc.

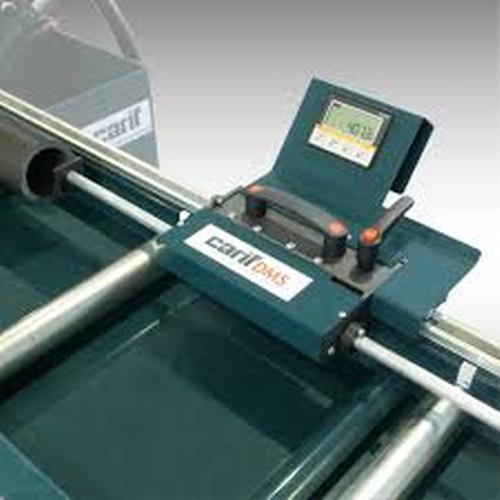

3. DIGITAL MEASURING SYSTEΜ
CARIF DMS (Digital Measuring System) is a modern and comfortable device to precisely and quickly adjust the right cutting length with a wide display. CARIF DMS has been designed to be qualitative competitive, robust and of manteinance free. The system can be supplied together with CARIF roller units or it can be easily adapted on other roller types already in use.
DMS (DIGITAL MEASURING SYSTEM) Standard Equipment:
• Hard-anodized aluminum rail • Wide LCD Display • Stop system with 2 sliding linear carriages • Sensor with Magnetic tape (resolution 0,1 mm) • Extension to reach the blade point (2 offset points: blade point, hard-stop point) • Flexible up-down system
Advantages of the system:
• 100% lubricant-free • Maintenance free • Corrosion and dirty resistance • Low noise and vibration • Simple and easy assembling
Carif DMS length (Excl. Roller units):
• Starting length L=2300mm
Over 2mt possibility to extend every mt: L=3300mm - 4300mm - 5300mm - 6300mm etc.
