450 BA CNC

Code: CARIF09

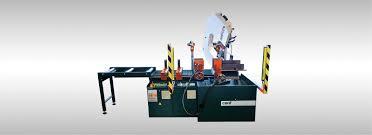

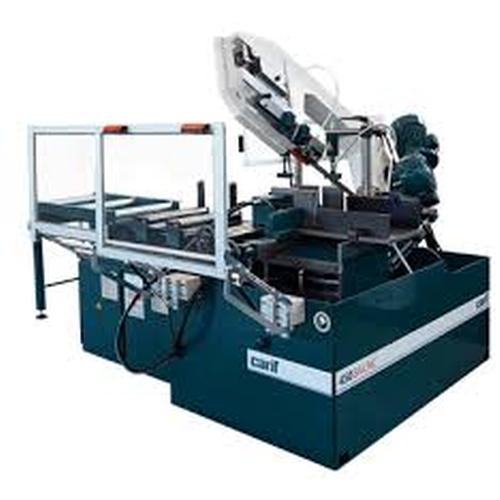

The model CARIF 450 BA CNC, is an Automatic CNC Sawing unit. It provides automatic feeding and clamping of the bars through a mobile vice fully controlled by the CNC, programming of multiple cuts for the same bar and storage of the finished programmes.

The machine is using a Patented Hydraulic System by CARIF, designed for a continuous control and regulation of the BOW FEEDING and the CUTTING PRESSURE. Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness.

Provides the capability of vertical cutting (90º) as well as angle cutting (up to  +60º) process.

The model 450 BA CNC is the most compact automatic saw on the market. Designed with high strength. It is CARIF latest development to provide the highest accuracy standards and to minimize cutting times and adjustments. As a result, increases the productivity and in combination with its very competitive price, becomes the ideal solution in the sawing process.

Through a complete optionals catalogue, all demands for a fast, productive and easy to use cutting process are covered in the best way.

CUTTING CAPACITIES

                                                 90º             +45º           +60º

Round profile                         330              280            170            (mm)

Square profile                        320              250            150            (mm)

Rectangular profile           450x240      270x240     170x125        (mm)

TECHNICAL DATA

- Blade rotation speed with continuous regulation     (m/1')            15-100

- Vice opening    (mm)                 450

- Machine dimensions  (Length x Deapth x Height / mm)             2950 x 2250 x 2000

- Machine weight        (Kg)                 1600

STANDARD FEATURES

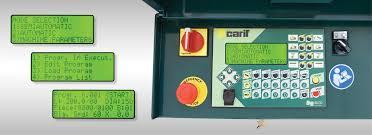

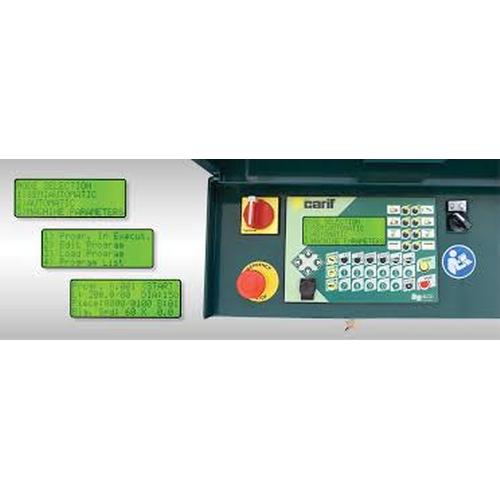

- Two (2) Axes Numerical Control with USB key for updates. Easy and fast storage for up to 100 cutting programmes with visualization of all parameters

- Speed moto-variator, electronic bersion, 4 KW

- Two (2) hydraulic devices for vertical clamping of bars

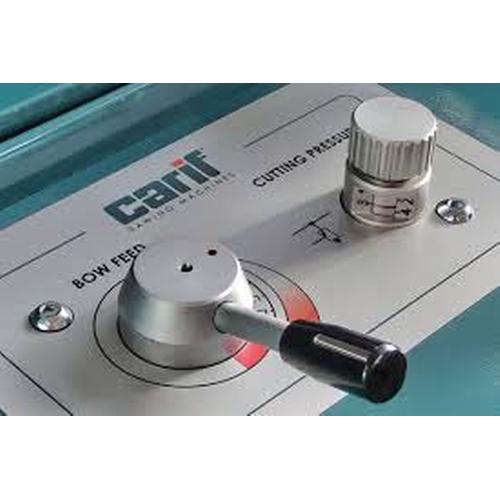

- Hydraulic block for a fine regulation of bow feed and cutting pressure

- Inclined cuts up to  +60 °. Rotation of the arc on tapered roller bearings and independent from the workpiece support surface

- Roller unit L=1mt for bar support

- Hardened and carburized jaws for strong fixture and moving of full bars

- Safety guards

- Complete Coolant equipment, including a tank of 50 Liters capacity, complete with 3ph electric pump 0,1KW

- Sensor for monitoring blade rotation

- LED working light

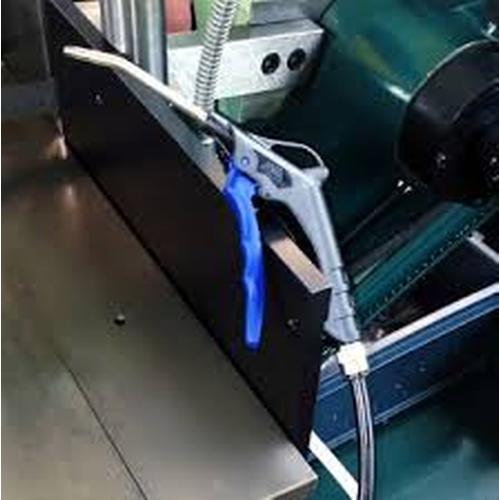

- Flushing hose for cutting chips cleaning

- Bimetal blade M42  mm  2450x27x0.9

- Cardboard Box + pallet packaging, service wrenches, instruction manual and spare parts list

- 12 months warranty on mechanical spare parts

BROCHURE

The model CARIF 450 BA CNC is an Automatic CNC sawing unit:  automatic feeding and clamping of the bars through a mobile vice fully controlled by the CNC, programming of multiple cuts for the same bar and storage of the finished profgrammes.

This machine is using the Patented Hydraulic System by CARIF, designed to provide a continuous control and regulation of BOW FEED and CUTTING PRESSURE. Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness

Increased productivity : No operator during cutting cycle / zero stops during cycle, multiple cuts programming

Always straight cut : Auto-regulation of blade-stress based on material hardness and section

Longer blade life : Slows down the bow descent without straining the blade when worn out

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations : Fully automatic cycle. Ideal productivity and efficiency

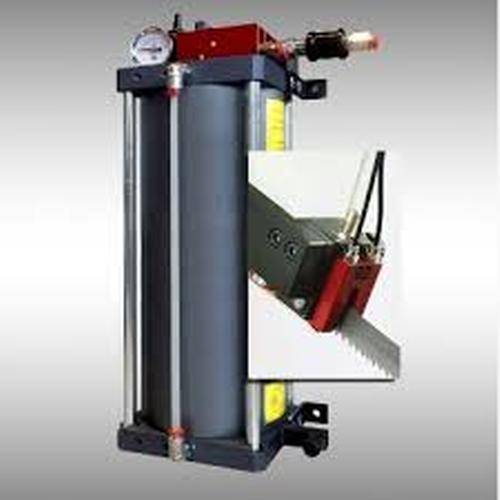

- Air/oil lubrication system (two elements), including tank of 3lt capacity

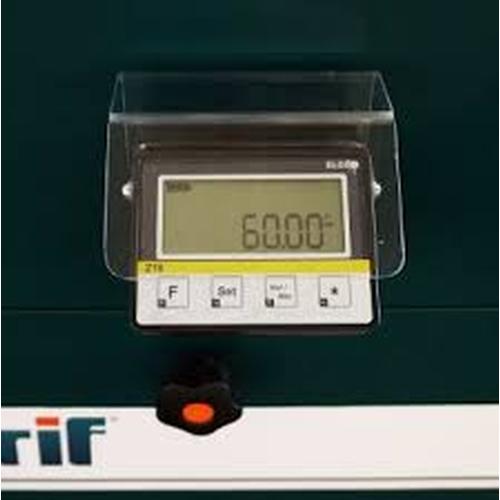

- Digital angle display

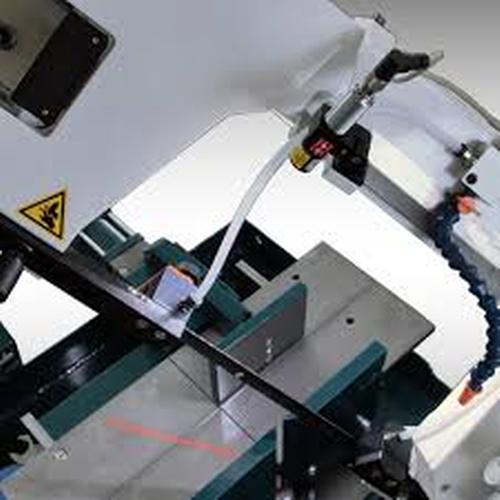

- Laser-line for positioning

- Slide for small parts

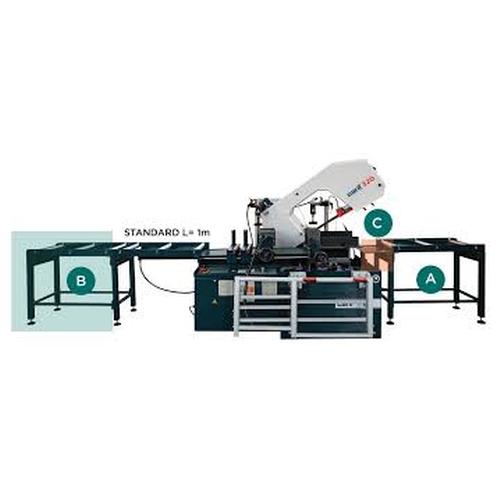

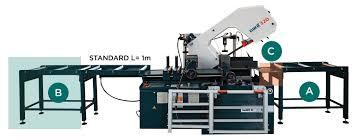

   Roller Units W500

-  Modular roller-unit type “A” : length 1m – width 500 mm – capacity 3 t/m

-  Modular roller-unit type “B” : length 1m – width 500 mm – capacity 3 t/m

-  Plan type “C” for connection roller-unit type “A” to the machine : width 500mm
