CUTTING CAPACITIES

                                                 90º             -45º             +45º           +60º

Round profile                         275              190             200             130            (mm)

Square profile                        265              160             185             130            (mm)

Rectangular profile           320x230      200x100      185x220     120x220        (mm)

TECHNICAL DATA

- Blade rotation speed - Continuous regulation  (m/1')            15-100

- Vice opening  (mm)              320       (optional  400)

- Machine dimensions  (Length x Deapth x Height / mm)             900 x 1450 x 1800

- Machine weight    (Kg)        620

STANDARD FEATURES

- Robust basement structure in steel, powder painted with bright and smooth finishing

- Bow structure in special Aluminum alloy hardened

- Patented hydraulic system for a fine regulation of bow feed and cutting pressure

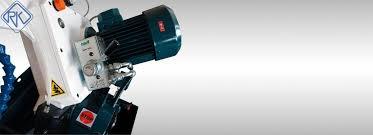

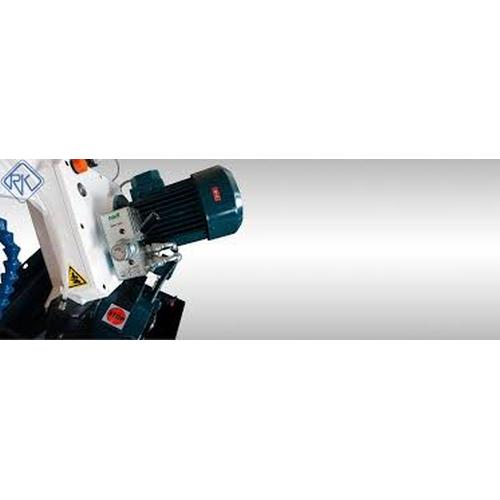

- Speed Moto-Variator 2.2  KW  /  15-100  m/1'

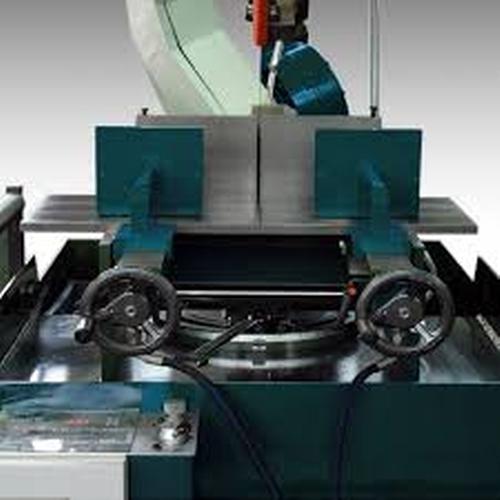

- Miter cutting  -45 ° / +60 °. Bow rotation through conical bearings independent from the plans for piece support

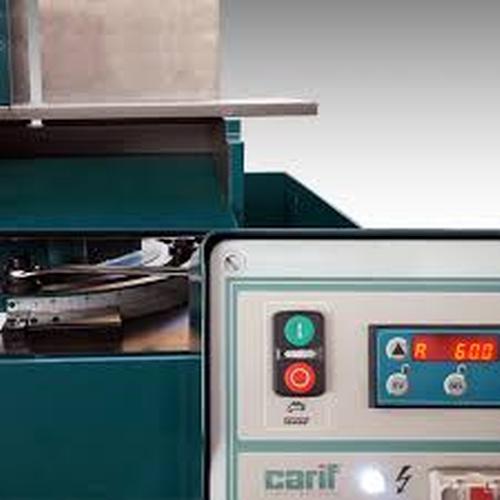

- Electrical cabinet easy to move integrated with front display for : rapid setting of frame position, cutting speed regulation,piece counter

- Wide Plans for piece support for a comfortable and practical cutting area

- Complete Coolant Equipment of 50 Lt tank, with electro-pump 3PH/0,1 KW inside the basement

- Measuring device L=500mm with height adjustment

- Large chip container for easy cleaning

- Bimetal blade M42  mm  3025x27x0.9

- Cardboard Box + pallet packaging, service wrenches, instruction manual and spare parts list

- 12 months warranty on mechanical spare parts

The 320 BSA VAR-E is the most appropriate machine when there are output roller tables because frame height is controlled by the front console

BROCHURE

The model CARIF 320 BSA VAR-E is completely Hydraulic:  closure of the vice, bow feed and pressure. The CARIF hydraulic patented system has been designed with two (2) commands : BOW FEED and CUTTING PRESSURE. Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness

It is equipped with an Electronic Speed Variator 2,2 KW and control board to set frame height.

Increased productivity : No operator during cutting cycle / zero stops during cycle

Always straight cut : Auto-regulation of blade-stress based on material hardness and section

Longer blade life : Slows down the bow descent without straining the blade when worn out

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations : Fully hydraulic cycle. More efficiency

The 320 BSA VAR-E is the most appropriate machine when there are output roller tables because frame height is controlled by the front console

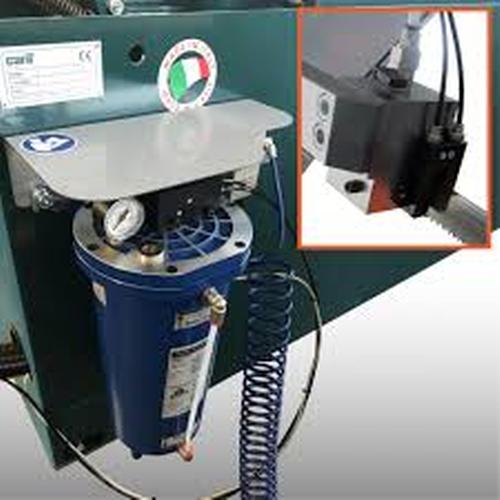

- Air/oil lubrication system (two elements), including tank of 3lt capacity

- Digital angle display

- Laser-line for positioning

- Hydraulic device for vertical clamping of bars

- Additional Double vice (for specific cutting)

- Sensor for monitoring blade rotation

- Flushing hose for cutting chips removal and cleaning

- Working LED light

- Thickness for cutting at 90°

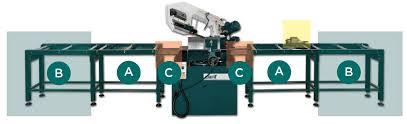

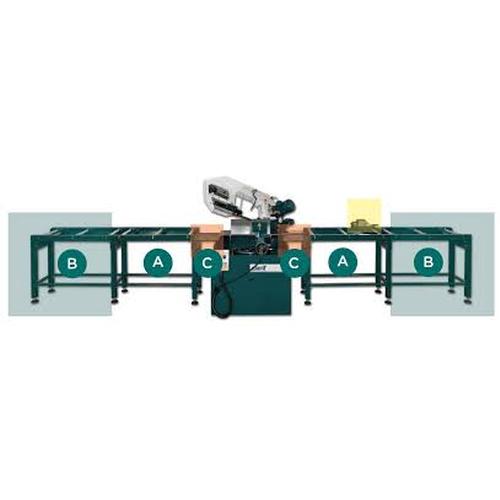

   Roller Units W400

-  Modular roller-unit type “A” : length 1m – width 400 mm – capacity 0,9 t/m

-  Modular roller-unit type “B” : length 1m – width 400 mm – capacity 0,9 t/m

-  Plan type “C” for connection roller-unit type “A” to the machine : width 400mm

   MEASURING DEVICES

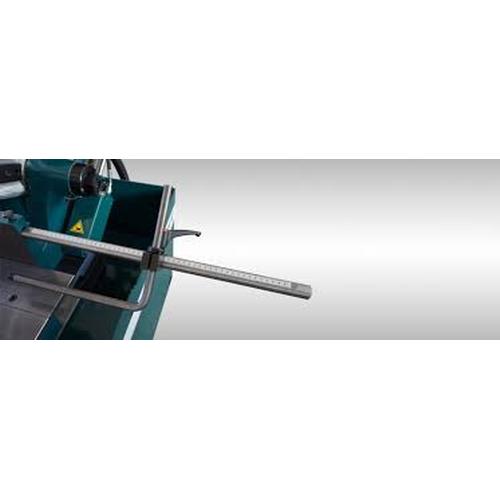

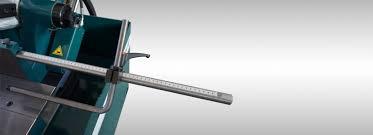

1. MEASURING DEVICE GRADUATED

    Steel rod with groove for measuring tape. Hard stop equipped with measuring index and height set.

    Length:        L=1m

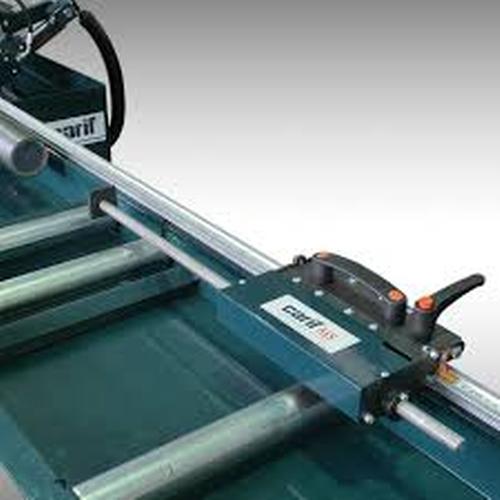

2. MANUAL MEASURING SYSTEM

    CARIF MS (Measuring System) is a modern and comfortable device to precisely and quickly adjust the right    cutting length. Practical and robust hard stop trolley assembled on n.2 linear carriages auto-lubricated for a smooth sliding on a T guide rail aluminium anodised. Possibility to lift the trolley to free the roller tables from the material. Easy to mount on every type of roller unit.

    MS (MEASURING SYSTEM WITH GRADUATED SCALE) Standard Equipment:

    • Hard-anodized aluminum rail • Stop carriage with 2 sliding trolleys • Extension to reach the blade point • Packaging with card-board box

    Advantages of the system:

    • 100% lubricant-free • High dirty resistance • Corrosion resistance • Low noise and vibration • Simple and easy assembling/disassembling • Maintenance free without lubrication

    Carif MS length (Excl. Roller units):

    • Starting length L=2mt • Over 2mt possibility to extend every mt : Length= 3mt - 4mt - 5mt - 6mt etc.

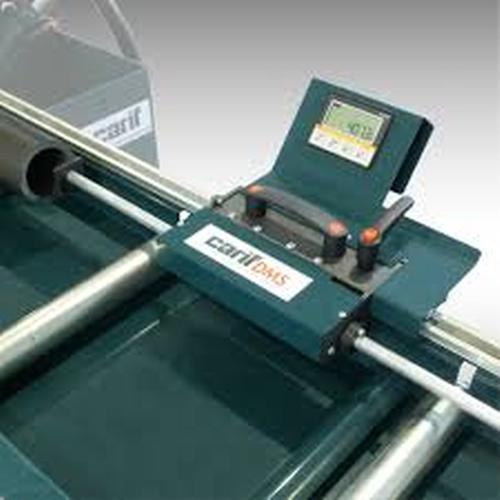

3. DIGITAL MEASURING SYSTEΜ

    CARIF DMS (Digital Measuring System) is a modern and comfortable device to precisely and quickly adjust the right cutting length with a wide display. CARIF DMS has been designed to be qualitative competitive, robust and of manteinance free. The system can be supplied together with CARIF roller units or it can be easily adapted on other roller types already in use.

    DMS (DIGITAL MEASURING SYSTEM) Standard Equipment:

    • Hard-anodized aluminum rail • Wide LCD Display • Stop system with 2 sliding linear carriages • Sensor with Magnetic tape (resolution 0,1 mm) • Extension to reach the blade point (2 offset points: blade point, hard-stop point) • Flexible up-down system

     Advantages of the system:

     • 100% lubricant-free • Maintenance free • Corrosion and dirty resistance • Low noise and vibration • Simple and easy assembling

    Carif DMS length (Excl. Roller units):

    • Starting length L=2300mm

      Over 2mt possibility to extend every mt: L=3300mm - 4300mm - 5300mm - 6300mm etc.
