CUTTING CAPACITIES

                                                 90º             -45º             +45º           +60º

Round profile                        220              130             150              90            (mm)

Square profile                       220              100             150              60            (mm)

Rectangular profile          260x150      120x100      150x150      90x60          (mm)

TECHNICAL DATA

- Blade rotation speed  (m/1')       33-66   (optional  15-100)

- Vice opening  (mm)       300

- Machine dimensions  (Length x Deapth x Height / mm)         640 x 1250 x 1650

- Machine weight    (Kg)        340

STANDARD FEATURES

- Sturdy carpentry structure, powder coated with smooth finish and lights

- Bow in special hardened aluminum alloy

- Patented hydraulic device for adjusting the feed and cutting pressure

- 1.1 / 1.4 KW motor - 33-66 m/1'

- Inclined cuts up to  -45 ° / +60 °. Rotation of the arc on tapered roller bearings and independent from the

  workpiece support surface

- Movable and ergonomic electric control

- Large work surfaces for a practical work surface

- Coolant tank inside the base with a capacity of 50 Liters, complete with 3ph electric pump 0,1KW

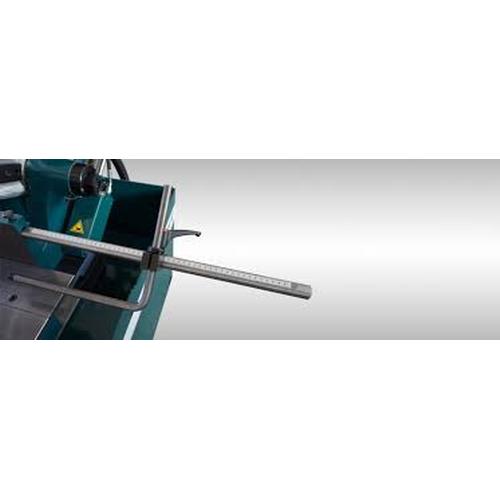

- Measuring device L=500mm with height adjustment

- Large chip container for easy cleaning

- Bimetal blade M42  mm  2450x27x0.9

- Box + pallet packaging, service keys, instruction manual and spare parts

- 12 months warranty on mechanical spare parts

BROCHURE

The model CARIF 260 BSA models is completely Hydraulic:  closure of the vice, bow feed and pressure. The CARIF hydraulic patented system has been designed with two (2) commands : BOW FEED and CUTTING PRESSURE. Thanks to this system the blade regularly descends, with a constant auto-regulation for every material type, section and thickness

Increased productivity : No operator during cutting cycle / zero stops during cycle

Always straight cut : Auto-regulation of blade-stress based on material hardness and section

Longer blade life : Slows down the bow descent without straining the blade when worn out

Easy to use : Practical, simple and ergonomic operations

Fast cutting operations : Fully hydraulic cycle. More efficiency

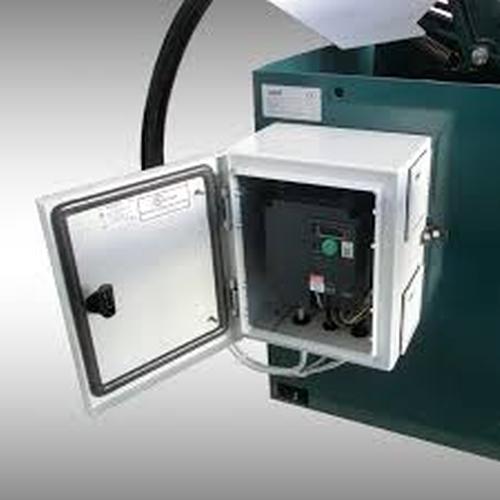

- Speed moto-variator, electr. version Kw 2,2

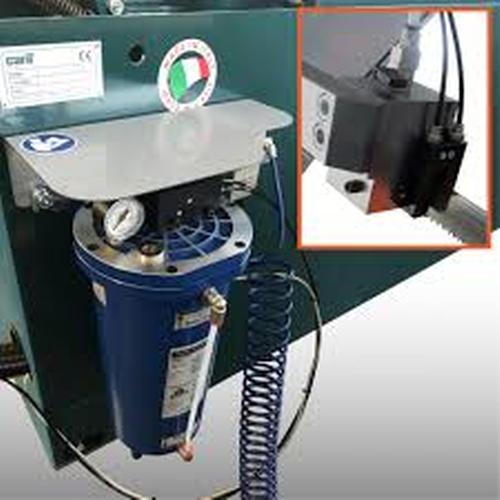

- Air/oil lubrication system (two elements), including tank of 3lt capacity

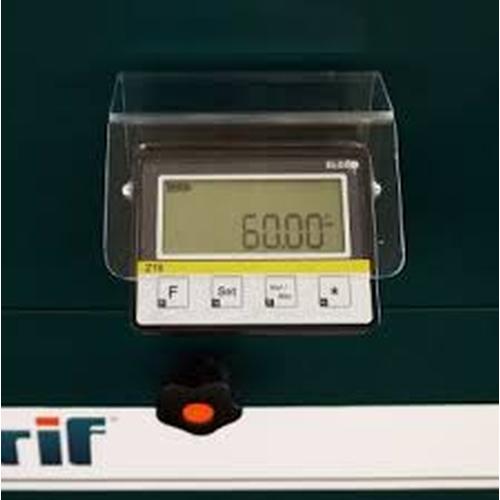

- Digital angle display

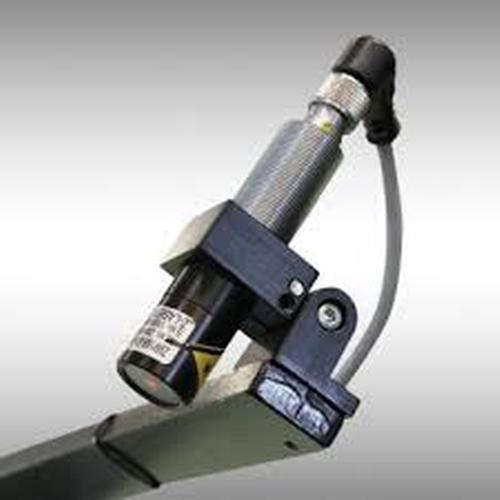

- Laser-line for positioning

- Working LED light

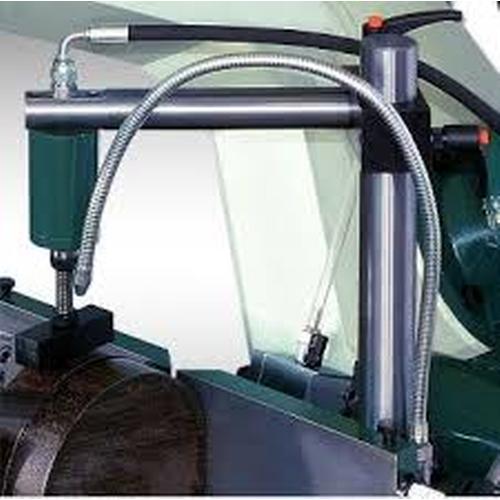

- Thickness for cutting at 90°

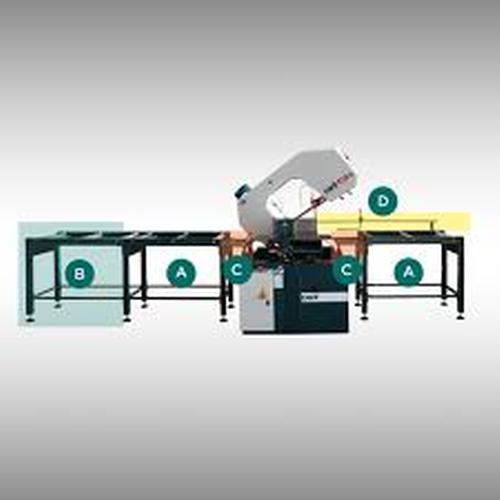

   Roller Units W400

-  Modular roller-unit type “A” : length 1m – width 400 mm – capacity 0,9 t/m

-  Modular roller-unit type “B” : length 1m – width 400 mm – capacity 0,9 t/m

-  Plan type “C” for connection roller-unit type “A” to the machine : width 400mm

   MEASURING DEVICES

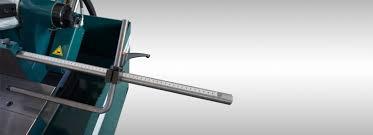

1. MEASURING DEVICE GRADUATED

    Steel rod with groove for measuring tape. Hard stop equipped with measuring index and height set.

    Length:        L=1m

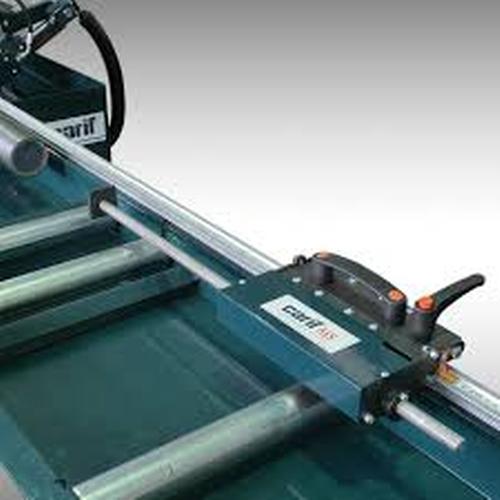

2. MANUAL MEASURING SYSTEM

    CARIF MS (Measuring System) is a modern and comfortable device to precisely and quickly adjust the right    cutting length. Practical and robust hard stop trolley assembled on n.2 linear carriages auto-lubricated for a smooth sliding on a T guide rail aluminium anodised. Possibility to lift the trolley to free the roller tables from the material. Easy to mount on every type of roller unit.

    MS (MEASURING SYSTEM WITH GRADUATED SCALE) Standard Equipment:

    • Hard-anodized aluminum rail • Stop carriage with 2 sliding trolleys • Extension to reach the blade point • Packaging with card-board box

    Advantages of the system:

    • 100% lubricant-free • High dirty resistance • Corrosion resistance • Low noise and vibration • Simple and easy assembling/disassembling • Maintenance free without lubrication

    Carif MS length (Excl. Roller units):

    • Starting length L=2mt • Over 2mt possibility to extend every mt : Length= 3mt - 4mt - 5mt - 6mt etc.

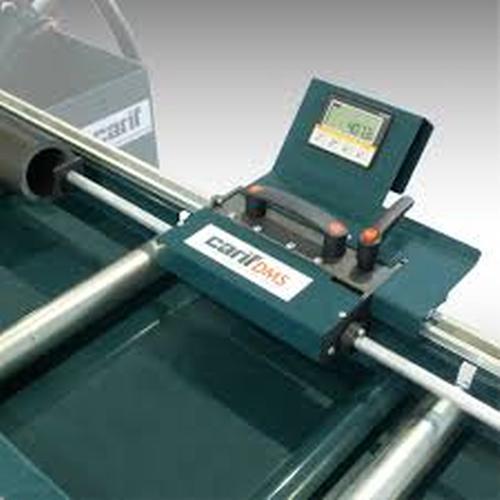

3. DIGITAL MEASURING SYSTEM

    CARIF DMS (Digital Measuring System) is a modern and comfortable device to precisely and quickly adjust the right cutting length with a wide display. CARIF DMS has been designed to be qualitative competitive, robust and of manteinance free. The system can be supplied together with CARIF roller units or it can be easily adapted on other roller types already in use.

    DMS (DIGITAL MEASURING SYSTEM) Standard Equipment:

    • Hard-anodized aluminum rail • Wide LCD Display • Stop system with 2 sliding linear carriages • Sensor with Magnetic tape (resolution 0,1 mm) • Extension to reach the blade point (2 offset points: blade point, hard-stop point) • Flexible up-down system

    Advantages of the system:

    • 100% lubricant-free • Maintenance free • Corrosion and dirty resistance • Low noise and vibration • Simple and easy assembling

    Carif DMS length (Excl. Roller units):

    • Starting length L=2300mm

      Over 2mt possibility to extend every mt: L=3300mm - 4300mm - 5300mm - 6300mm etc.
